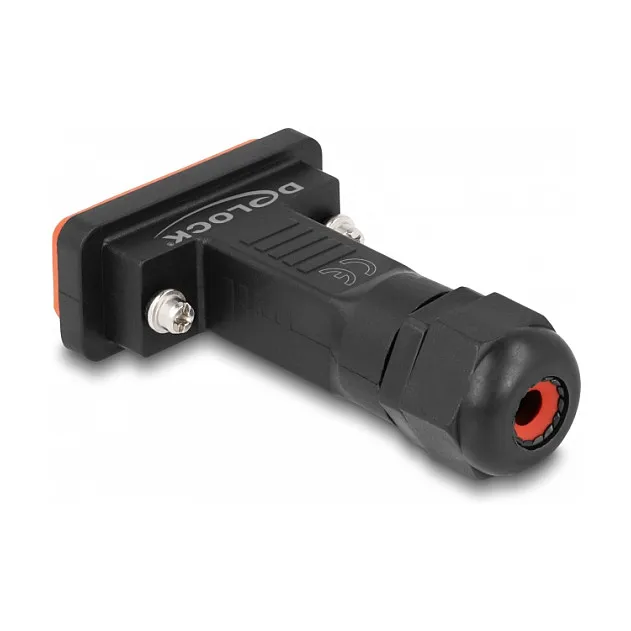

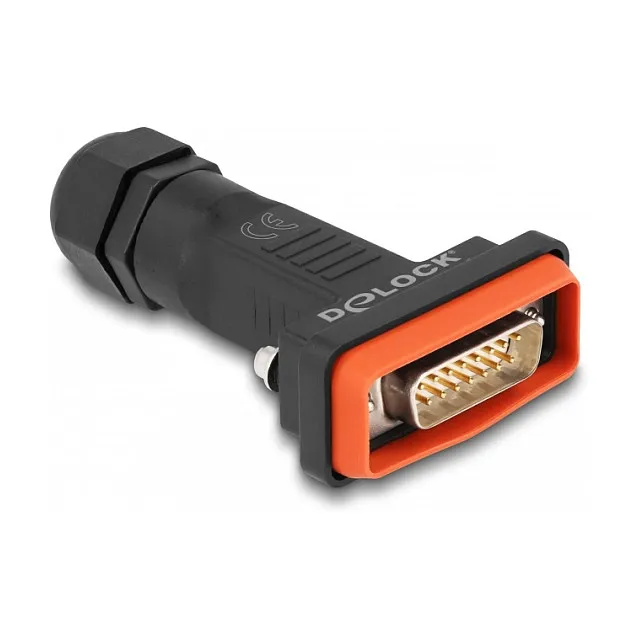

DeLOCK D-Sub 15 pin male with housing IP67 waterproof. Connector(s): D-Sub 15 pin/15 soldering pin, Product colour: Black, Orange, Connector gender: Male. Width: 80 mm, Depth: 49 mm, Height: 22 mm. Quantity per pack: 1 pc(s), Package type: Polybag
Description
This D-Sub male connector by Delock is suitable for solder assembly and can be used for cable assembly. The IP67 waterproof housing protects the cable wires from moisture and is ideal for use in switch cabinets.
This D-Sub male connector by Delock is suitable for solder assembly and can be used for cable assembly. The IP67 waterproof housing protects the cable wires from moisture and is ideal for use in switch cabinets.
Easy installation

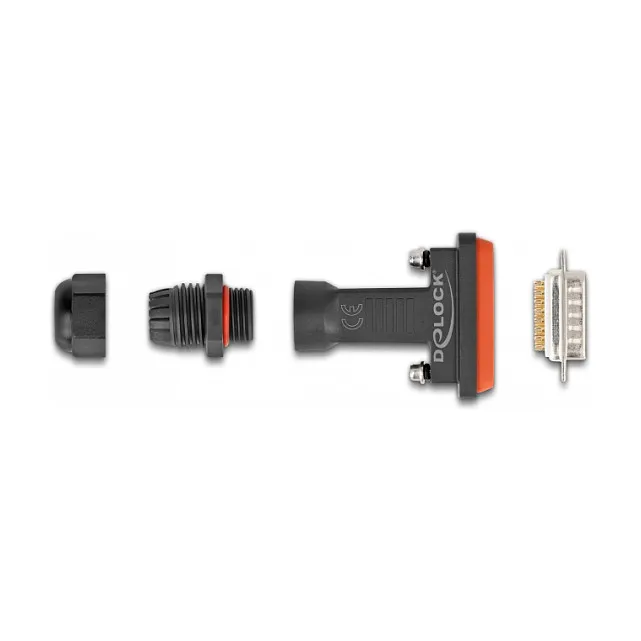

The cable wires can be fed through the housing and connected to the solder contacts of the D-Sub connector. The soldered cable wires are mounted together with the connector to the housing.
Features
Connector(s): D-Sub 15 pin/15 soldering pin
Connector gender: Male
Connector form factor: Straight
Product colour: Black, Orange
International Protection (IP) code: IP67
Operational conditions
Operating temperature (T-T): -45 – 105 °C
Weight & dimensions
Width: 80 mm
Depth: 49 mm
Height: 22 mm
Packaging data
Quantity per pack: 1 pc(s)
Package type: Polybag
Technical details
Connector 1: D-Sub 15 pin
Connector 2: 15 soldering pin
Housing material: Polyamide
Connector(s): D-Sub 15 pin/15 soldering pin
Connector gender: Male
Connector form factor: Straight
Product colour: Black, Orange
International Protection (IP) code: IP67
Operational conditions
Operating temperature (T-T): -45 – 105 °C
Weight & dimensions
Width: 80 mm
Depth: 49 mm
Height: 22 mm
Packaging data
Quantity per pack: 1 pc(s)
Package type: Polybag
Technical details
Connector 1: D-Sub 15 pin
Connector 2: 15 soldering pin
Housing material: Polyamide
