DeLOCK Media Converter 10GBase-R SFP+ to 10GBase-T RJ45. Maximum data transfer rate: 10000 Mbit/s, Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s. LED indicators: Status, Product colour: Black, Housing material: Metal. Fiber optic connector: SFP+, Connectivity technology: Wired. Input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz, Input current: 0.4 A. Width: 71 mm, Depth: 94 mm, Height: 26 mm

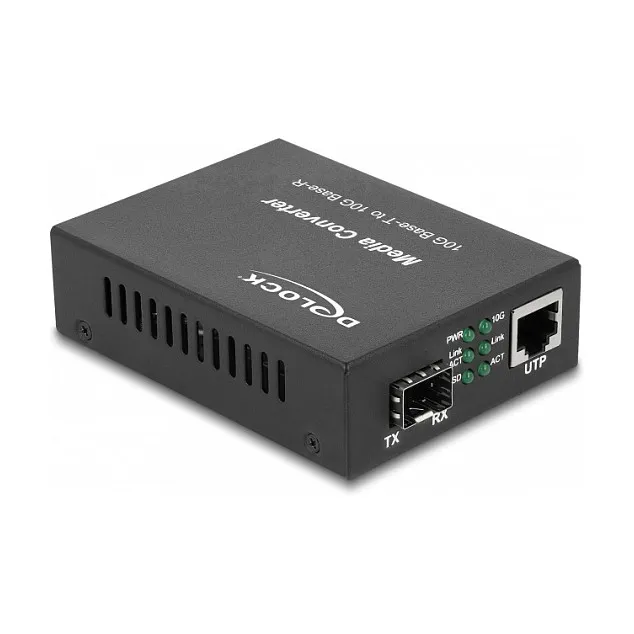

This 10 Gigabit Ethernet Media converter by Delock can be used to connect different media. In the SFP slot, various optional SFP+ modules up to 10 Gbps can be used.
NBASE-T for higher speed
The RJ45 port is equipped with NBASE-T for higher speeds. This allows for up to 10 Gbps data transfer rate with traditional networking cables. The best possible transfer rate is set automatically.
Network
Maximum data transfer rate: 10000 Mbit/s
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s
Fiber ethernet cabling technology: 10GBASE-R
Features
LED indicators: Status
Product colour: Black
Housing material: Metal
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+

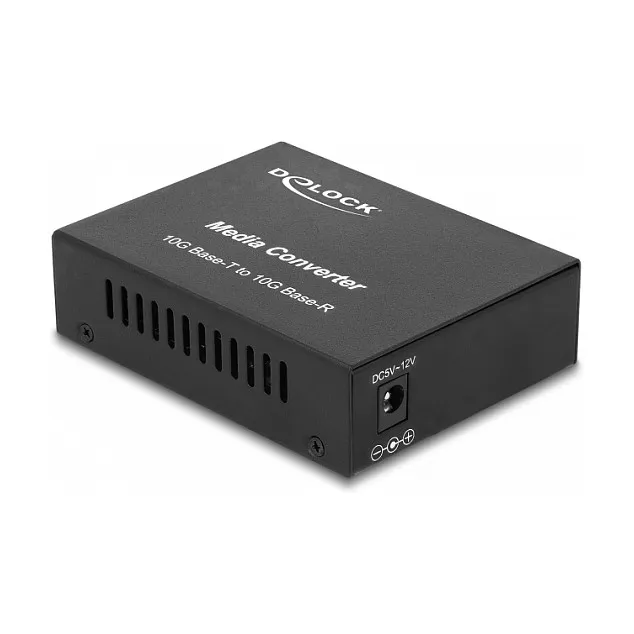

Feature: DC-in jack
Power
Input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 0.4 A
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 5 W
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Packaging content

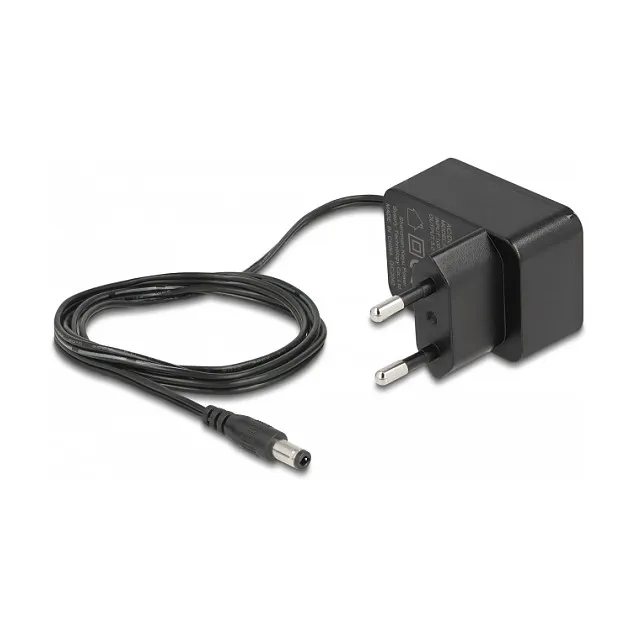

Feature: AC adapter included
Feature: Manual
Packaging data
Package type: Box
Maximum data transfer rate: 10000 Mbit/s
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s
Fiber ethernet cabling technology: 10GBASE-R
Features
LED indicators: Status
Product colour: Black
Housing material: Metal
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+
Feature: DC-in jack
Power
Input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 0.4 A
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 5 W
Weight & dimensions
Width: 71 mm
Depth: 94 mm
Height: 26 mm
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Packaging content
Feature: AC adapter included
Feature: Manual
Packaging data
Package type: Box
