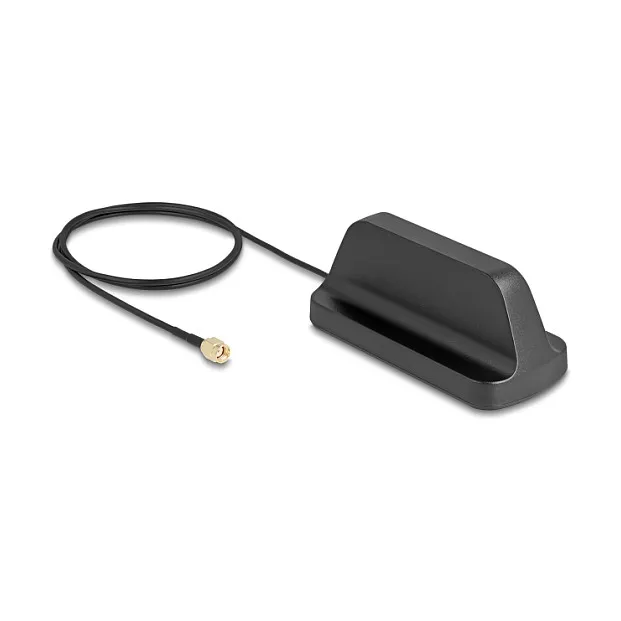

DeLOCK 81453. Antenna gain level (max): 3.6 dBi, Frequency band: 2.4 – 7.125 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Connector gender: Male. Width: 56.8 mm, Depth: 126.8 mm, Height: 52 mm. Package type: Box. Country of origin: China
This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside.
WiFi 7
WiFi 7, IEEE 802.11be, is the latest wireless standard and offers significant improvements over previous generations. It is characterised by higher speeds, lower latency and improved stability, especially in environments with many connected devices. WiFi 7 utilises the 6 GHz band for more capacity and introduces new technologies such as Multi-Link Operation (MLO) and 4K QAM. It is backwards compatible and also supports the 2.4 GHz and 5 GHz bands.
Performance
Frequency band: 2.4 – 7.125 GHz
Impedance: 50 Ω
Antenna gain level (max): 3.6 dBi
Wi-Fi standards: Wi-Fi 7 (802.11be)
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Housing material: Polycarbonate (PC)
Cable length: 1 m
Cable type: ULA100
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 56.8 mm
Depth: 126.8 mm
Height: 52 mm
Weight: 142 g
Packaging data
Package type: Box
Logistics data
Country of origin: China
Frequency band: 2.4 – 7.125 GHz
Impedance: 50 Ω
Antenna gain level (max): 3.6 dBi
Wi-Fi standards: Wi-Fi 7 (802.11be)
Features
Antenna type: Omni-directional antenna
Antenna connector type: RP-SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Housing material: Polycarbonate (PC)
Cable length: 1 m
Cable type: ULA100
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 56.8 mm
Depth: 126.8 mm
Height: 52 mm
Weight: 142 g
Packaging data
Package type: Box
Logistics data
Country of origin: China
