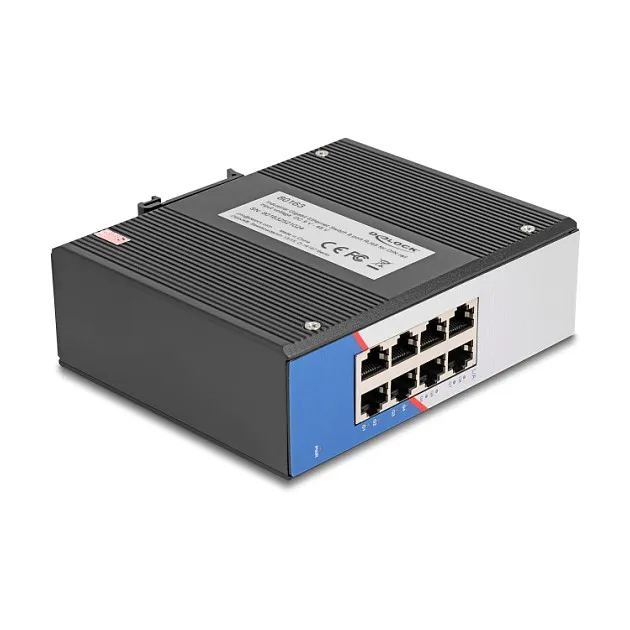

DeLOCK 80163. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Power connector: Terminal block (5-pin). Form factor: DIN rail
This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components.
Redundant power supply with 9 V to 48 V
The switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

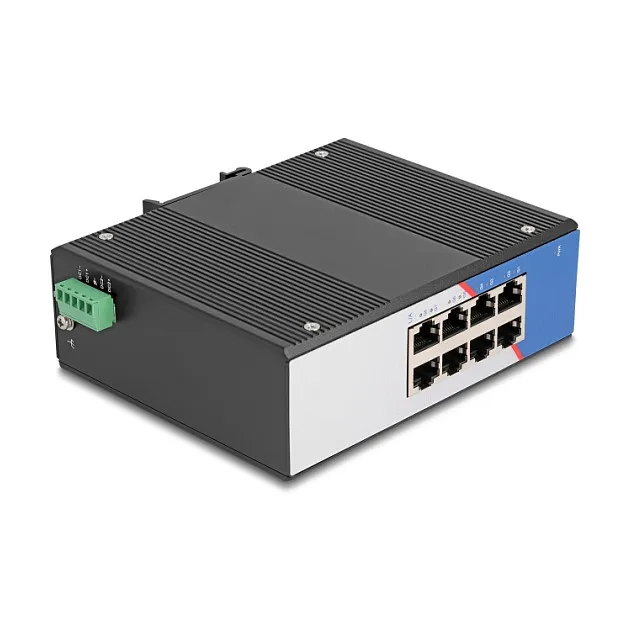

Power connector: Terminal block (5-pin)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T
Ethernet LAN data rates: 10,100,1000 Mbit/s
Design
Form factor: DIN rail
Product colour: Black
Housing material: Metal
LED indicators: Status
International Protection (IP) code: IP40

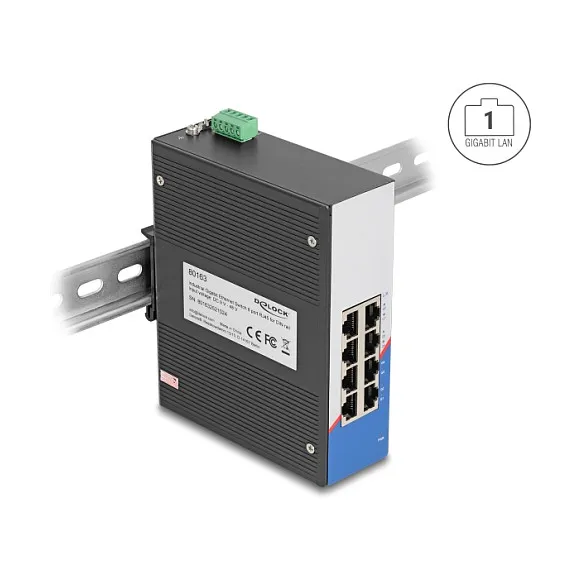

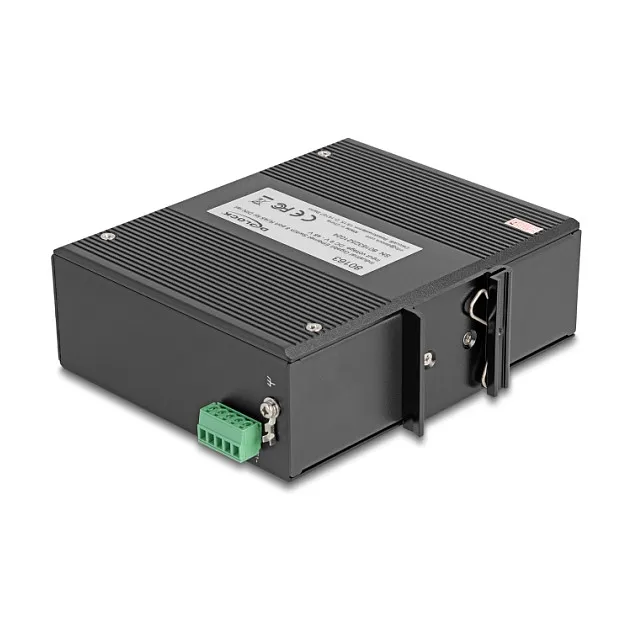

Feature: DIN rail mounting
Performance
Feature: Fanless
Power
Power source: DC
Input voltage: 9 – 48 V
Power consumption (max): 4 W
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 142 mm
Depth: 48 mm
Height: 116 mm
Packaging content
Feature: Manual
Packaging data
Package type: Box
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC)
Certification: IEC61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32
Logistics data
Country of origin: China
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: Terminal block (5-pin)
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T
Ethernet LAN data rates: 10,100,1000 Mbit/s
Design
Form factor: DIN rail
Product colour: Black
Housing material: Metal
LED indicators: Status
International Protection (IP) code: IP40
Feature: DIN rail mounting
Performance
Feature: Fanless
Power
Power source: DC
Input voltage: 9 – 48 V
Power consumption (max): 4 W
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 142 mm
Depth: 48 mm
Height: 116 mm
Packaging content
Feature: Manual
Packaging data
Package type: Box
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC)
Certification: IEC61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32
Logistics data
Country of origin: China
