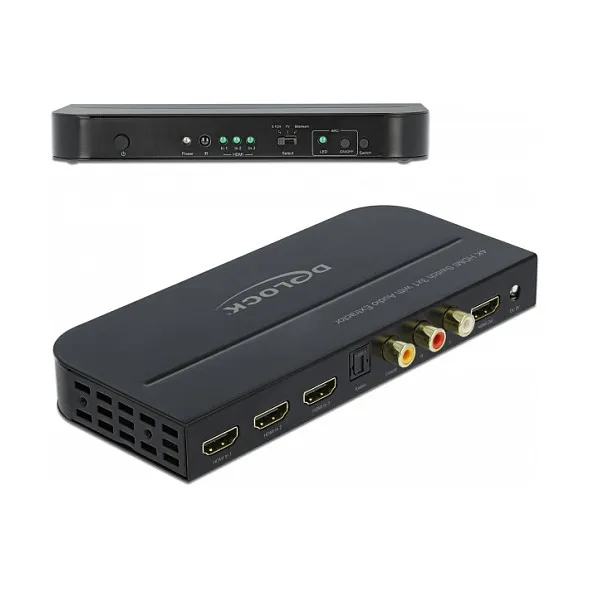

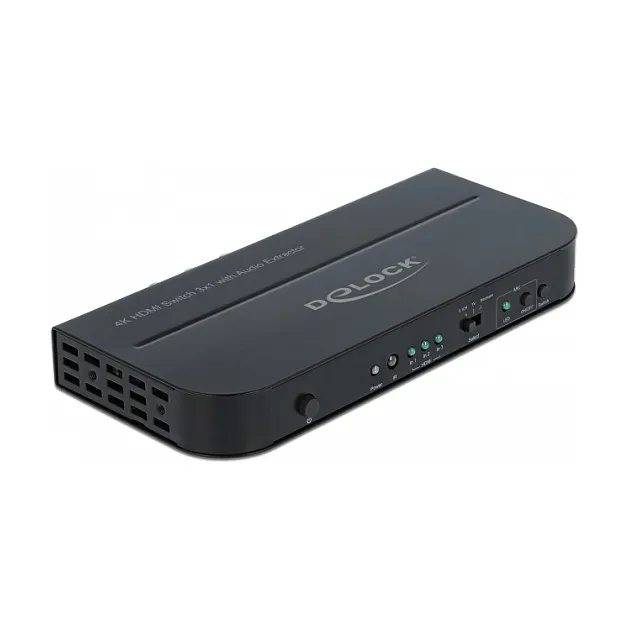

DeLOCK HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with Audio Extractor. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 100-240 V, AC adapter frequency: 50-60 Hz, AC adapter input current: 0.3 A. Width: 75 mm, Depth: 168 mm, Height: 21 mm. Quantity per pack: 1 pc(s), Cables included: USB
Audio extractor
This function can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Audio Return Channel (ARC)
ARC can be enabled at the push of a button on the device or the remote control. Then the audio signal of the connected TV device is routed to the S/PDIF connectors of the switch.

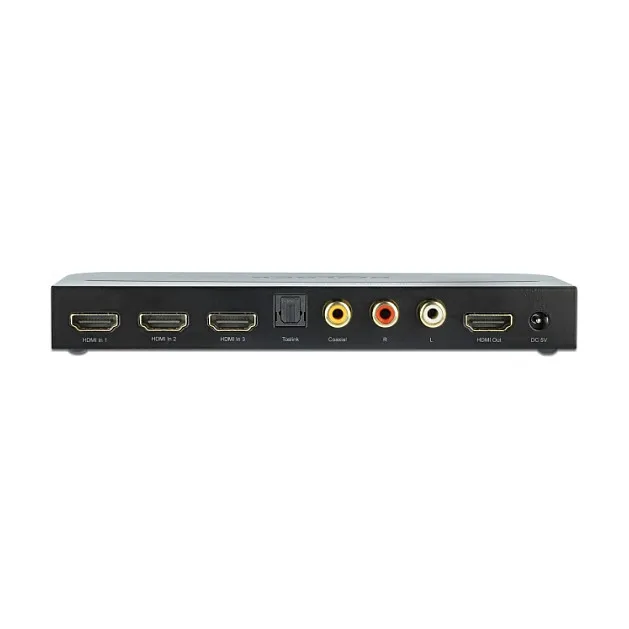

Video port type: HDMI
HDMI ports quantity: 4
HDMI in: 3
Number of HDMI outputs: 1
Digital audio coaxial out: 1
Feature: S/PDIF out port
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack
Features
Material: Metal
Product colour: Black
Feature: HDCP
Maximum refresh rate: 60 Hz
Bandwidth: 18 Gbit/s
LED indicators: Yes
Bandwidth: 600 MHz
Maximum resolution: 3840 x 2160 pixels
Cable length: 0.5 m
Feature: 3D
HD type: 4K Ultra HD
Power
AC input voltage: 100-240 V
AC adapter frequency: 50-60 Hz
AC adapter input current: 0.3 A
AC adapter output voltage: 5 V
AC adapter output current: 1 A
Power consumption (max): 5 W
Weight & dimensions
Width: 75 mm
Depth: 168 mm
Height: 21 mm

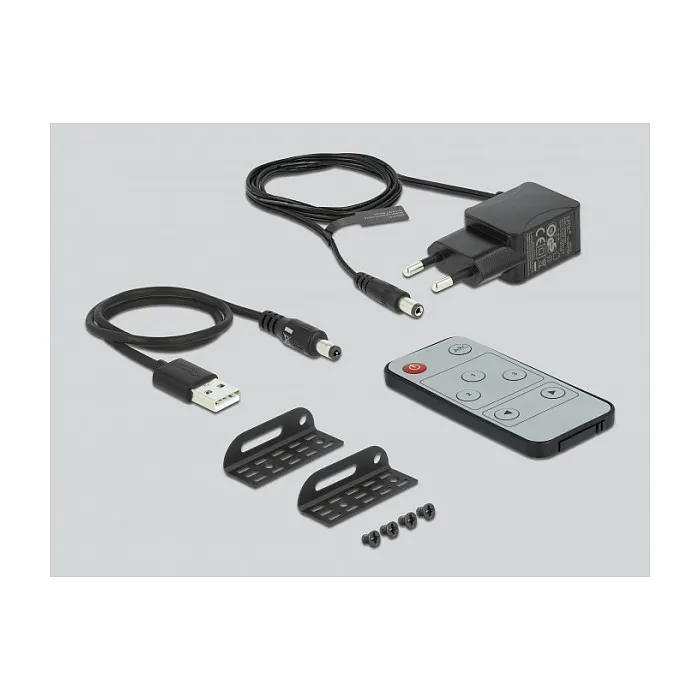

Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Remote control included
Feature: Manual
Cables included: USB
Feature: AC adapter included
Logistics data
Country of origin: China
