DeLOCK PCI Express Card to 4 x Serial RS-232. Host interface: PCIe, Output interface: RS-232, VGA, Host interface gender: Female. Product colour: Black, Country of origin: China. Data transfer rate (max): 0.0009216 Gbit/s, FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, 9. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8.1, Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 80 mm, Depth: 69 mm, Height: 15 mm

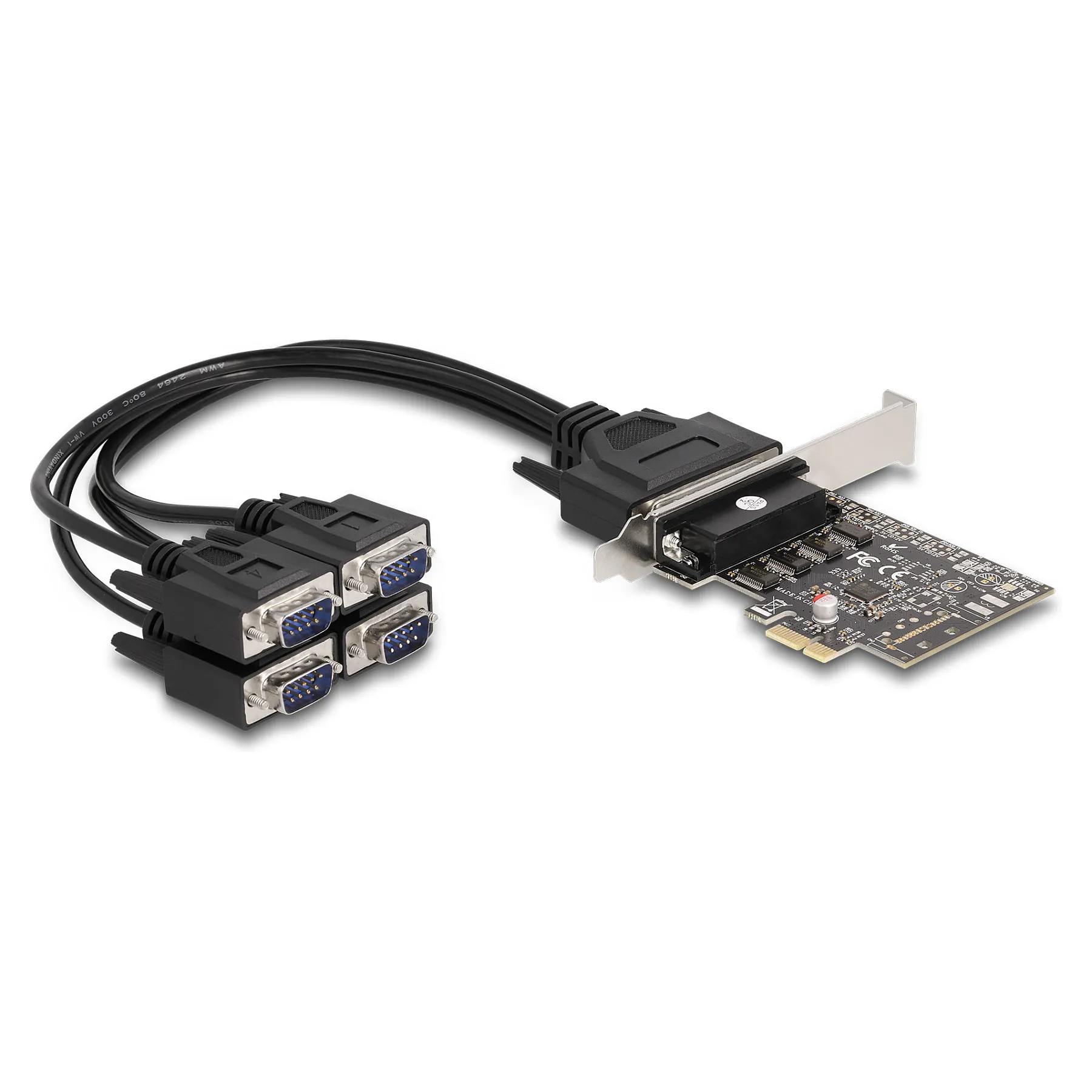

Fan-out cable
The fan-out cable provides flexibility at the RS-232 ports and simplifies the handling of computers, machines, facilities etc.

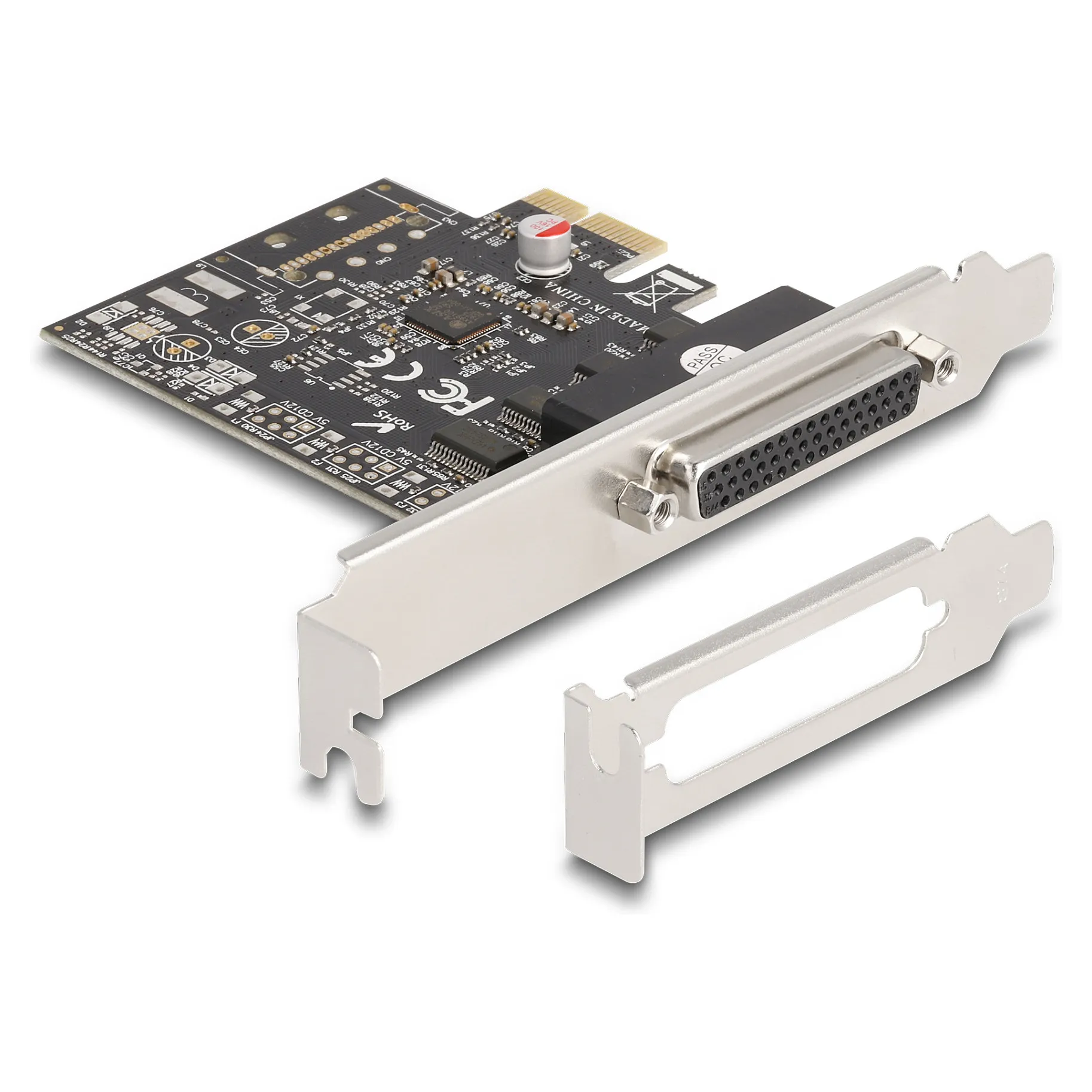

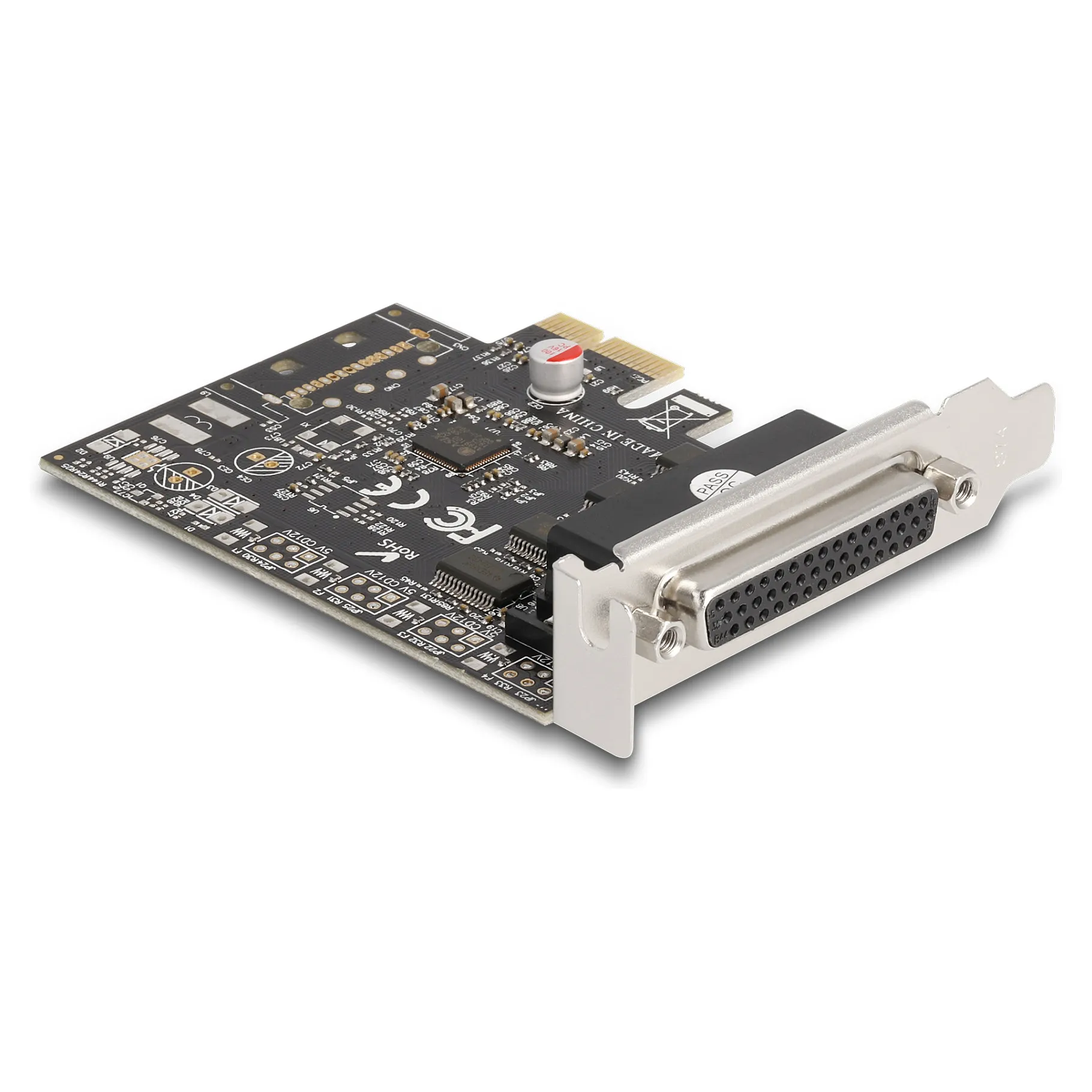

Low Profile Form Factor
The included low profile bracket enables the additional installation of the PCI Express card in industrial computers and 19″ housings.
Host interface: PCIe
Host interface gender: Female
Output interface: RS-232, VGA
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 2.0
Serial ports quantity: 4
Serial interface type: RS-232
Design
Feature: Internal
Product colour: Black
Country of origin: China
Features
Data transfer rate (max): 0.0009216 Gbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Feature: Flow control support
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: No, RTS/CTS, XON/XOFF
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Operating relative humidity (H-H): 0 – 90%
System requirements
Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8.1
Server operating systems supported: Windows Server 2016, Windows Server 2019
Weight & dimensions
Width: 80 mm
Depth: 69 mm
Height: 15 mm
Packaging data
Quantity per pack: 1 pc(s)
Cables included: RS-232
Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
