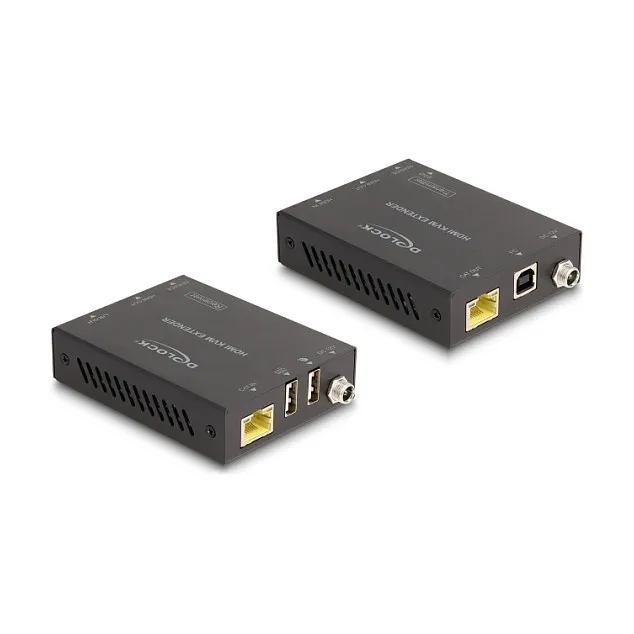

DeLOCK 65957. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 70 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz, Input current: 0.3 A. Bandwidth: 600 MHz, Bandwidth: 18 Gbit/s
HDMI loop output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.
KVM function
A USB keyboard and mouse can be connected to the receiver in order to send the signals to a computer connected to the transmitter.
Power over Cable (PoC)
The set supports Power over Cable (PoC), so only one device requires a power supply. The other device is powered via the network cable and can therefore be used more flexible.
Screwable DC connection
The power supply with screwable connector ensures a secure and reliable connection – perfect for professional installations to avoid accidental disconnection.
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 70 m
Cable types supported: Cat6, Cat6a
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black
Material: Metal
Transmitter
Transmitter video port type: HDMI
Feature: Transmitter local video port
Transmitter local video port type: HDMI
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Transmitter USB Type-B ports quantity: 1
Receiver
Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver USB Type-A ports quantity: 2
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 0.3 A
AC adapter output voltage: 12 V
AC adapter output current: 1 A
Feature: DC-in jack
Packaging content

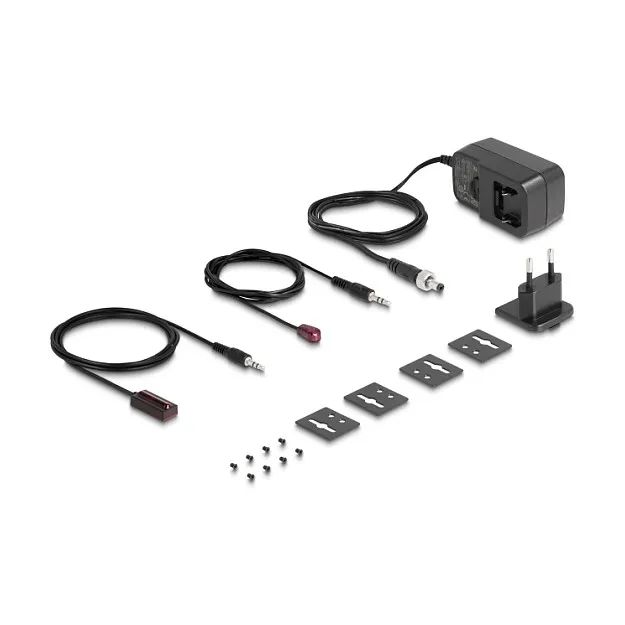

Feature: AC adapter included
Feature: Manual
Other features
Feature: HDCP
Feature: Extended display identification data (EDID)
Bandwidth: 600 MHz
Bandwidth: 18 Gbit/s
Logistics data
Country of origin: China
