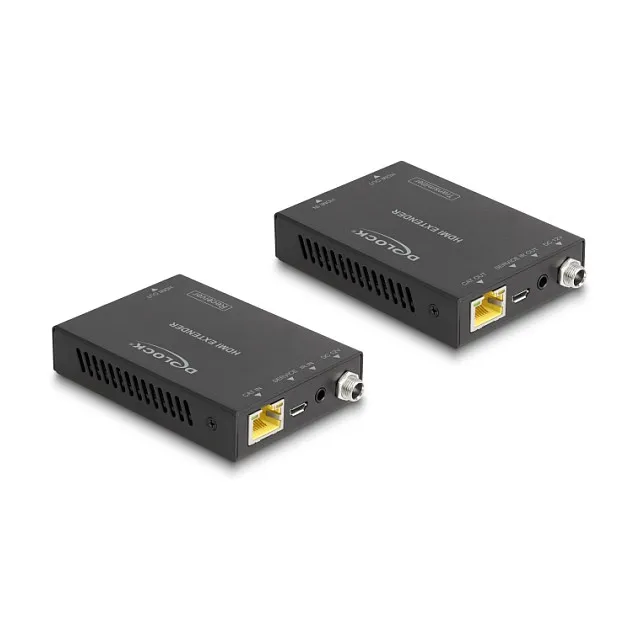

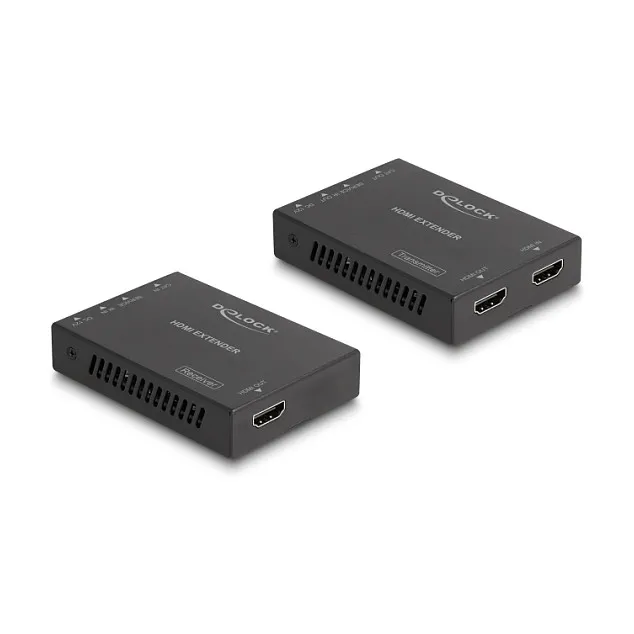

DeLOCK 65955. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat6a. Connectivity technology: Wired, USB connector type: Micro-USB B. Power source type: AC, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Width: 61 mm, Depth: 88 mm, Height: 18 mm. Quantity per pack: 2 pc(s), Package type: Box
HDMI loop output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.
Infrared remote control
The included IR transmitter and receiver can be connected to the devices to transmit infrared signals via the cable.
Power over Cable (PoC)
The set supports Power over Cable (PoC), so only one device requires a power supply. The other device is powered via the network cable and can therefore be used more flexible.
Screwable DC connection
The power supply with screwable connector ensures a secure and reliable connection – perfect for professional installations to avoid accidental disconnection.
Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6, Cat6a
Maximum transfer distance: 70 m
Feature: High Dynamic Range (HDR) supported
Maximum refresh rate: 60 Hz
Feature: Extended display identification data (EDID)
Bandwidth: 18 Gbit/s
Bandwidth: 600 MHz
Feature: HDCP
Material: Metal
Feature: Wall mountable
Product colour: Black
Ports & interfaces
Connectivity technology: Wired
Feature: Ethernet LAN
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
USB ports quantity: 1
USB connector type: Micro-USB B
Feature: 3.5 mm (1/8-inch) in
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack
Power
Power source type: AC
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 0.3 A
Output current: 1 A
Feature: External power adapter
Weight & dimensions
Width: 61 mm
Depth: 88 mm
Height: 18 mm
Packaging data
Quantity per pack: 2 pc(s)
Package type: Box

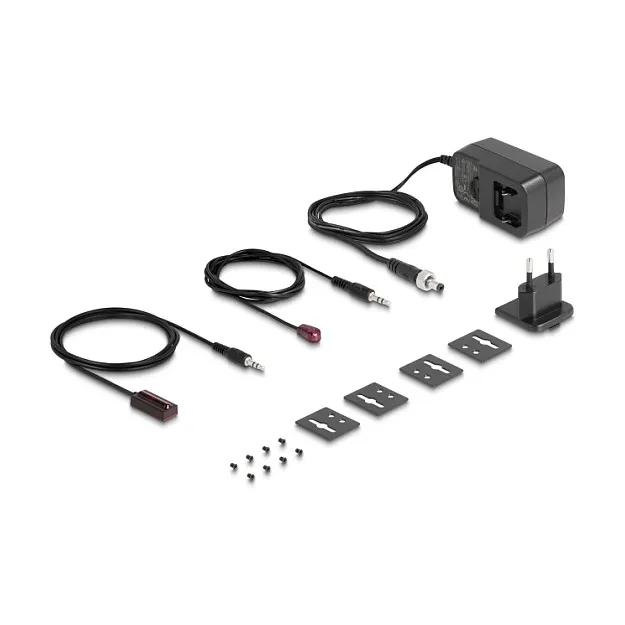

Packaging content
Feature: AC adapter included
Feature: IR extender included
Feature: IR emitter included
Feature: Manual
Feature: Mounting brackets included
Technical details
Country of origin: China
