DeLOCK 64265. Width: 50 mm, Depth: 84.6 mm, Height: 23 mm. Housing material: Metal. Package type: Box. Country of origin: China

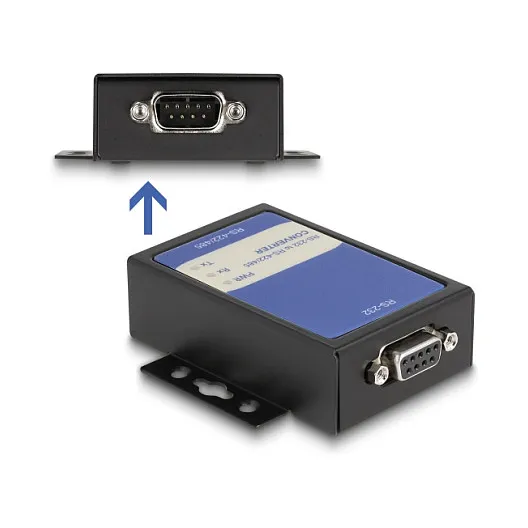

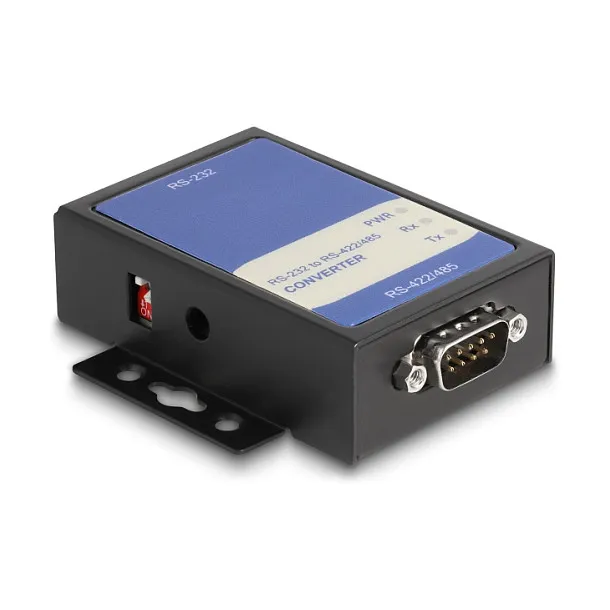

The RS-232 to RS-422/485 converter by Delock transmits data between devices with standard RS-232 or RS-422/485 connection and is suitable for fieldbus systems. With its robust metal housing, the converter offers various mounting options and protects against interference from electrostatic discharges (ESD).
Terminating resistors
Internal terminating resistors can be switched on or off with pin headers.
Option RS-232 Extender
Two RS-232 to RS-422/485 converters can be connected directly to each other and thus offer a range of up to 1200 m as an RS-232 extension.
Technical details
Host interface: RS-232
Output interface: RS-422/485
Connector gender: Male/Female
Switch type: Auto
Electrostatic Discharge (ESD) protection: 15 kV
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 60 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 50 mm
Depth: 84.6 mm
Height: 23 mm
Material
Housing material: Metal
Indication
LED indicators: Yes
Packaging content
Package type: Box

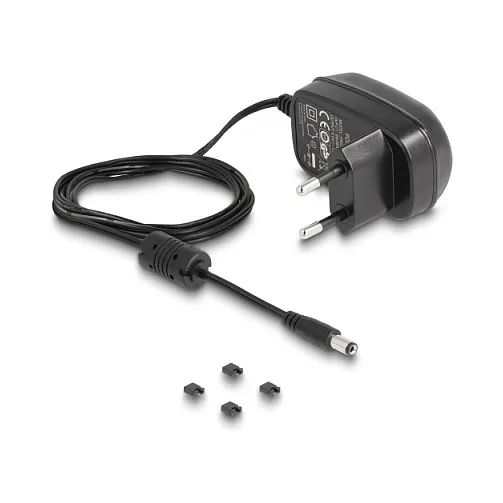

Feature: AC adapter included
Packaging data
Feature: Manual
Logistics data
Country of origin: China
