DeLOCK 4 Port USB 2.0 Isolator Hub with 5 kV Isolation for data lines. Width: 73 mm, Depth: 90 mm, Height: 31 mm. Operating voltage: 5 V. Housing material: Metal. LED indicators: Power. Package type: Box

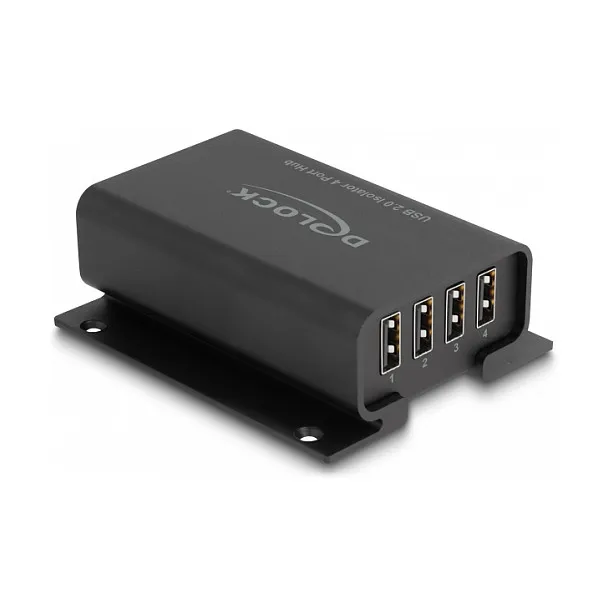

The USB hub isolator by Delock expands the host by four USB Type-A ports and separates the electrical connection of the data lines between Host-PC and USB devices. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low-, Full and High-Speed.
Converter for voltage supply
A DC to DC converter inside the USB isolator allows the separation between host and device of the USB power lines.
Sturdy metal housing
The sturdy metal housing has four holes for mounting e.g. to machines and is therefore also suitable for industrial applications.
Secure stand
The rubber pads on the bottom prevent the hub from slipping when, e.g. a USB stick or USB cable is plugged in.
Technical details
Host interface: USB 2.0
Output interface: USB 2.0
Connector 1: USB Type-B
Connector 2: USB Type-A
Connector gender: Female/Female
Isolation: 5 kV
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 0 – 60 °C
Weight & dimensions
Width: 73 mm
Depth: 90 mm
Height: 31 mm
Power
Operating voltage: 5 V
Material
Housing material: Metal
Indication
LED indicators: Power
Packaging content
Package type: Box
Packaging data
Feature: Manual
Host interface: USB 2.0
Output interface: USB 2.0
Connector 1: USB Type-B
Connector 2: USB Type-A
Connector gender: Female/Female
Isolation: 5 kV
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 0 – 60 °C
Weight & dimensions
Width: 73 mm
Depth: 90 mm
Height: 31 mm
Power
Operating voltage: 5 V
Material
Housing material: Metal
Indication
LED indicators: Power
Packaging content
Package type: Box
Packaging data
Feature: Manual
