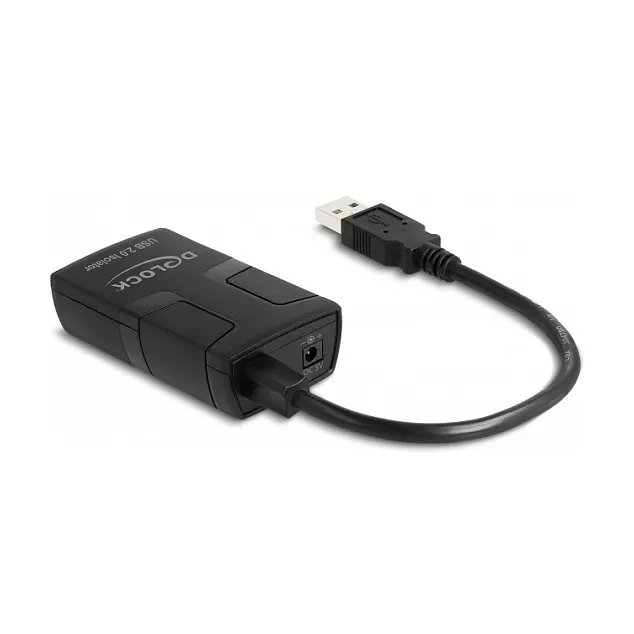

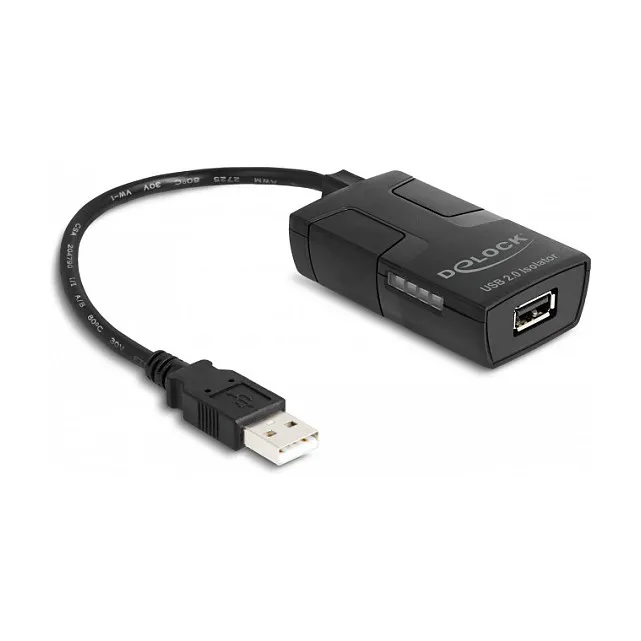

DeLOCK Isolator USB 2.0 Type-A male to female with 5 kV Isolation for data lines. Width: 39 mm, Depth: 66 mm, Height: 20 mm. Input voltage: 5 V. Housing material: Plastic. Package type: Box
The USB isolator by Delock separates the electrical connection of the data lines between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low-, Full and High-Speed.
Converter for voltage supply
A DC to DC converter inside the USB isolator allows the separation between host and device of the USB power lines.
Technical details
Host interface: USB 2.0
Output interface: USB 2.0
Connector 1: USB Type-A
Connector 2: USB Type-A
Connector gender: Male/Female
Isolation: 5 kV
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 0 – 60 °C
Weight & dimensions
Width: 39 mm
Depth: 66 mm
Height: 20 mm
Power
Input voltage: 5 V
Material
Housing material: Plastic
Packaging content
Package type: Box
Packaging data
Feature: Manual
Host interface: USB 2.0
Output interface: USB 2.0
Connector 1: USB Type-A
Connector 2: USB Type-A
Connector gender: Male/Female
Isolation: 5 kV
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 0 – 60 °C
Weight & dimensions
Width: 39 mm
Depth: 66 mm
Height: 20 mm
Power
Input voltage: 5 V
Material
Housing material: Plastic
Packaging content
Package type: Box
Packaging data
Feature: Manual
