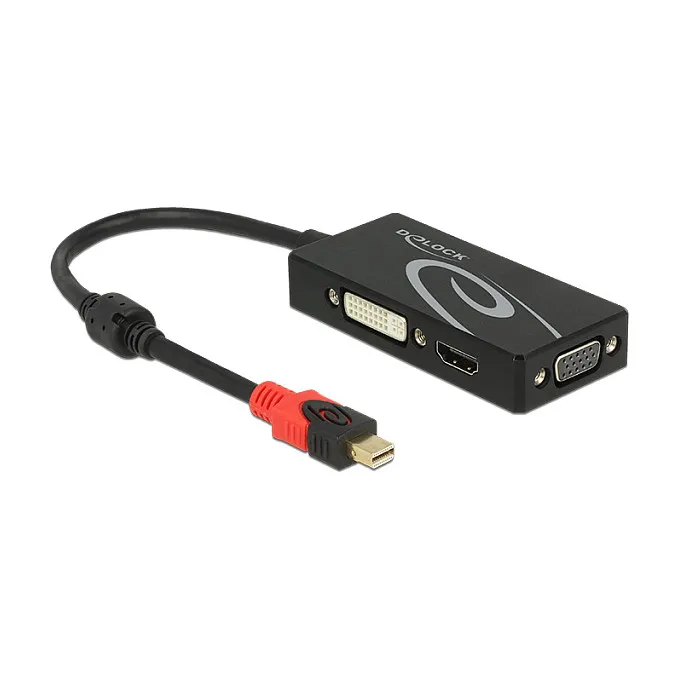

DeLOCK 62855 laptop dock/port replicator

With this mini Displayport adapter by Delock, the system can be extended by a VGA, HDMI or DVI interface and various devices such as TV, beamer, monitor etc. can be connected. Only one monitor can be used on the adapter.

Connectors
– 1 x mini Displayport 20 pin male >
– 1 x VGA 15 pin female
– 1 x HDMI-A 19 pin female
– 1 x DVI-D (Single Link) 24+1 female

– Chipset: 2 x Parade PS8339 (HDMI + DVI), 1 x Analogix ANX9833 (VGA)
– Displayport 1.2 and High Speed HDMI with Ethernet (HEC) specification
– DVI-D (Single Link) 24+1 port with nuts (VGA not wired)
– Passive converter (level shifter), suitable only for graphics cards with DP++ output
– Only 1 monitor to the adapter available
– Audio signal is transmitted only over HDMI

HDMI / DVI
– Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected hardware)
– Supports 3D displays (1080p @ 60 Hz)

VGA specification
– Resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and the connected hardware)
– 1 x ferrite core
– Cable length without connectors: ca. 20 cm
– Colour: black
– OS independent, no driver installation necessary
