DeLOCK 12722. Antenna gain level (max): 4.5 dBi, Frequency band: 0.868 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Female. Width: 33 mm, Depth: 33 mm, Height: 210 mm

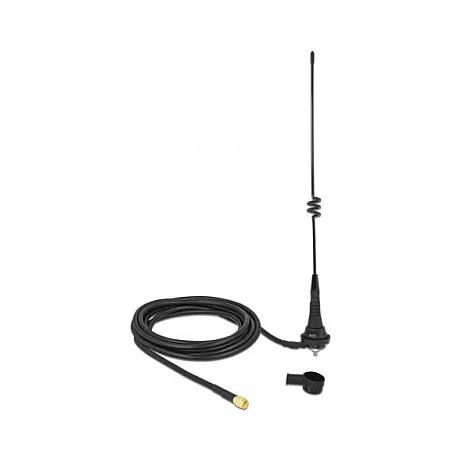

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.
LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.
Performance
Frequency band: 0.868 GHz
Impedance: 50 Ω
Antenna gain level (max): 4.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: Black
Power handling: 100 W
Cable length: 2.5 m
Cable type: RG-58 C/U
Purpose: Indoor & outdoor
Operational conditions
Operating temperature (T-T): -50 – 70 °C
Weight & dimensions
Width: 33 mm
Depth: 33 mm
Height: 210 mm
Frequency band: 0.868 GHz
Impedance: 50 Ω
Antenna gain level (max): 4.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: Black
Power handling: 100 W
Cable length: 2.5 m
Cable type: RG-58 C/U
Purpose: Indoor & outdoor
Operational conditions
Operating temperature (T-T): -50 – 70 °C
Weight & dimensions
Width: 33 mm
Depth: 33 mm
Height: 210 mm
