DeLOCK 12717. Antenna gain level (max): 28 dBi, Frequency band: 1.57542 GHz, 1.71 – 2.7, 0.698 – 0.96, 1.598 – 1.610, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Female. Weight: 1.2 kg

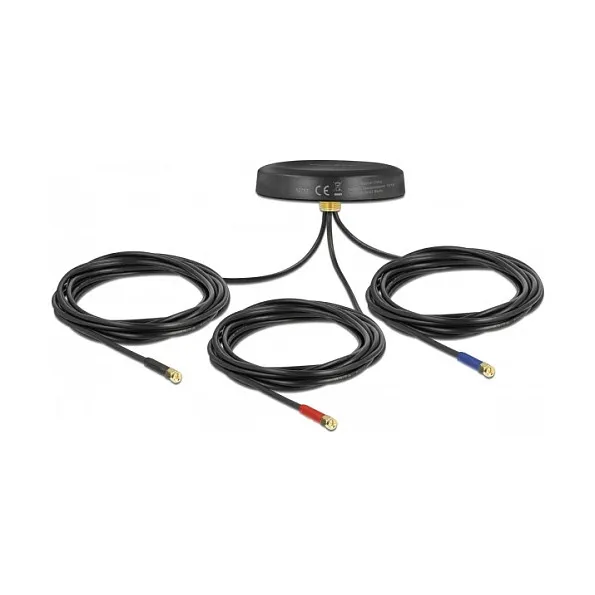

This multiband antenna by Delock has three physically separated transmitting and receiving units. Two PIFA antennas, respectively, for LTE and GSM / UMTS are responsible for sending and receiving in these areas. The GNSS patch antenna receives the signals of the Global Navigation Satellite Systems GNSS.
Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof, shock resistant and can be used in the extended temperature range.
Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof, shock resistant and can be used in the extended temperature range.
Performance
Frequency band: 1.57542 GHz, 1.71 – 2.7, 0.698 – 0.96, 1.598 – 1.610
Impedance: 50 Ω
Antenna gain level (max): 28 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2.5
Product colour: Black
International Protection (IP) code: IP67
Power handling: 5 W
Cable length: 3 m
Cable type: RG-174
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Weight & dimensions
Weight: 1.2 kg
Frequency band: 1.57542 GHz, 1.71 – 2.7, 0.698 – 0.96, 1.598 – 1.610
Impedance: 50 Ω
Antenna gain level (max): 28 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2.5
Product colour: Black
International Protection (IP) code: IP67
Power handling: 5 W
Cable length: 3 m
Cable type: RG-174
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Weight & dimensions
Weight: 1.2 kg
