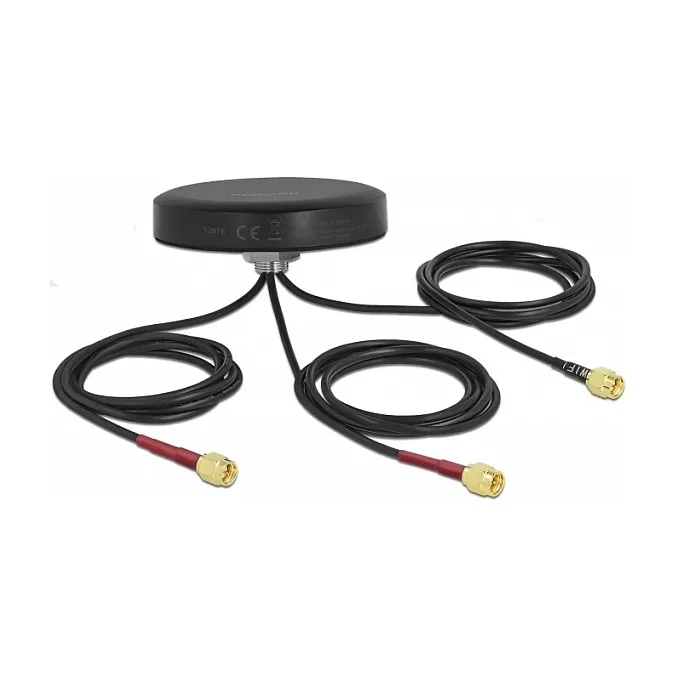

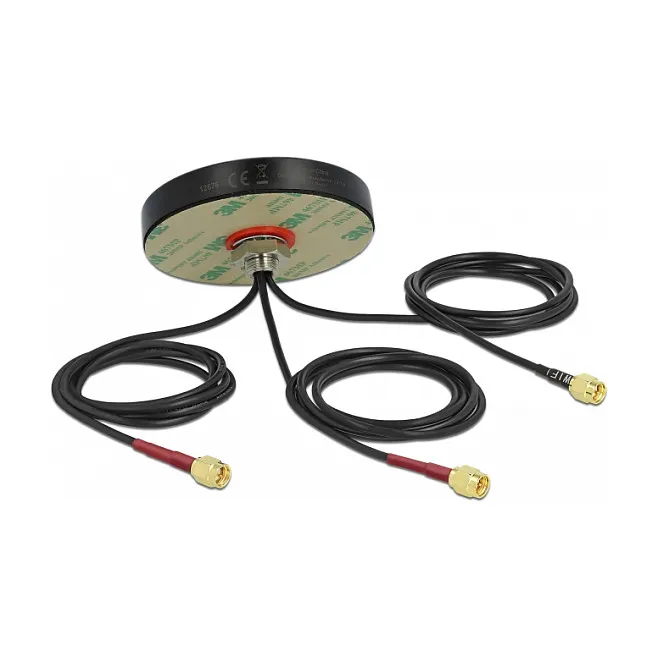

DeLOCK 12676. Antenna gain level (max): 3 dBi, Frequency band: 0.698-0.96; 1.71-2.69; 2.4-2.483; 4.9-5.825 GHz, Impedance: 50 Ω. Antenna connector type: SMA, Polarization: Linear polarization, Voltage Standing Wave Ratio (VSWR): 2.0/3.0. Height: 16.3 mm, Diameter: 8.13 cm. Package type: Box. Quantity per pack: 1 pc(s)
This antenna by Delock allows the usage of different LTE and WLAN bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, Dual Band WLAN, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz.
Performance
Frequency band: 0.698-0.96; 1.71-2.69; 2.4-2.483; 4.9-5.825 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna connector type: SMA
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2.0/3.0
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Cable length: 1 m
Cable type: RG-174
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Height: 16.3 mm
Diameter: 8.13 cm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Country of origin: China
Frequency band: 0.698-0.96; 1.71-2.69; 2.4-2.483; 4.9-5.825 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna connector type: SMA
Polarization: Linear polarization
Voltage Standing Wave Ratio (VSWR): 2.0/3.0
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP67
Cable length: 1 m
Cable type: RG-174
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Height: 16.3 mm
Diameter: 8.13 cm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Country of origin: China
