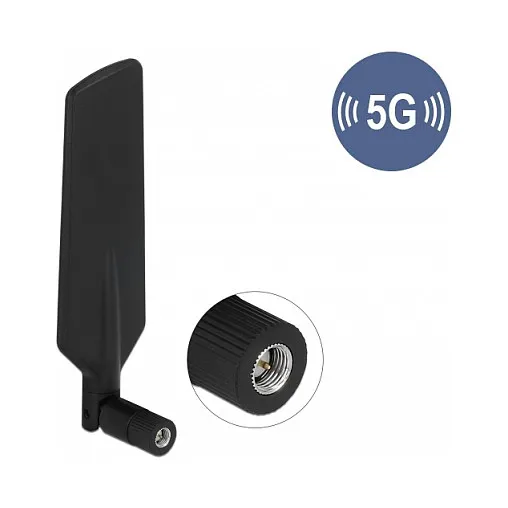

DeLOCK 12606. Antenna gain level (max): 3 dBi, Frequency band: 0.698 – 0.791, 0.824 – 0.96, 1.42 – 1.52, 1.75 – 2.17, 2.45 – 2.65, 3.48 – 4.2, 4.4 – 4.9 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Female. Width: 33.2 mm, Depth: 6.17 mm, Height: 156.2 mm. Package type: Box. Quantity per pack: 1 pc(s)
This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
Performance
Frequency band: 0.698 – 0.791, 0.824 – 0.96, 1.42 – 1.52, 1.75 – 2.17, 2.45 – 2.65, 3.48 – 4.2, 4.4 – 4.9 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3 – 5
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 33.2 mm
Depth: 6.17 mm
Height: 156.2 mm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Frequency band: 0.698 – 0.791, 0.824 – 0.96, 1.42 – 1.52, 1.75 – 2.17, 2.45 – 2.65, 3.48 – 4.2, 4.4 – 4.9 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Female
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3 – 5
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 33.2 mm
Depth: 6.17 mm
Height: 156.2 mm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
