DeLOCK 12590. Antenna gain level (max): 3 dBi, Frequency band: 0.698-.96; 1.71-2.17; 2.5-2.7; 3.4-3.8 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Polarization: Linear, vertical. Width: 110 mm, Depth: 77 mm. Package type: Box. Quantity per pack: 1 pc(s)

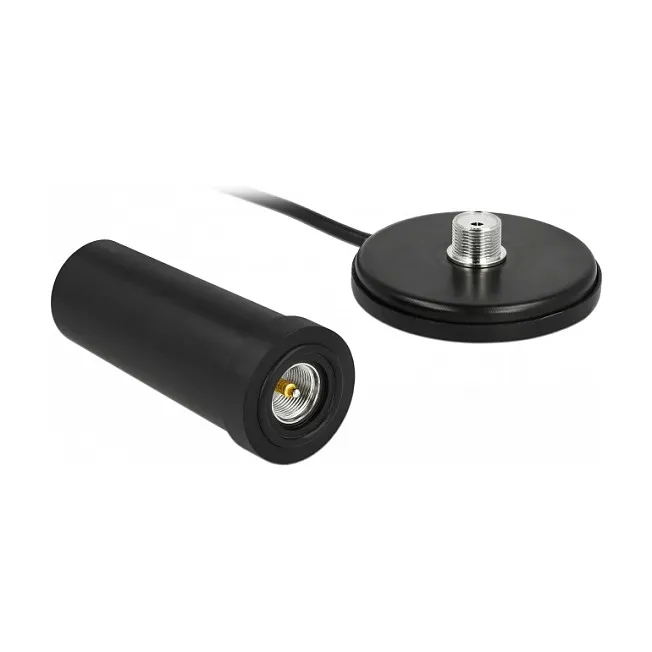

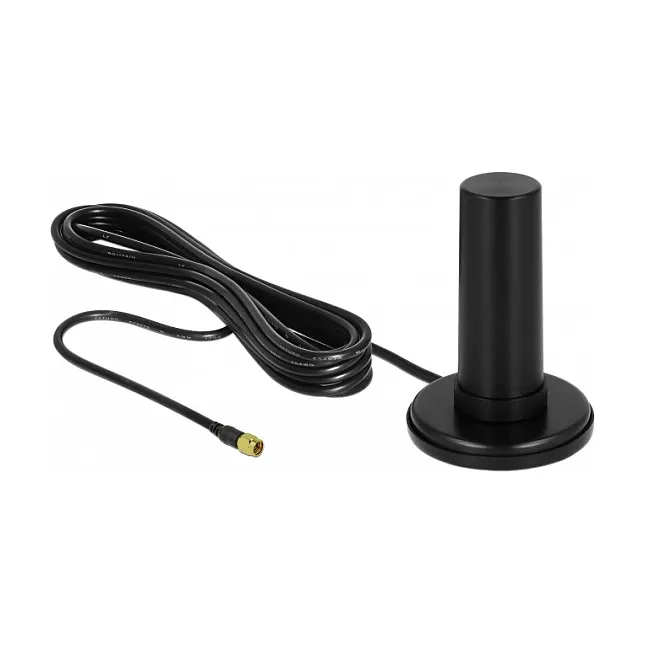

This antenna by Delock allows the usage of different 5G and LTE bands indoors and outdoors.
Performance
Frequency band: 0.698-.96; 1.71-2.17; 2.5-2.7; 3.4-3.8 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Polarization: Linear, vertical
Voltage Standing Wave Ratio (VSWR): 2.0
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IPX5
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Weight & dimensions
Width: 110 mm
Depth: 77 mm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Country of origin: China
Frequency band: 0.698-.96; 1.71-2.17; 2.5-2.7; 3.4-3.8 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Polarization: Linear, vertical
Voltage Standing Wave Ratio (VSWR): 2.0
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IPX5
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Weight & dimensions
Width: 110 mm
Depth: 77 mm
Packaging data
Package type: Box
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Country of origin: China
