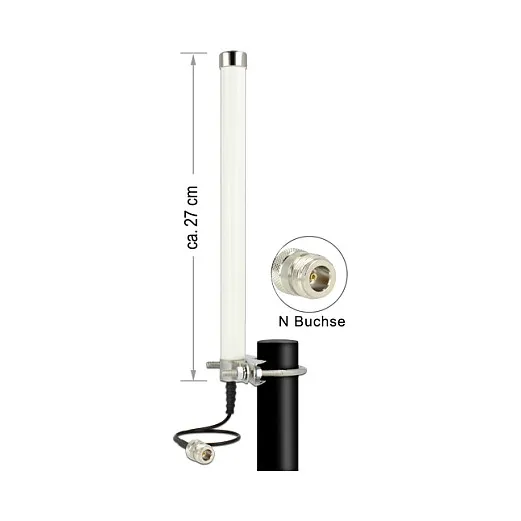

DeLOCK 12491. Antenna gain level (max): 6.5 dBi, Frequency band: 0.698 – 0.960 / 1.71 – 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Product colour: Black, White. Height: 270 mm, Diameter: 2.2 cm. Package type: Polybag. Quantity per pack: 1 pc(s)
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Performance
Frequency band: 0.698 – 0.960 / 1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 6.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: N-type
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black, White
Cable type: RG-174
Purpose: Outdoor
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Weight & dimensions
Height: 270 mm
Diameter: 2.2 cm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 0.698 – 0.960 / 1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 6.5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: N-type
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black, White
Cable type: RG-174
Purpose: Outdoor
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Weight & dimensions
Height: 270 mm
Diameter: 2.2 cm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
