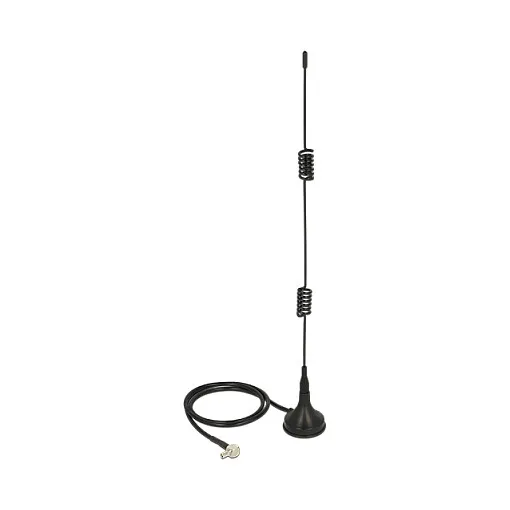

DeLOCK 12480. Antenna gain level (max): 3 dBi, Frequency band: 0.698 – 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: TS-9, Polarization: Vertical polarization. Width: 30 mm, Depth: 30 mm, Height: 265 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
This Delock LTE antenna allows the use of different LTE bands indoors. It is completely Bluetooth, GSM, UMTS, WLAN 2.4 GHz, Z-Wave and ZigBee compatible.
Performance
Frequency band: 0.698 – 2.7 GHz
Impedance: 50 Ω
Horizontal beam width: 360°
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: TS-9
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3.5
Product colour: Black
Cable length: 0.5 m
Cable type: RG-174
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 30 mm
Depth: 30 mm
Height: 265 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 0.698 – 2.7 GHz
Impedance: 50 Ω
Horizontal beam width: 360°
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: TS-9
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 3.5
Product colour: Black
Cable length: 0.5 m
Cable type: RG-174
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 30 mm
Depth: 30 mm
Height: 265 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
