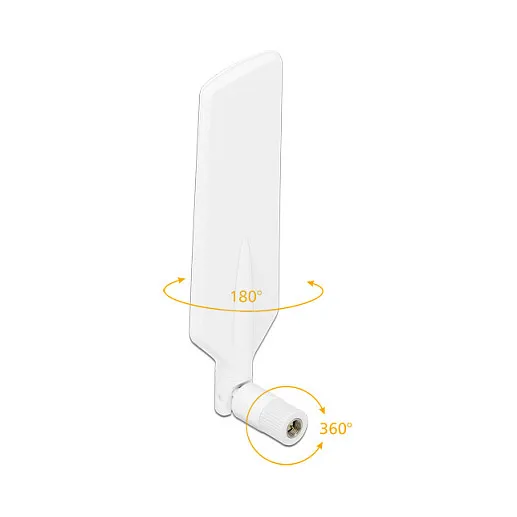

DeLOCK 12430. Antenna gain level (max): 4 dBi, Frequency band: 0.698 – 0.791 / 0.824 – 0.960 / 1.710 – 2.170 / 2.400 – 2.500 / 5.150 – 5.875 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Voltage Standing Wave Ratio (VSWR): 2.5:1 – 5.0:1. Width: 39.8 mm, Depth: 156.2 mm, Height: 13.5 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
This LTE antenna can be installed indoors and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN dual band and ZigBee compatible.
Performance
Frequency band: 0.698 – 0.791 / 0.824 – 0.960 / 1.710 – 2.170 / 2.400 – 2.500 / 5.150 – 5.875 GHz
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA

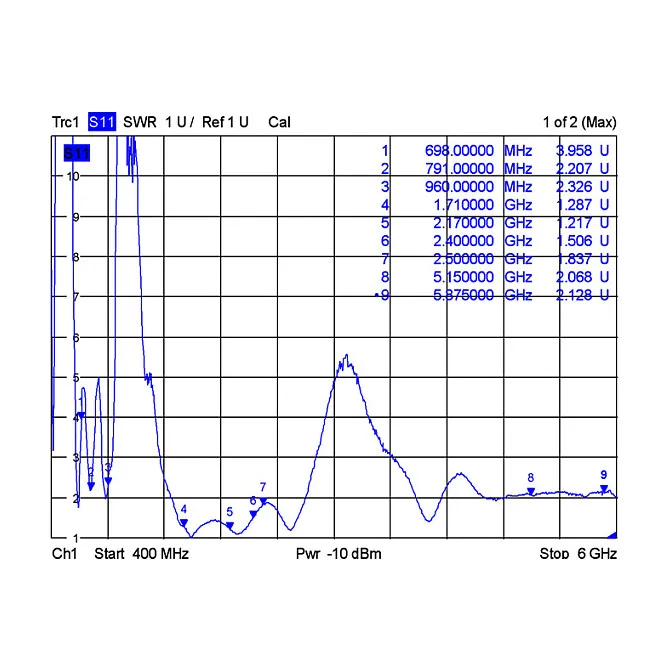

Voltage Standing Wave Ratio (VSWR): 2.5:1 – 5.0:1
Product colour: White
Operational conditions
Operating temperature (T-T): -10 – 55 °C

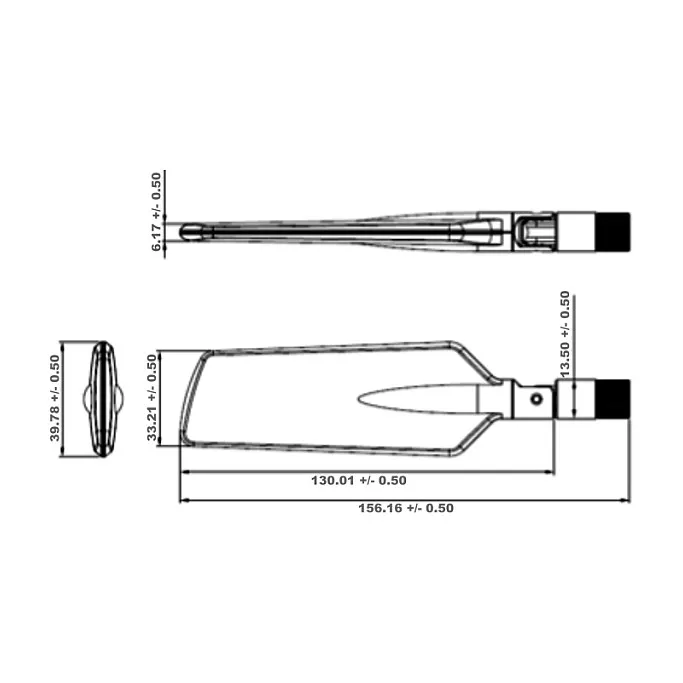

Weight & dimensions
Width: 39.8 mm
Depth: 156.2 mm
Height: 13.5 mm
Diameter: 1.35 cm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 0.698 – 0.791 / 0.824 – 0.960 / 1.710 – 2.170 / 2.400 – 2.500 / 5.150 – 5.875 GHz
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Voltage Standing Wave Ratio (VSWR): 2.5:1 – 5.0:1
Product colour: White
Operational conditions
Operating temperature (T-T): -10 – 55 °C
Weight & dimensions
Width: 39.8 mm
Depth: 156.2 mm
Height: 13.5 mm
Diameter: 1.35 cm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
