DeLOCK 12422. Antenna gain level (max): 5 dBi, Frequency band: 0.824 – 0.96 / 1.71 – 2.17 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Width: 40 mm, Depth: 40 mm, Height: 340 mm. Package type: Polybag. Quantity per pack: 1 pc(s)

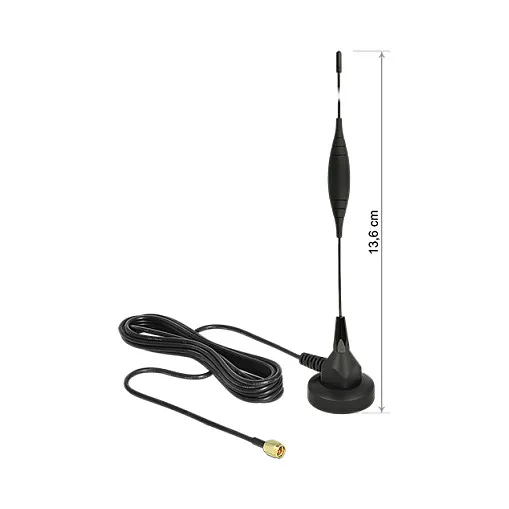

This GSM antenna by Delock allows the usage of different GSM bands indoors and outdoors. It is compatible to ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Performance
Frequency band: 0.824 – 0.96 / 1.71 – 2.17 GHz
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Power handling: 10 W
Cable length: 3 m
Cable type: RG-174
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Weight & dimensions
Width: 40 mm
Depth: 40 mm
Height: 340 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 0.824 – 0.96 / 1.71 – 2.17 GHz
Impedance: 50 Ω
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: Black
Power handling: 10 W
Cable length: 3 m
Cable type: RG-174
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Weight & dimensions
Width: 40 mm
Depth: 40 mm
Height: 340 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
