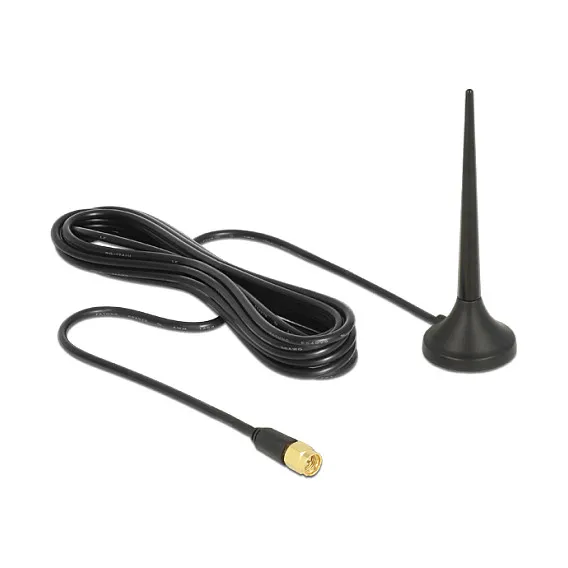

DeLOCK 12416. Antenna gain level (max): 3 dBi, Frequency band: 0.8 – 0.96 / 1.71 – 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Polarization: Vertical polarization. Width: 29 mm, Depth: 29 mm, Height: 88.7 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MH/z / 915 MHz.
Performance
Frequency band: 0.8 – 0.96 / 1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2
Product colour: Black
Cable length: 2 m
Cable type: RG-174
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Weight & dimensions
Width: 29 mm
Depth: 29 mm
Height: 88.7 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
Frequency band: 0.8 – 0.96 / 1.71 – 2.7 GHz
Impedance: 50 Ω
Antenna gain level (max): 3 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2
Product colour: Black
Cable length: 2 m
Cable type: RG-174
Maximum cable loss with connectors: 1.5 dB
Operational conditions
Operating temperature (T-T): -30 – 70 °C
Weight & dimensions
Width: 29 mm
Depth: 29 mm
Height: 88.7 mm
Packaging data
Package type: Polybag
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85177100
