DeLOCK 12073. Megapixel (approx.): 8.3 MP, Maximum video resolution: 3840 x 2160 pixels, Camera HD type: 4K Ultra HD. Interface: USB 2.0, Product colour: Black, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Windows operating systems supported: Windows 10, Windows 11, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel…. Width: 38 mm, Depth: 38 mm, Height: 22.3 mm. Package type: Box

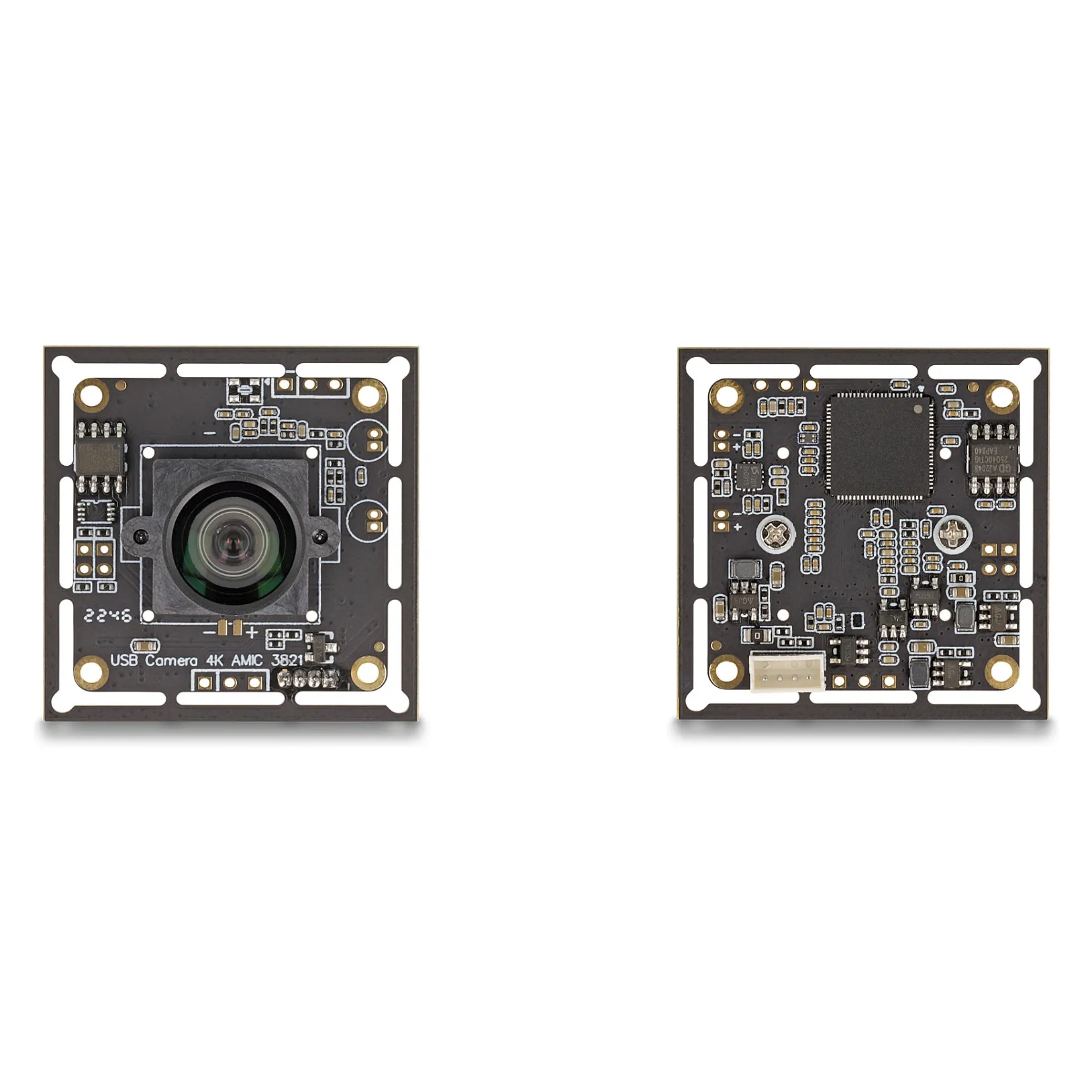

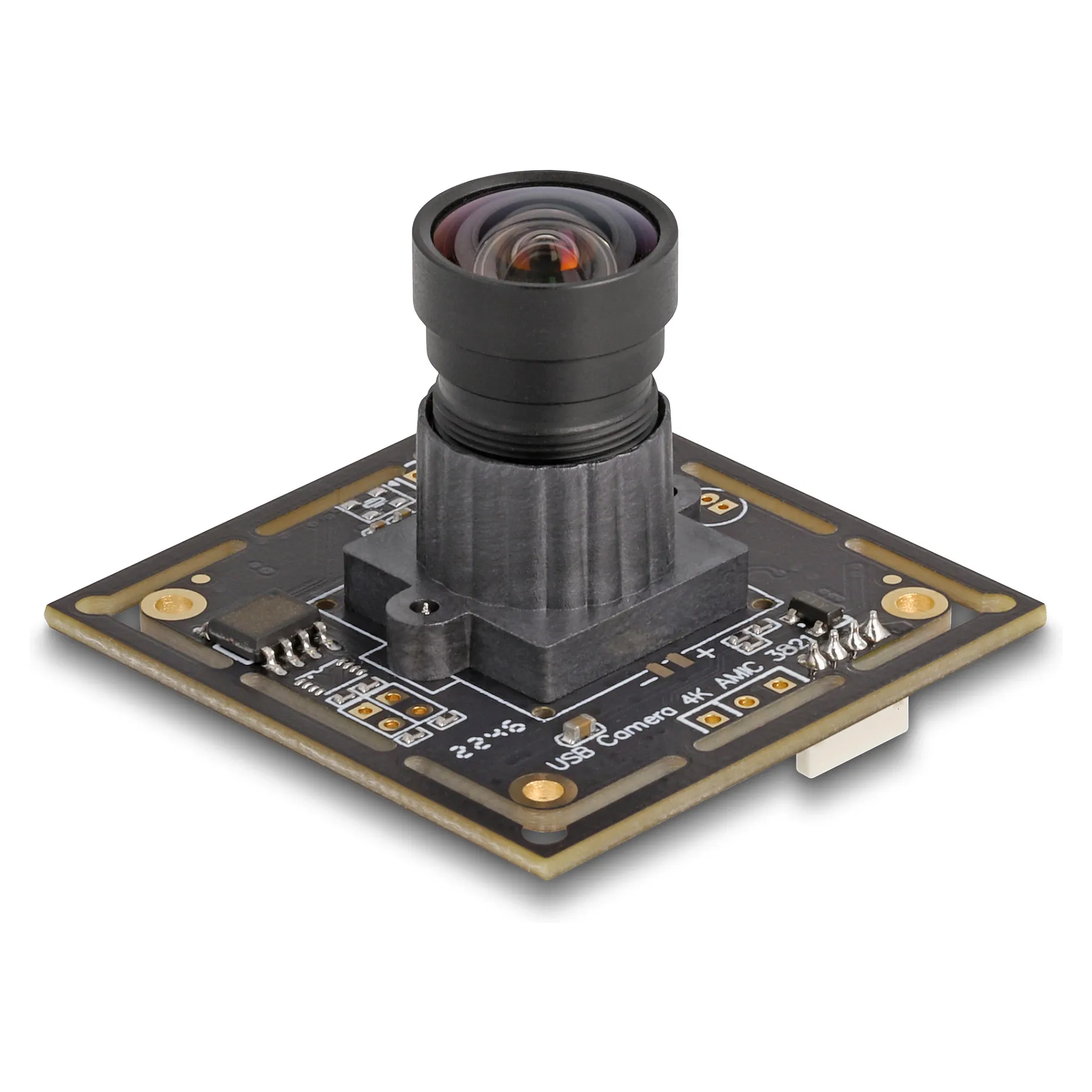

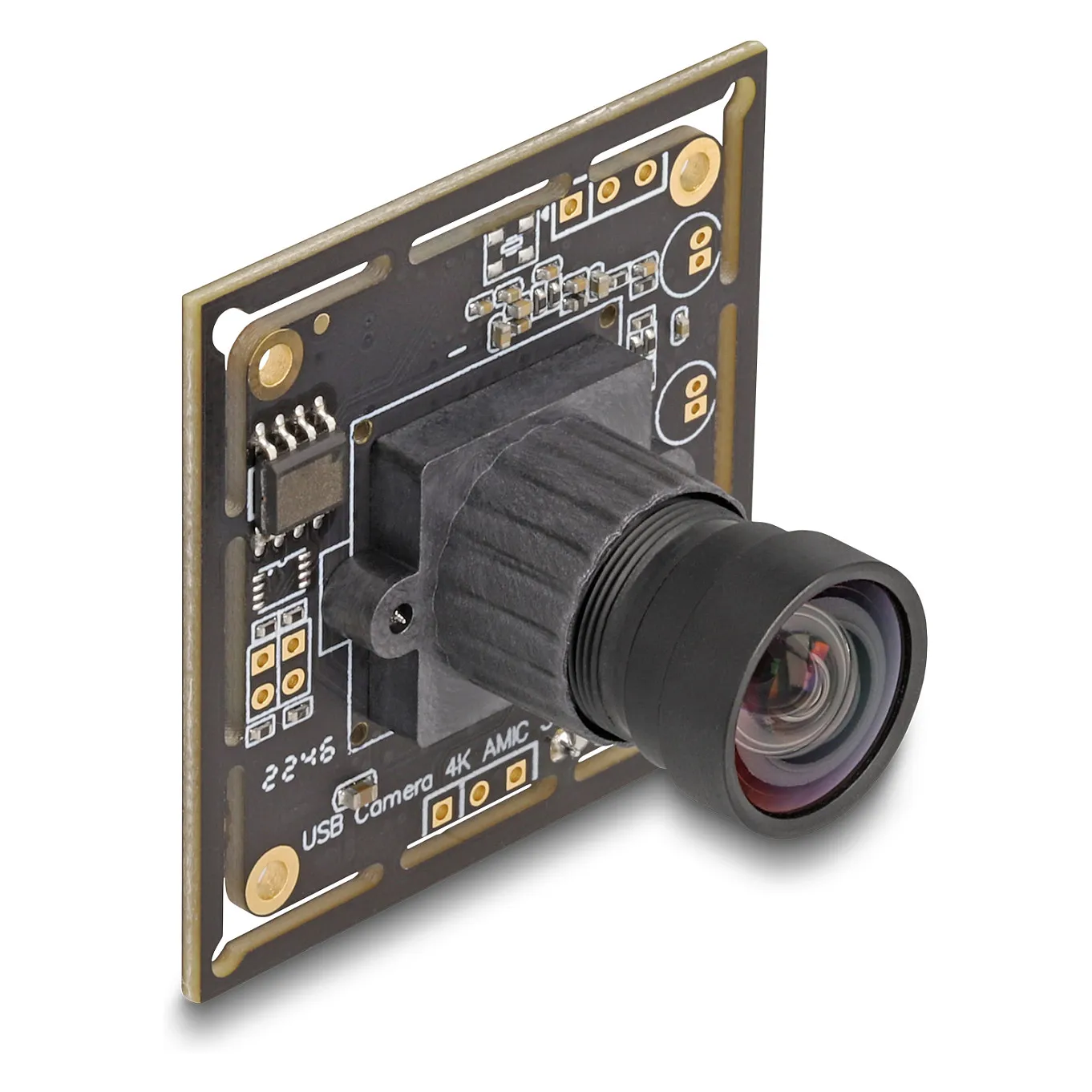

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
HDR – High Dynamic Range
Allows to increase the overall dynamic range to ensure more detailed images in scenes with bright and dark areas.
Performance
Megapixel (approx.): 8.3 MP
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 30 fps
Camera HD type: 4K Ultra HD
Supported video modes: 2160p
Video formats supported: MJPG
Feature: Fixed focus
Signal-to-Noise Ratio (SNR): 41 dB
Normal focusing range: 0.3 – infinite
Operating voltage: 5 V
Design
Interface: USB 2.0
Product colour: Black
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″)
Software
Windows operating systems supported: Windows 10, Windows 11
Operational conditions
Operating relative humidity (H-H): 0 – 80%
Operating temperature (T-T): -10 – 70 °C
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 38 mm
Depth: 38 mm
Height: 22.3 mm
Packaging data
Quantity: 1
Package type: Box
Logistics data
Country of origin: China
Technical details
Compliance certificates: CE
Megapixel (approx.): 8.3 MP
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 30 fps
Camera HD type: 4K Ultra HD
Supported video modes: 2160p
Video formats supported: MJPG
Feature: Fixed focus
Signal-to-Noise Ratio (SNR): 41 dB
Normal focusing range: 0.3 – infinite
Operating voltage: 5 V
Design
Interface: USB 2.0
Product colour: Black
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″)
Software
Windows operating systems supported: Windows 10, Windows 11
Operational conditions
Operating relative humidity (H-H): 0 – 80%
Operating temperature (T-T): -10 – 70 °C
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 38 mm
Depth: 38 mm
Height: 22.3 mm
Packaging data
Quantity: 1
Package type: Box
Logistics data
Country of origin: China
Technical details
Compliance certificates: CE
