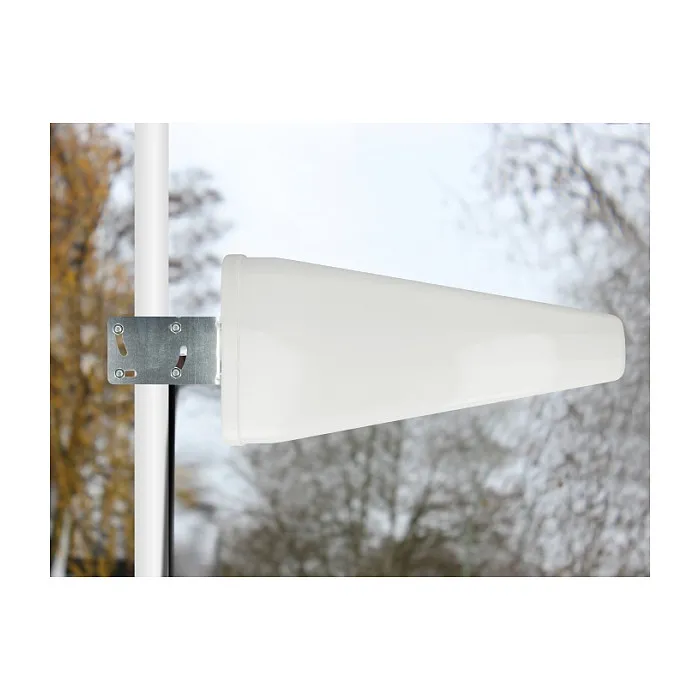

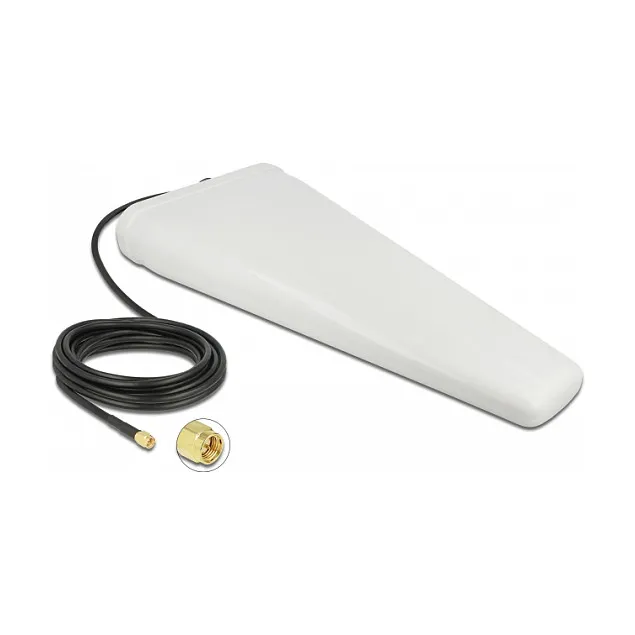

DeLOCK LTE Antenna SMA plug 9 – 11 dB directional with connection cable (RG-58, 5 m) white outdoor. Antenna gain level (max): 11 dBi, Frequency band: 1.71 – 2.7 GHz, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: SMA, Polarization: Vertical polarization. Power source type: AC. Width: 210 mm, Depth: 450 mm, Height: 65 mm. Quantity per pack: 1 pc(s)
This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Performance
Frequency band: 1.71 – 2.7 GHz
Impedance: 50 Ω
Horizontal beam width: 70°
Vertical beam width: 55°
Antenna gain level (max): 11 dBi
Features
Antenna type: Directional antenna
Antenna connector type: SMA
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: White
International Protection (IP) code: IP55
Power handling: 50 W
Power
Power source type: AC
Operational conditions
Operating temperature (T-T): -40 – 60 °C
Weight & dimensions
Width: 210 mm
Depth: 450 mm
Height: 65 mm
Packaging content
Quantity per pack: 1 pc(s)
Frequency band: 1.71 – 2.7 GHz
Impedance: 50 Ω
Horizontal beam width: 70°
Vertical beam width: 55°
Antenna gain level (max): 11 dBi
Features
Antenna type: Directional antenna
Antenna connector type: SMA
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0
Product colour: White
International Protection (IP) code: IP55
Power handling: 50 W
Power
Power source type: AC
Operational conditions
Operating temperature (T-T): -40 – 60 °C
Weight & dimensions
Width: 210 mm
Depth: 450 mm
Height: 65 mm
Packaging content
Quantity per pack: 1 pc(s)
