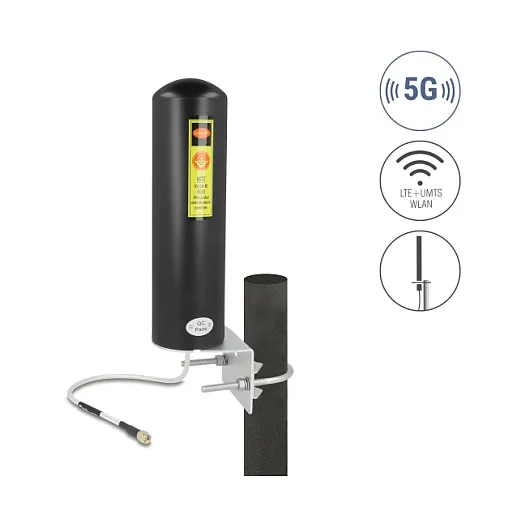

DeLOCK 10037. Antenna gain level (max): 5 dBi, Impedance: 50 Ω, Horizontal beam width: 360°. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Height: 216 mm, Diameter: 6.3 cm, Weight: 490 g. Package type: Box. 4G standard: LTE, 3G standards: UMTS
This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
Performance
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 18°
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0:1
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Cable length: 0.3 m
Cable type: RG-142
Mounting: Wall/Pole
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Weight & dimensions
Height: 216 mm
Diameter: 6.3 cm
Weight: 490 g
Packaging data
Package type: Box
Mobile network
4G standard: LTE
3G standards: UMTS
Packaging content
Quantity per pack: 1 pc(s)

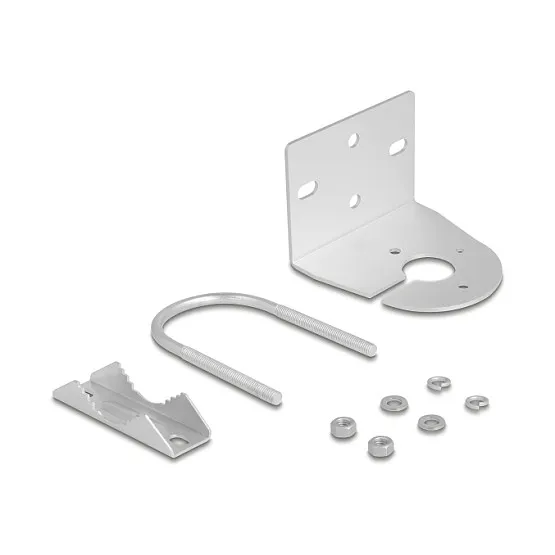

Feature: Mounting kit
Logistics data
Country of origin: China
Other features
Frequency range: 600 – 960 MHz 1710 – 6000 MHz
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 18°
Antenna gain level (max): 5 dBi
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 2.0:1
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Cable length: 0.3 m
Cable type: RG-142
Mounting: Wall/Pole
Purpose: Outdoor
Operational conditions
Operating temperature (T-T): -40 – 80 °C
Weight & dimensions
Height: 216 mm
Diameter: 6.3 cm
Weight: 490 g
Packaging data
Package type: Box
Mobile network
4G standard: LTE
3G standards: UMTS
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Logistics data
Country of origin: China
Other features
Frequency range: 600 – 960 MHz 1710 – 6000 MHz
