DELL Pro QCM1250

Processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14500T
Processor cores: 14
Processor threads: 20
Processor boost frequency: 4.8 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.4 GHz
Performance-core base frequency: 1.7 GHz
Efficient-core base frequency: 1.2 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 35 W
Maximum turbo power: 92 W
Neural processor unit (NPU)
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Memory
Internal memory: 8 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 8 GB
Memory slots: 2x SO-DIMM
Non-ECC: Yes
Memory channels: Single-channel
Memory data transfer rate: 4800 MT/s
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Graphics
Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770
Performance
Market positioning: Business
Motherboard chipset: Intel® Q870
Trusted Platform Module (TPM): Yes
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel WGI219LM
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6E AX211
Antenna type: 2×2
Antenna design: Internal
Bluetooth: Yes

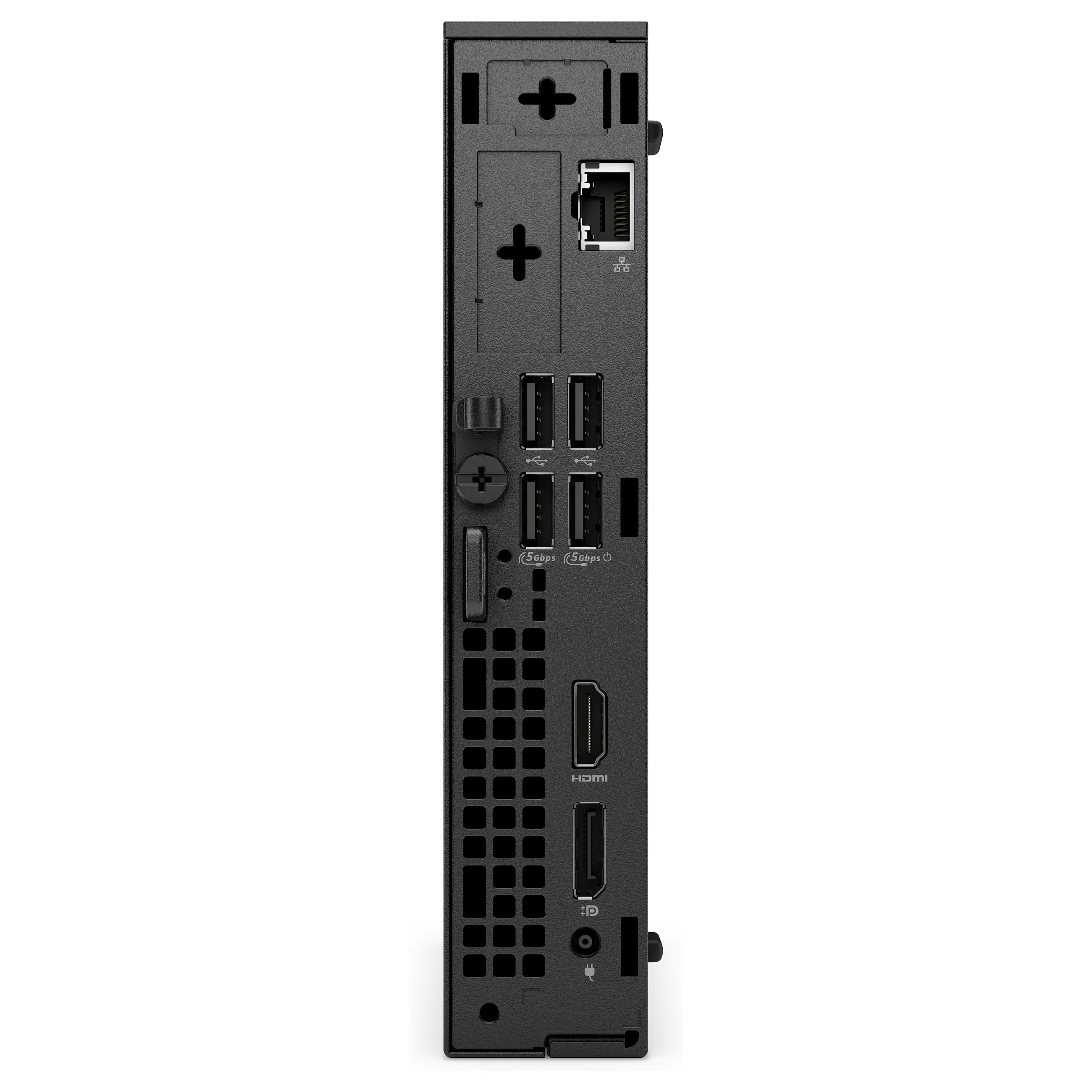

Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4a
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
DC-in jack: Yes
Number of rear USB ports: 4
Number of front USB ports: 2
Number of front audio ports: 1
Power
Power supply: 90 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50 / 60 Hz
Design
Chassis type: Micro PC
Placement supported: Horizontal/Vertical
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Intel® vPro™ Platform Eligibility: Yes
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
Display
Display included: No
Audio
Audio chip: Realtek ALC3204
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 65 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 5 – 95%
Operating altitude: -15.2 – 3048 m
Non-operating altitude: -15.2 – 10668 m
Operating vibration: 0.26 G
Non-operating vibration: 1.37 G
Operating shock: 40 G
Non-operating shock: 105 G
Weight & dimensions
Width: 36 mm
Depth: 178 mm
Height: 182 mm
Weight: 1.16 kg
Packaging content
Mouse included on selected markets: Dell Optical Mouse-MS116 – Black
Keyboard included on selected markets: Dell Wired Keyboard – KB216 – UK (QWERTY) – Black
Sustainability
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold
Carbon footprint
Total carbon footprint (kg of CO2e): 77.6
Carbon emissions, manufacturing (kg of CO2e): 41.52
Carbon emissions, logistics (kg of CO2e): 2.17
Carbon emissions, energy usage (kg of CO2e): 33.45
Carbon emissions, end-of-life (kg of CO2e): 0.54
PAIA version: GaBi version 1, 2024
