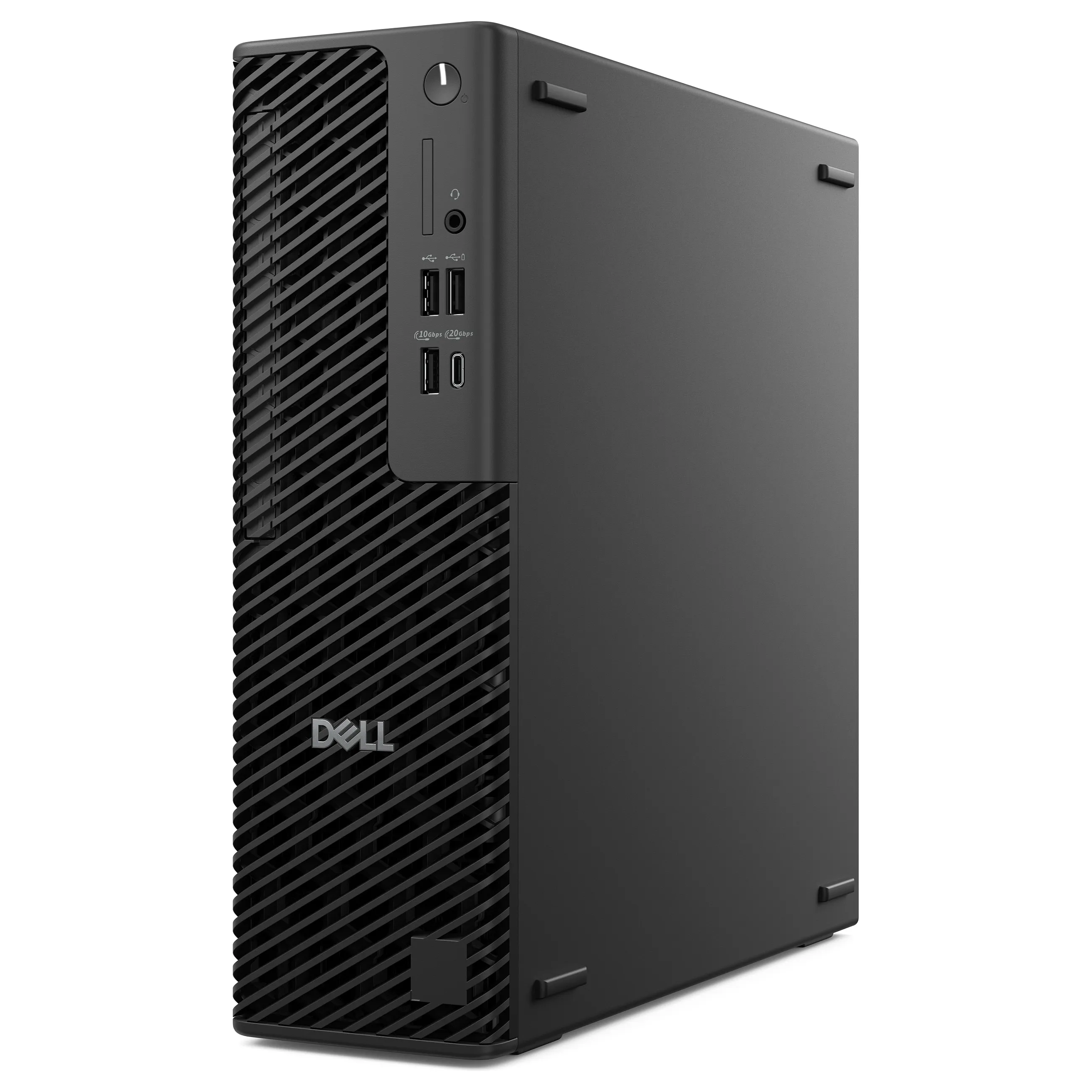

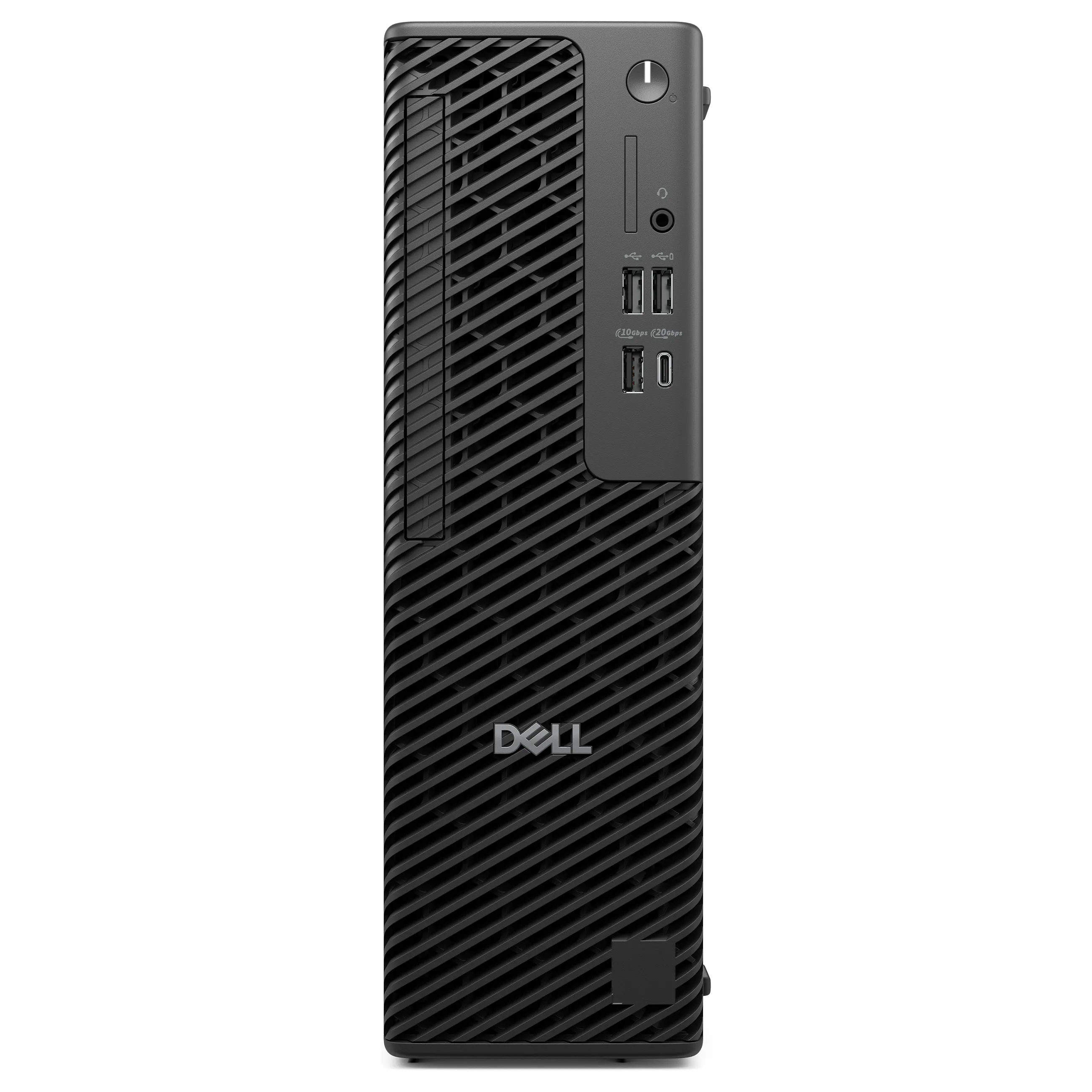

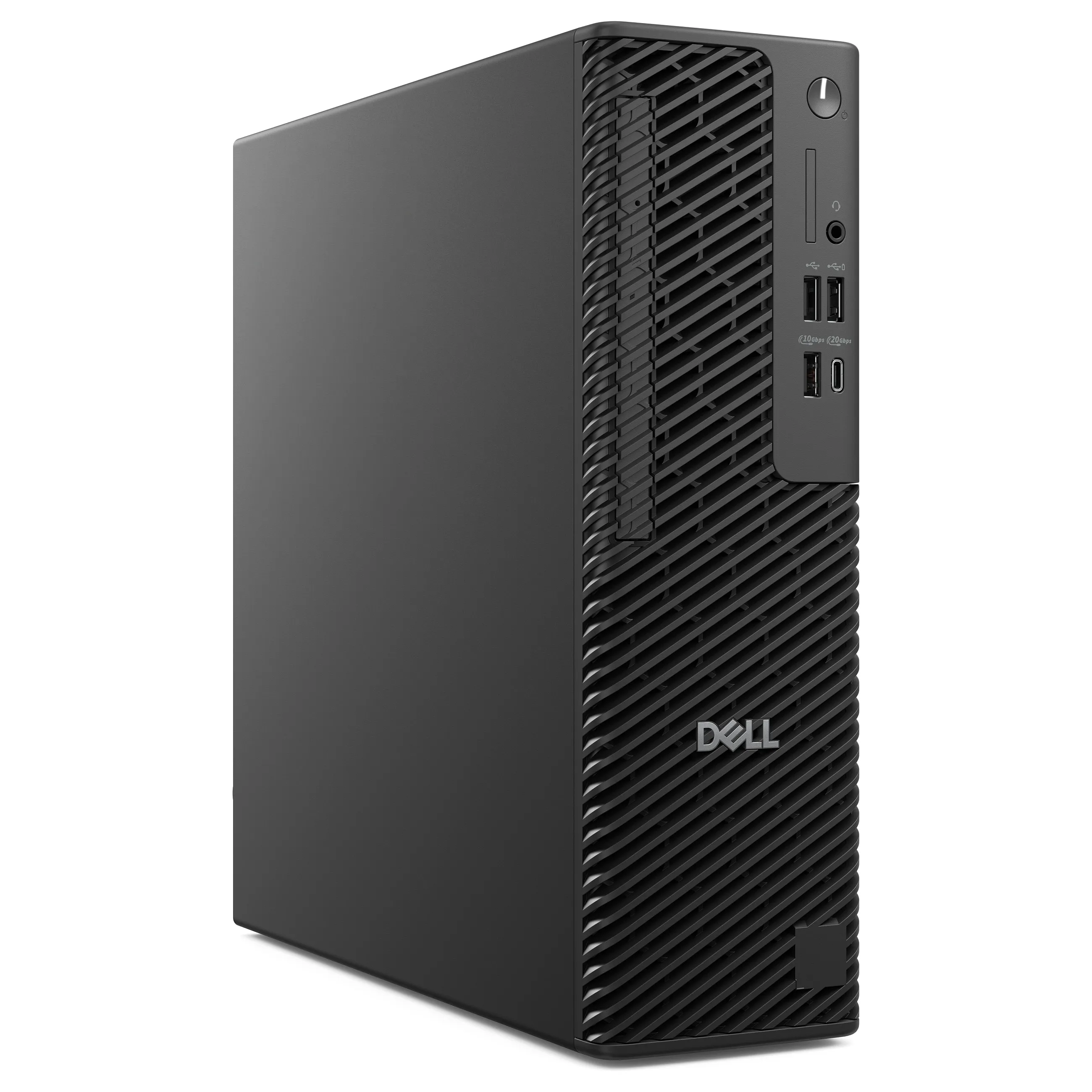

DELL Pro Max FCS1250

Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 182 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
Memory
Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x SO-DIMM
Feature: Non-ECC
Memory data transfer rate: 5600 MT/s
Storage
Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD memory type: TLC
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Performance
Motherboard chipset: Intel W880
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel® I219-LM

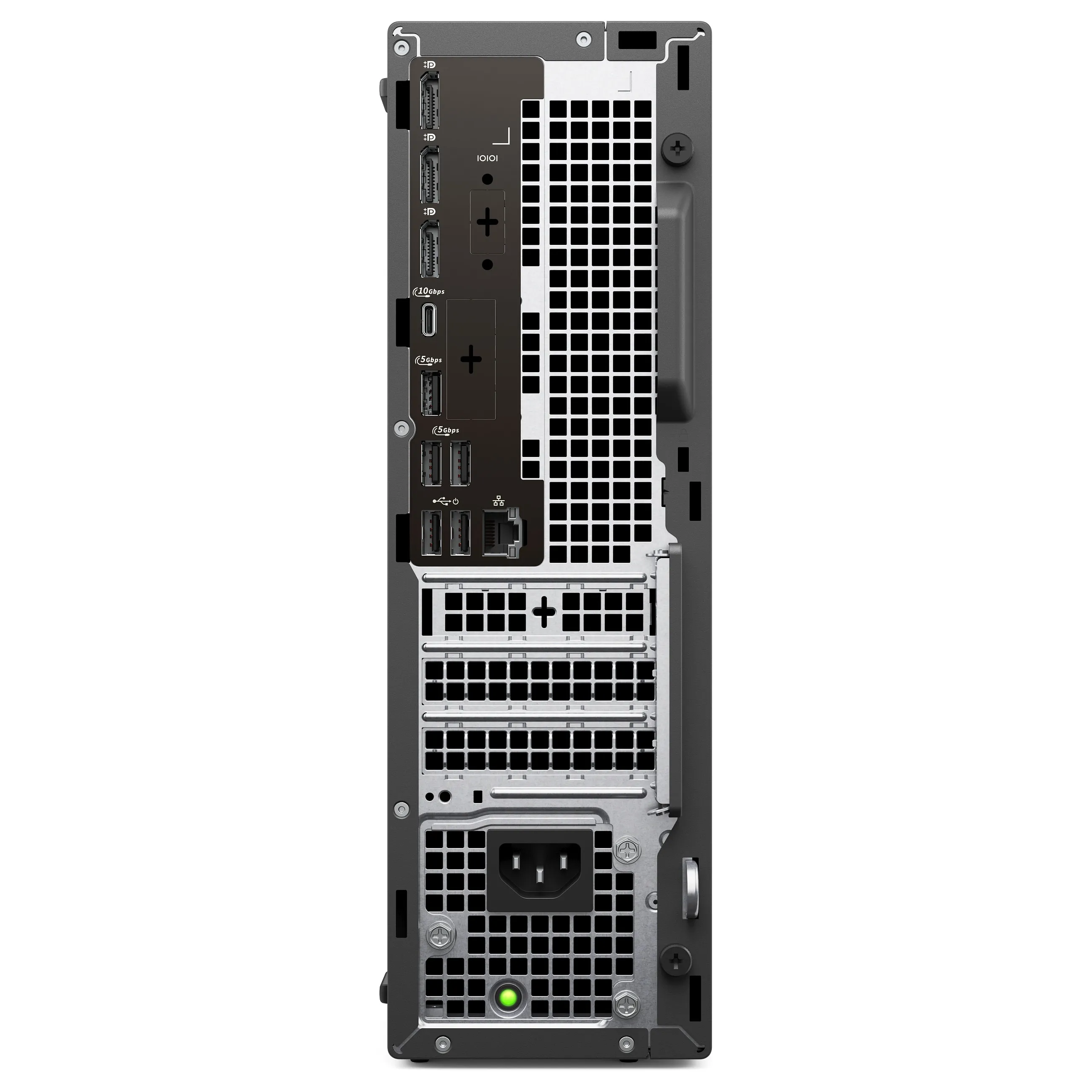

Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2×2 Type-C ports quantity: 1
DisplayPorts quantity: 3
DisplayPort version: 1.4a
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: DC-in jack
Number of SATA III connectors: 2
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Power
Power supply: 360 W
Power supply input voltage: 90 – 264 V
Power supply input frequency: 47/63 Hz
80 PLUS certification: 80 PLUS Platinum
Design
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: Intel® vPro™ Platform Eligibility
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
Processor special features
Feature: Intel® Active Management Technology (Intel® AMT)
Audio
Audio chip: Realtek ALC3204
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -40 – 65 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: -15.2 – 3048 m
Non-operating altitude: -15.2 – 10668 m
Weight & dimensions
Width: 95 mm
Depth: 293 mm
Height: 303.5 mm
Weight: 6.11 kg
Packaging content
Mouse included on selected markets: Dell Optical Mouse-MS116 – Black
Keyboard included on selected markets: Dell Wired Keyboard – KB216 – UK (QWERTY) – Black
Cables included: AC
Sustainability
Doesn’t contain: PVC/BFR
Carbon footprint
Total carbon footprint (kg of CO2e): 202
Carbon emissions, manufacturing (kg of CO2e): 95.75
Carbon emissions, logistics (kg of CO2e): 10.1
Carbon emissions, energy usage (kg of CO2e): 92.72
Carbon emissions, end-of-life (kg of CO2e): 3.64
PAIA version: GaBi version 1, 2024
