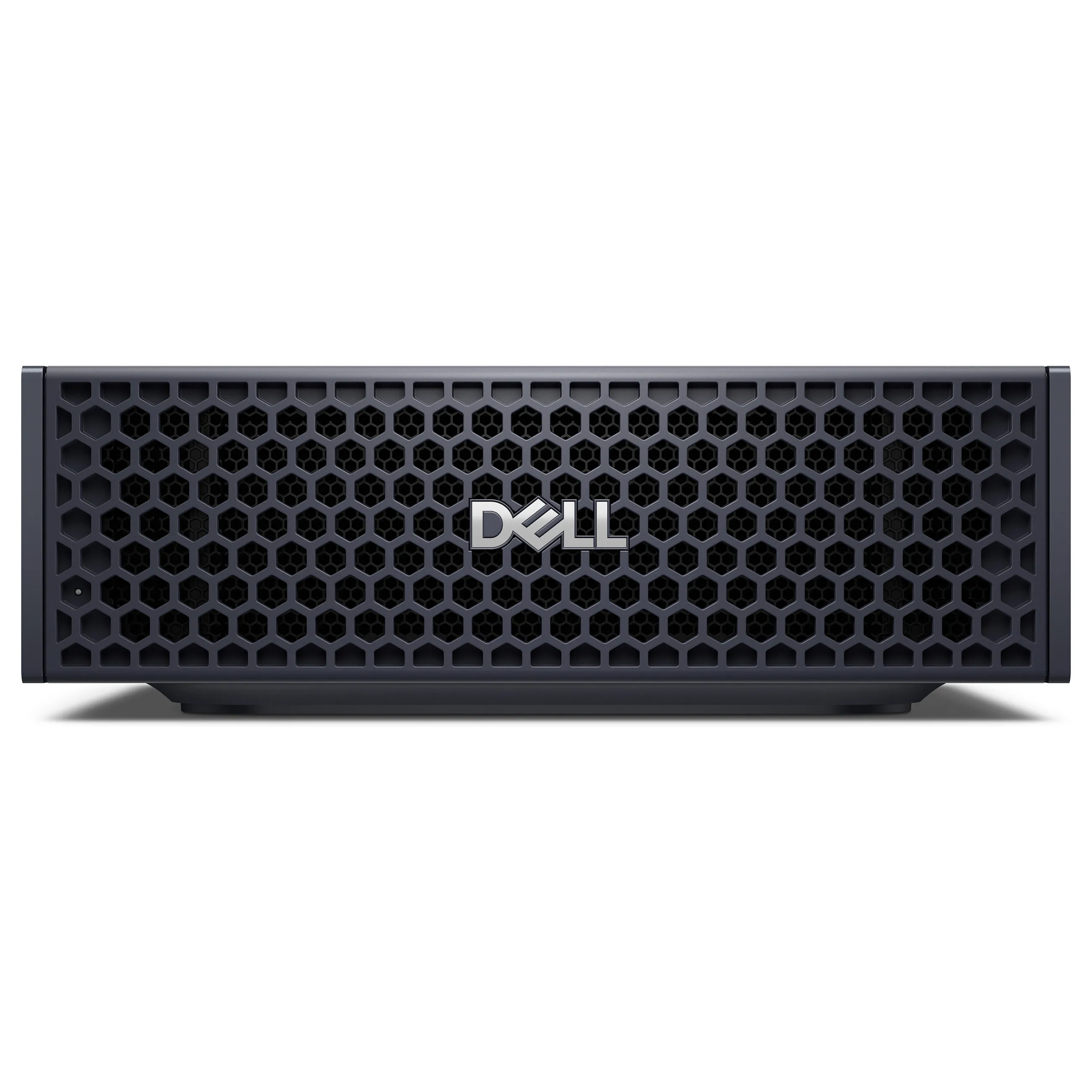

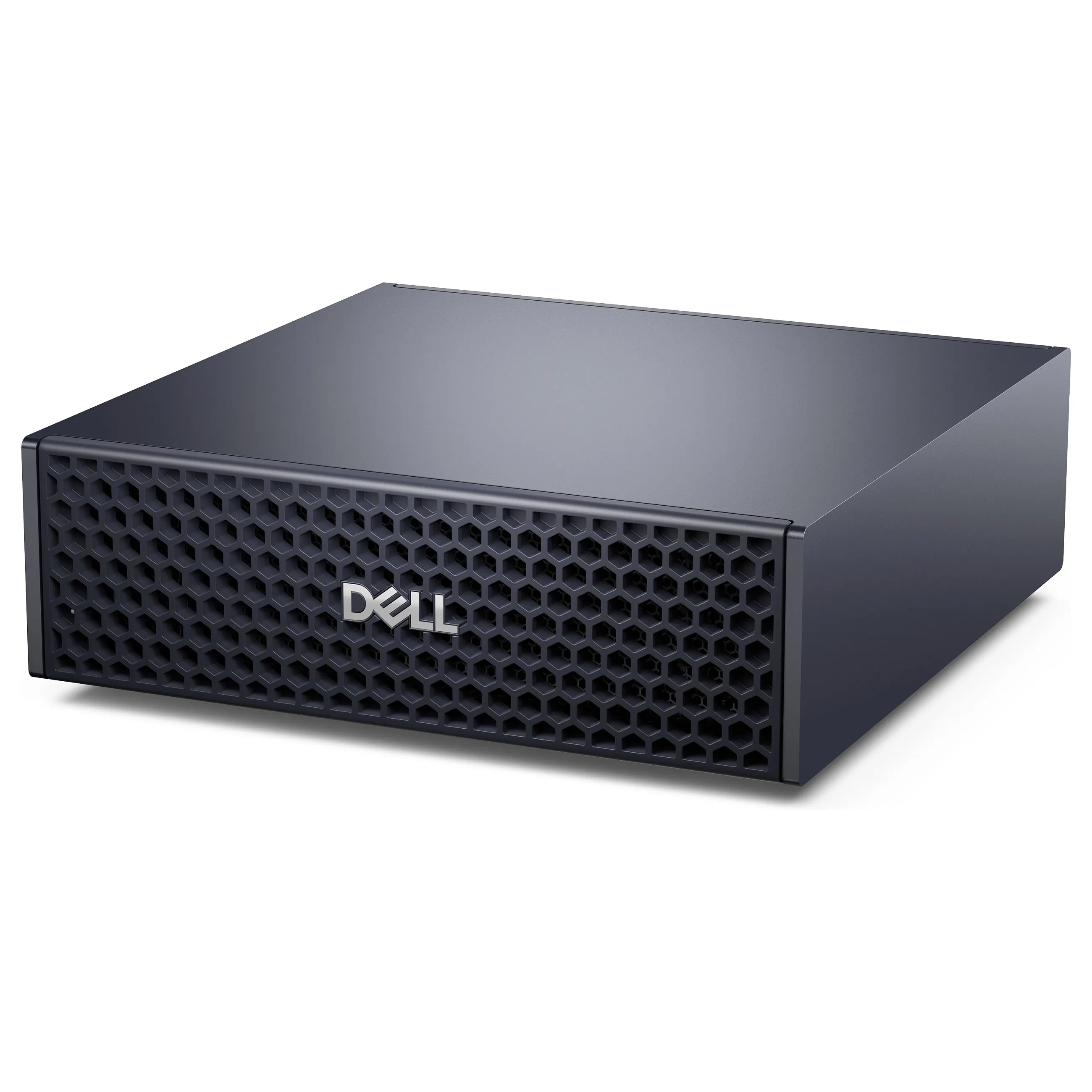

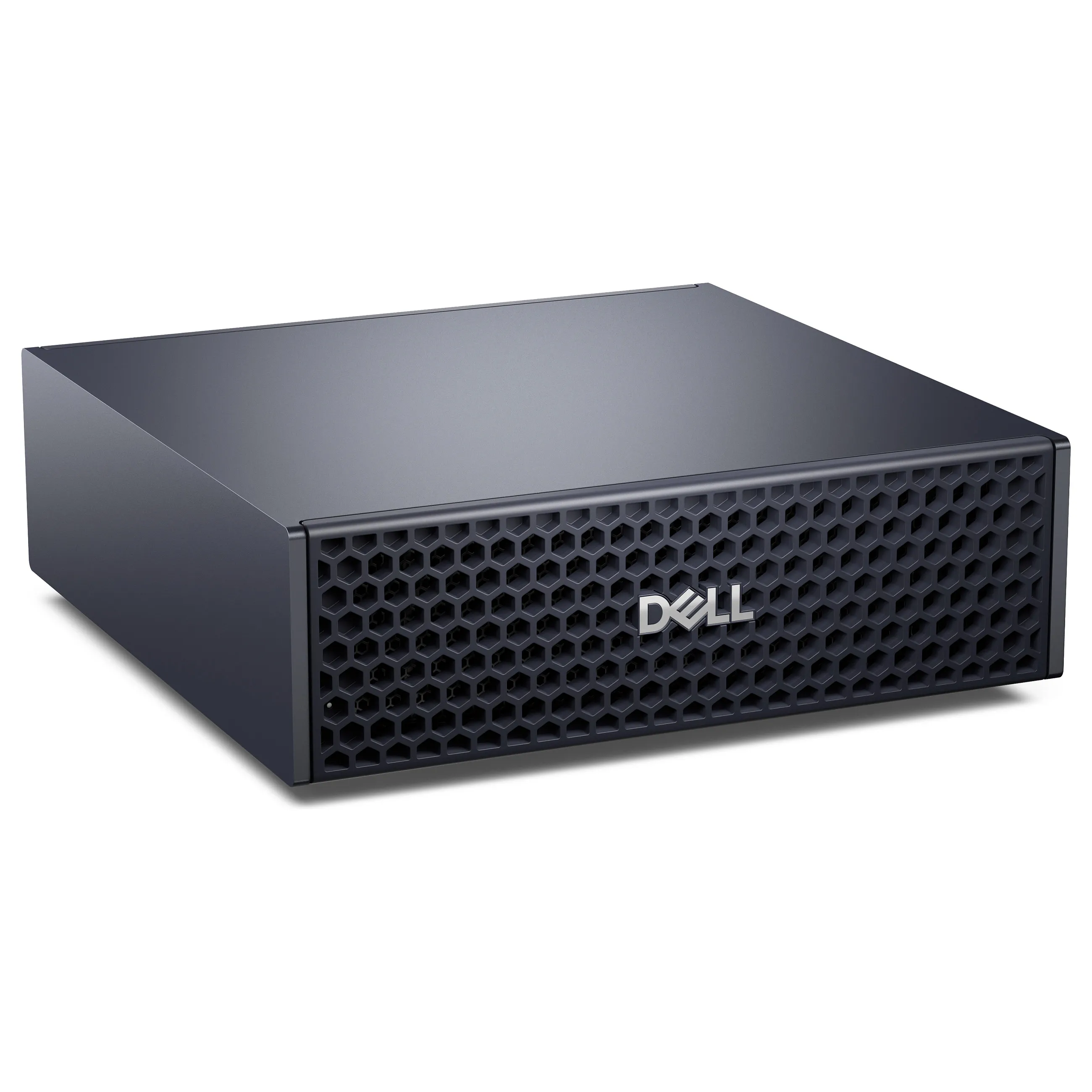

DELL Pro Max GB10 FCM1253. Processor model: GB10. Internal memory: 128 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 4 TB, Storage media: SSD. On-board graphics card model: NVIDIA Blackwell. Wi-Fi. Operating system installed: DGX OS. Power supply: 280 W. Product type: Mini PC. Weight: 1.34 kg. Product colour: Black
Compact design for optimized AI workloads
Dell Pro Max with GB10 an AI Accelerator provides compact design with powerful performance for local AI inferencing, AI development, and versatile Edge use cases.
Dell Pro Max with GB10 an AI Accelerator provides compact design with powerful performance for local AI inferencing, AI development, and versatile Edge use cases.
Processor
Processor manufacturer: Nvidia
Processor model: GB10
Processor cores: 20
Processor cache: 16 MB
Neural processor unit (NPU)
NPU performance up to: 13 TOPs
Memory
Internal memory: 128 GB
Maximum internal memory: 128 GB
Internal memory type: LPDDR5x-SDRAM
Memory data transfer rate: 8533 MT/s
Storage
Total storage capacity: 4 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 4 TB
Number of SSDs installed: 1
SSD capacity: 4 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: NVIDIA
On-board graphics card model: NVIDIA Blackwell
Performance
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
LAN controller: NVIDIA ConnectX-7
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller manufacturer: AzureWare
Feature: Bluetooth

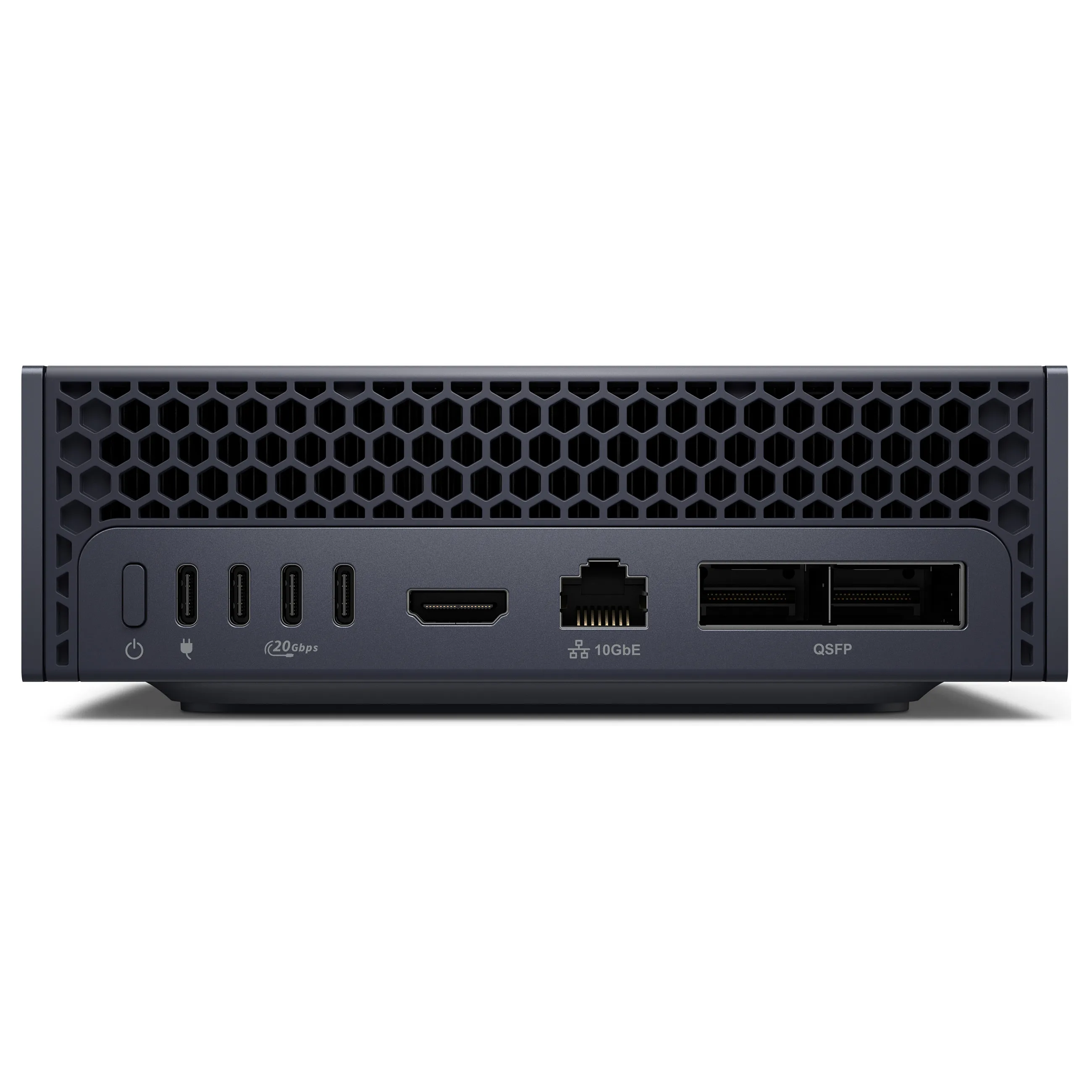

Ports & interfaces
USB 3.2 Gen 2×2 Type-C ports quantity: 3
Feature: USB Type-C DisplayPort Alternate Mode
HDMI ports quantity: 1
HDMI version: 2.1a
Ethernet LAN (RJ-45) ports: 1
Power
Power supply: 280 W
Power supply input voltage: 100 – 240 V
Design
Product colour: Black
Software
Operating system installed: DGX OS
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -40 – 65 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: -15.2 – 3048 m
Non-operating altitude: -15.2 – 10668 m
Operating vibration: 0.66 G
Non-operating vibration: 1.3 G
Operating shock: 110 G
Non-operating shock: 160 G
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 51 mm
Weight: 1.34 kg
Packaging content
Box contents: E5 Power Cord 1M for Europe
Sustainability
Doesn’t contain: PVC/BFR
Carbon footprint
Total carbon footprint (kg of CO2e): 427
Total carbon emissions, standard deviation (kg of CO2e): 110
Carbon emissions, manufacturing (kg of CO2e): 258.76
Carbon emissions, logistics (kg of CO2e): 61.49
Carbon emissions, energy usage (kg of CO2e): 99.06
Carbon emissions, end-of-life (kg of CO2e): 7.69
PAIA version: PAIA 1.5.1, 2025
