Design
Product type: Laptop
Product colour: Aluminium
Form factor: Clamshell
Housing material: Aluminium
Feature: Intel® vPro™ Platform Eligibility
Display
Display diagonal: 40.6 cm (16″)
Display resolution: 1920 x 1200 pixels
HD type: Full HD+
Panel type: IPS
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 300 cd/m²
Pixel density: 142 ppi
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1
Processor
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 235U
Processor cores: 12
Processor threads: 14
Processor boost frequency: 4.9 GHz
Performance cores: 2
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.1 GHz
Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 12 MB
Processor base power: 15 W
Maximum turbo power: 57 W
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
NPU performance up to: 12 TOPs
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory form factor: SO-DIMM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB
Memory data transfer rate: 5600 MT/s
Storage
Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Graphics
Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Audio
Audio chip: Cirrus Logic CS42L43
Number of built-in speakers: 2
Speaker power: 2.5 W
Feature: Built-in microphone
Number of microphones: 2
Camera
Feature: Front camera
Front camera resolution (numeric): 2.07 MP
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Video capturing speed: 30 fps
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter
Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max): 2400 Mbit/s
Antenna type: 2×2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Feature: Near Field Communication (NFC)
WWAN: Upgradable

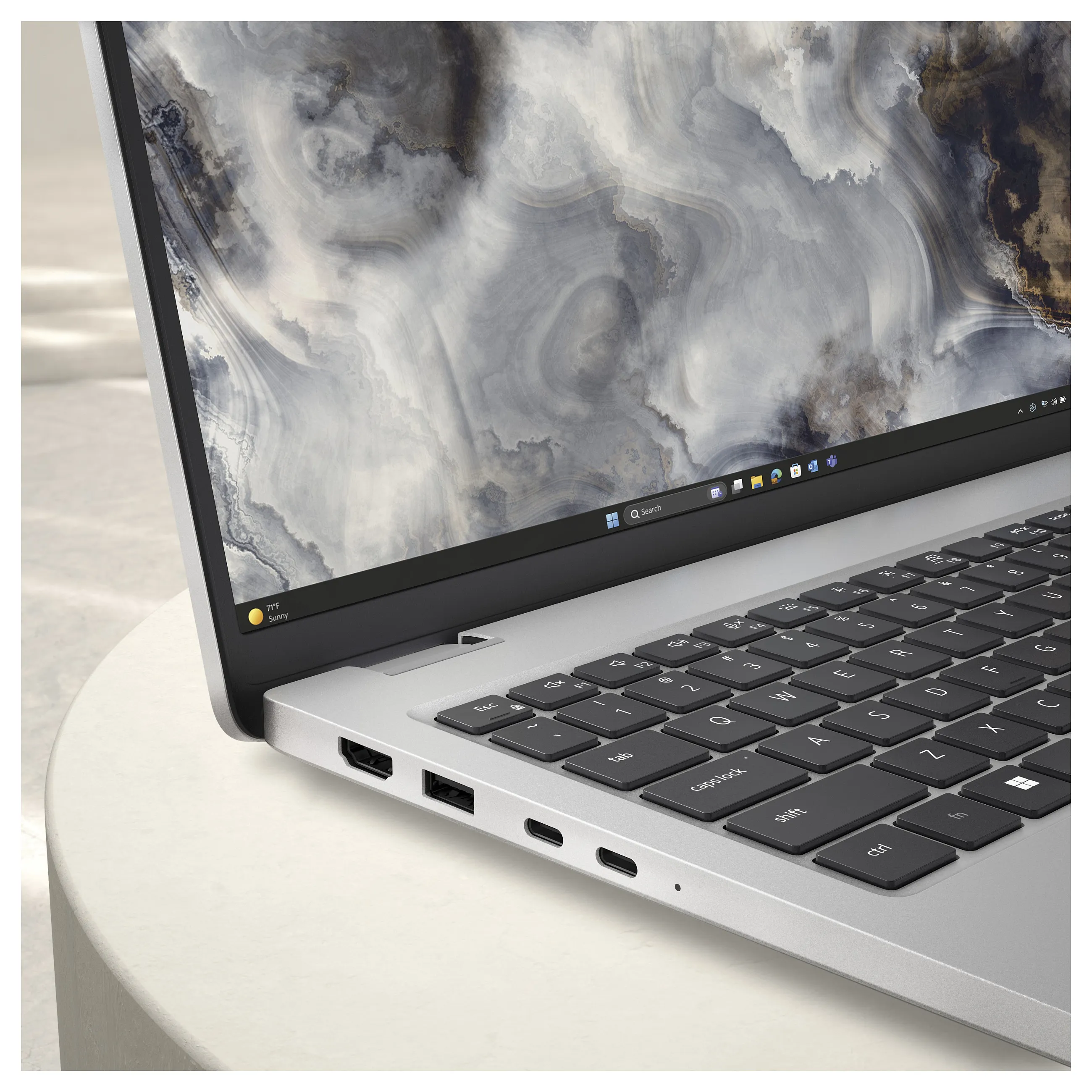

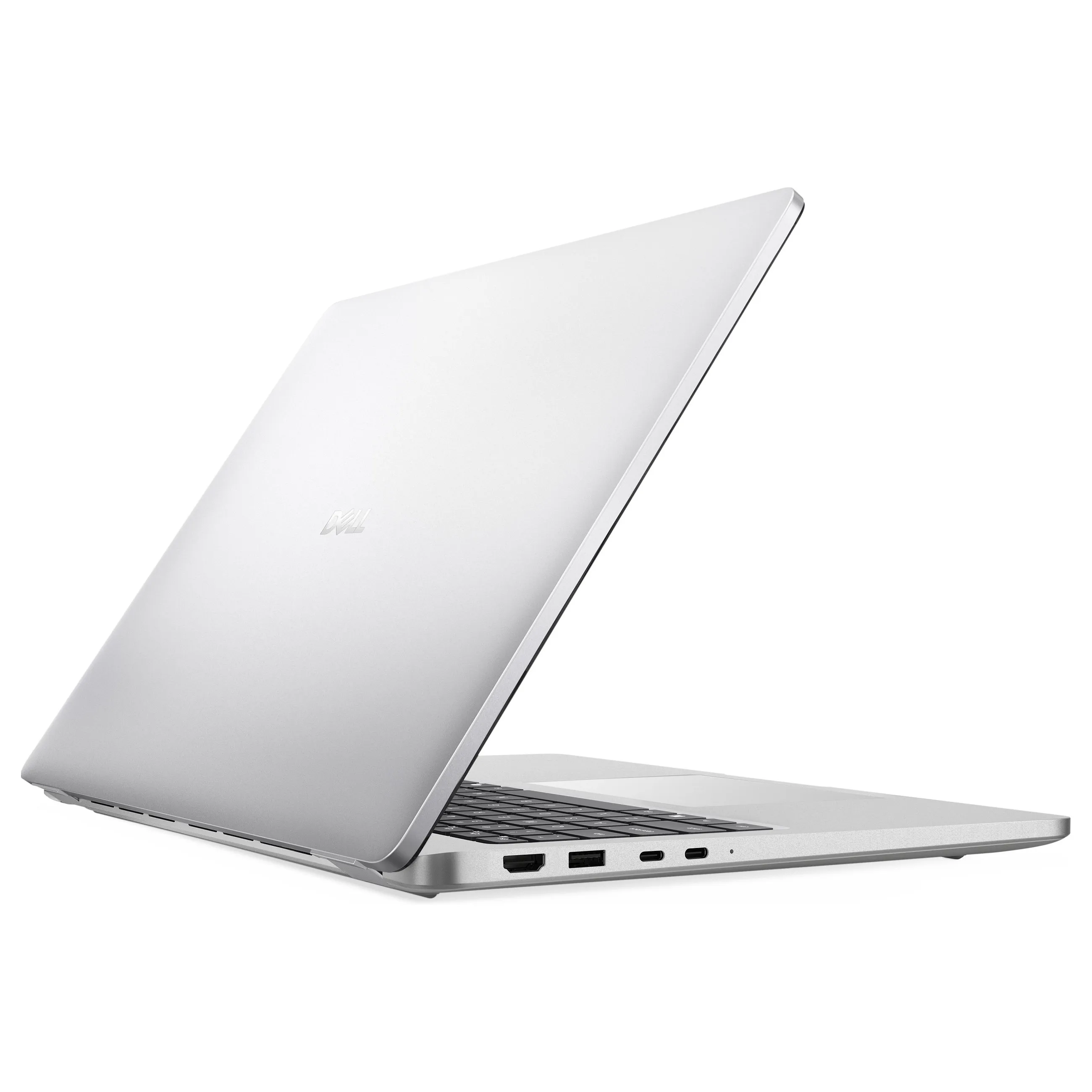

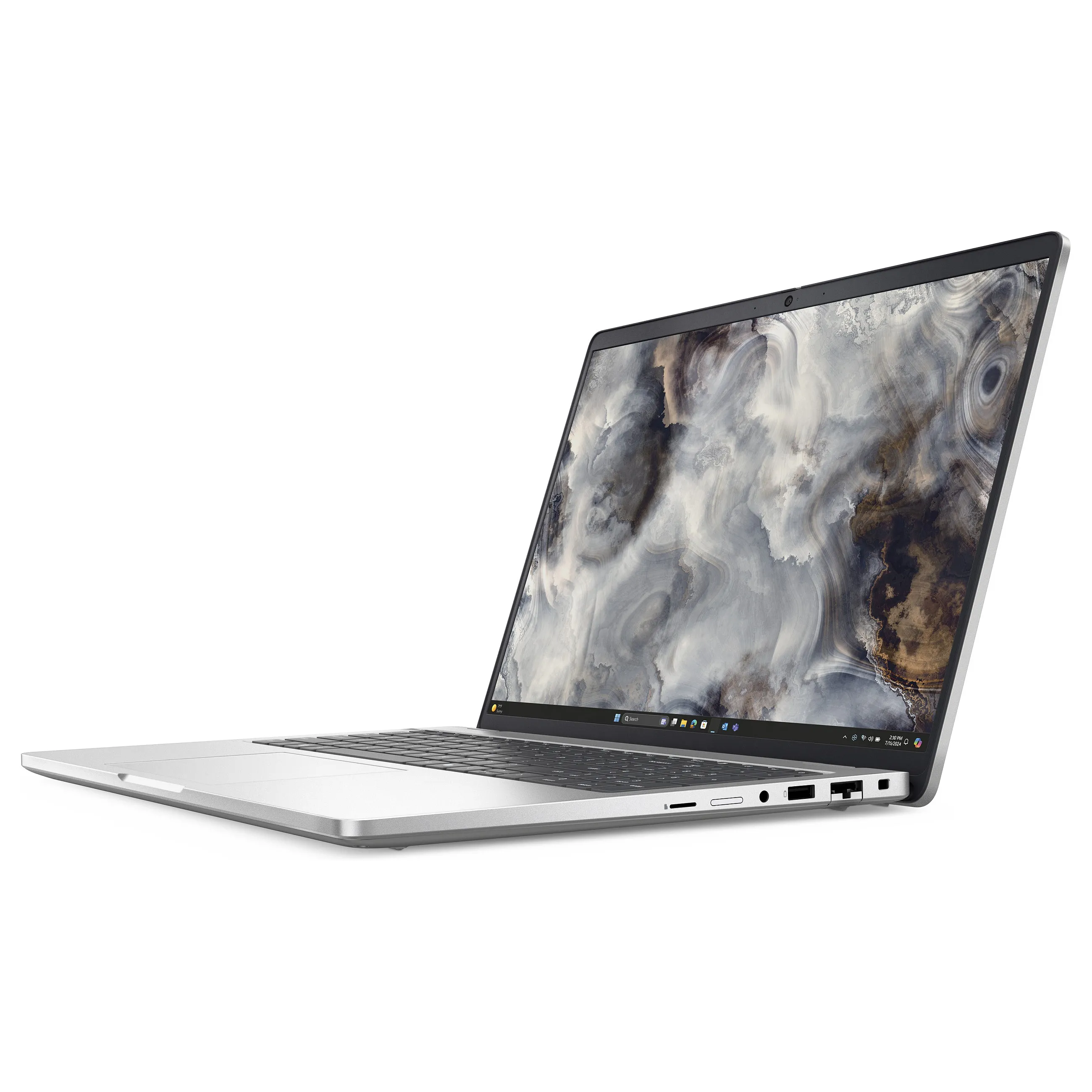

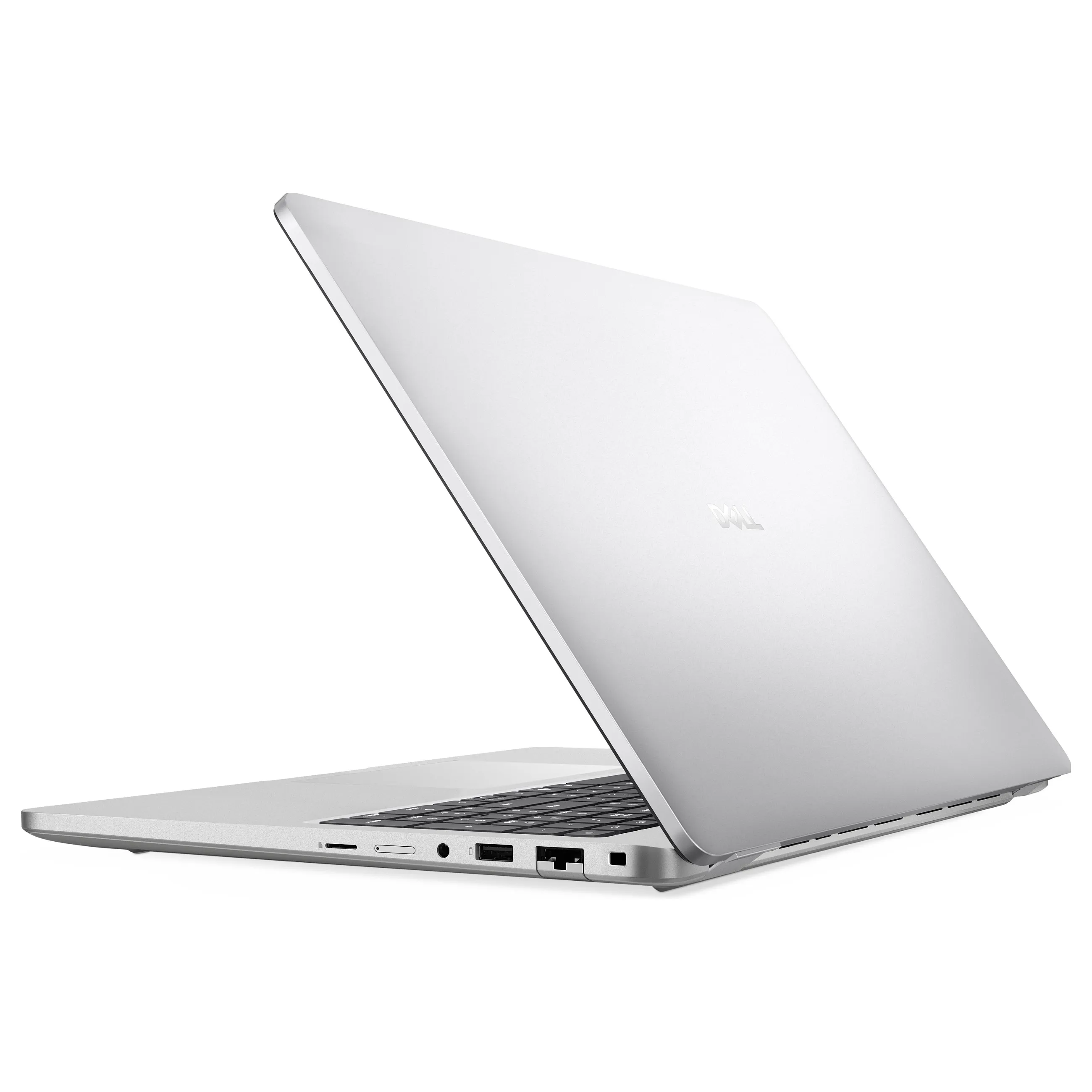

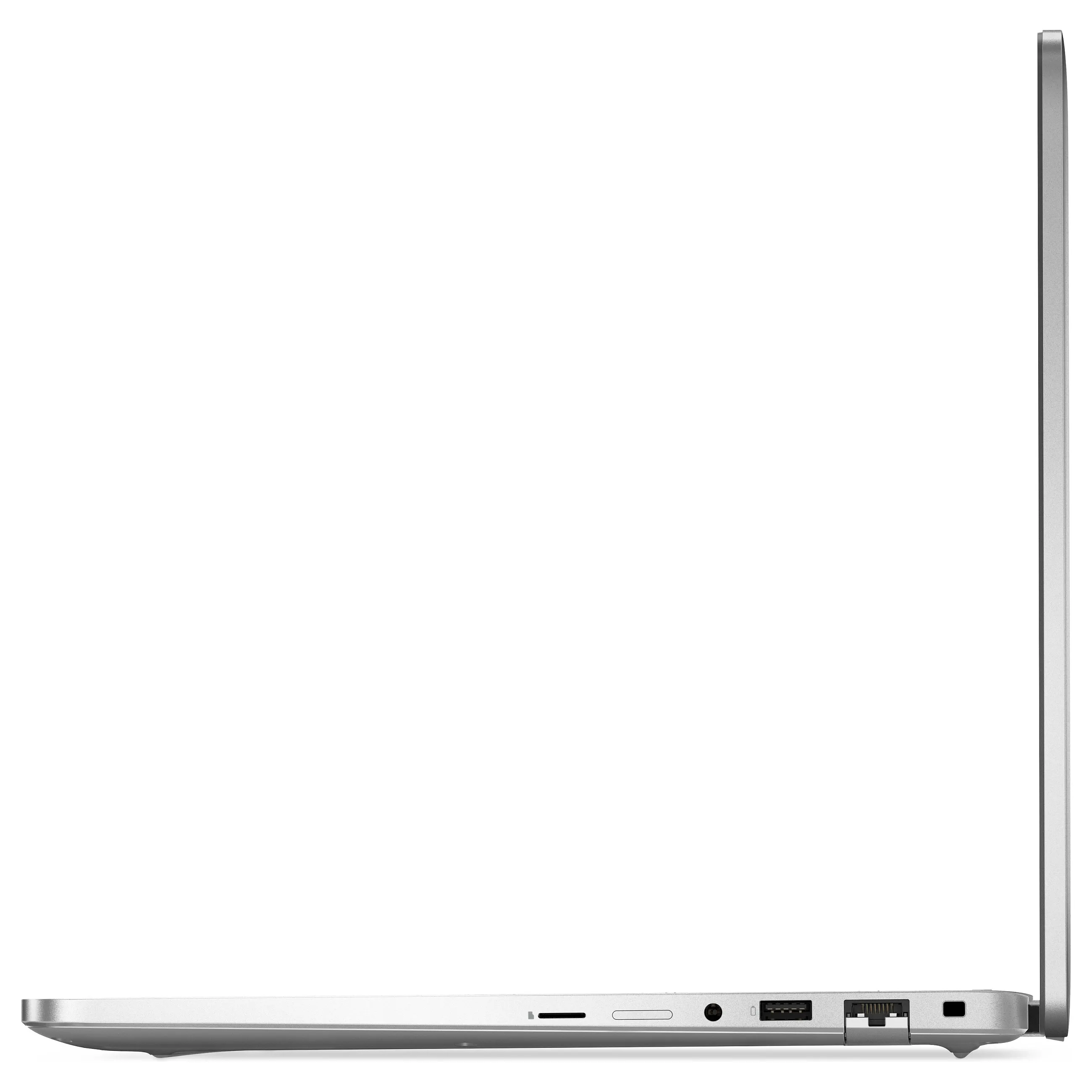

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: PowerShare
Number of USB ports with PowerShare support: 1

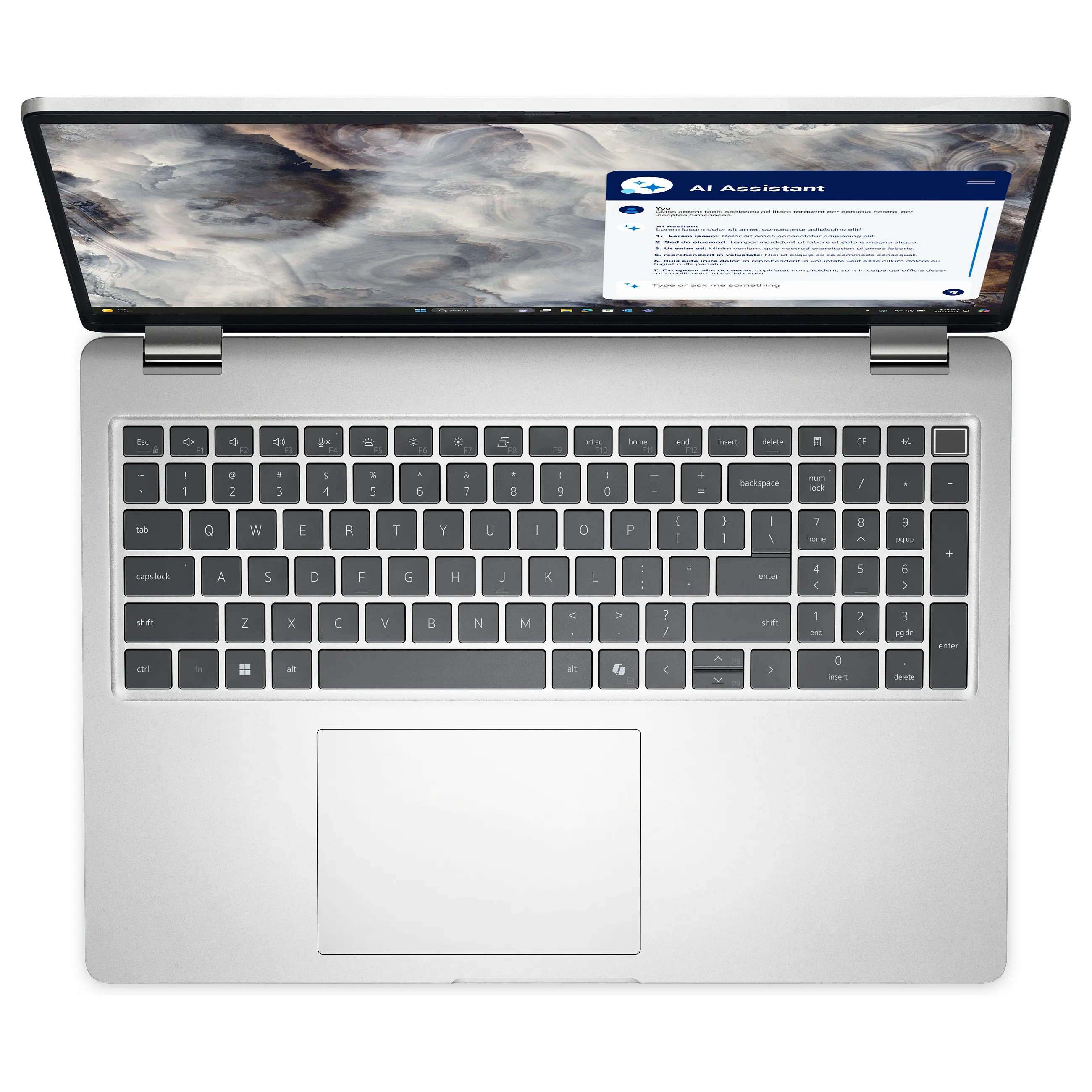

Keyboard
Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard language: German
Feature: Copilot key
Software
Operating system architecture: 64-bit
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
Operating system installed: Windows 11 Pro
Brand-specific features
Brand specific technologies: Control Vault 3+, Express Charge Boost capable, TNR
Battery
Number of battery cells: 3
Battery capacity: 55 Wh
Battery voltage: 11.7 V
Feature: Fast charging
Feature: Battery charge indicator
Battery weight: 220 g
Power
AC adapter power: 65 W
AC adapter frequency: 50 – 60 Hz
AC adapter input voltage: 100 – 240 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 27 W
USB Type-C required charging power (max): 100 W
Feature: USB Power Delivery (USB PD)
USB charging voltage: 5,9,15,20 V
Security
Feature: Cable lock slot
Cable lock slot type: Wedge
Feature: Fingerprint reader
Feature: Smart card reader
Feature: Face recognition
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -40 – 65 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: -15.2 – 3048 m
Non-operating altitude: -15.2 – 10668 m
Operating shock: 110 G
Non-operating shock: 160 G
Operating vibration: 0.66 G
Non-operating vibration: 1.3 G
Weight & dimensions
Width: 358 mm
Depth: 251.4 mm
Height: 21.4 mm
Height (front): 1.99 cm
Height (rear): 2.06 cm
Weight: 1.84 kg
Carbon footprint
Total carbon footprint (kg of CO2e): 116
Carbon emissions, manufacturing (kg of CO2e): 88.51
Carbon emissions, logistics (kg of CO2e): 5.45
Carbon emissions, energy usage (kg of CO2e): 19.37
Carbon emissions, end-of-life (kg of CO2e): 2.55
PAIA version: GaBi version 1, 2024
Packaging content
Feature: AC adapter included
