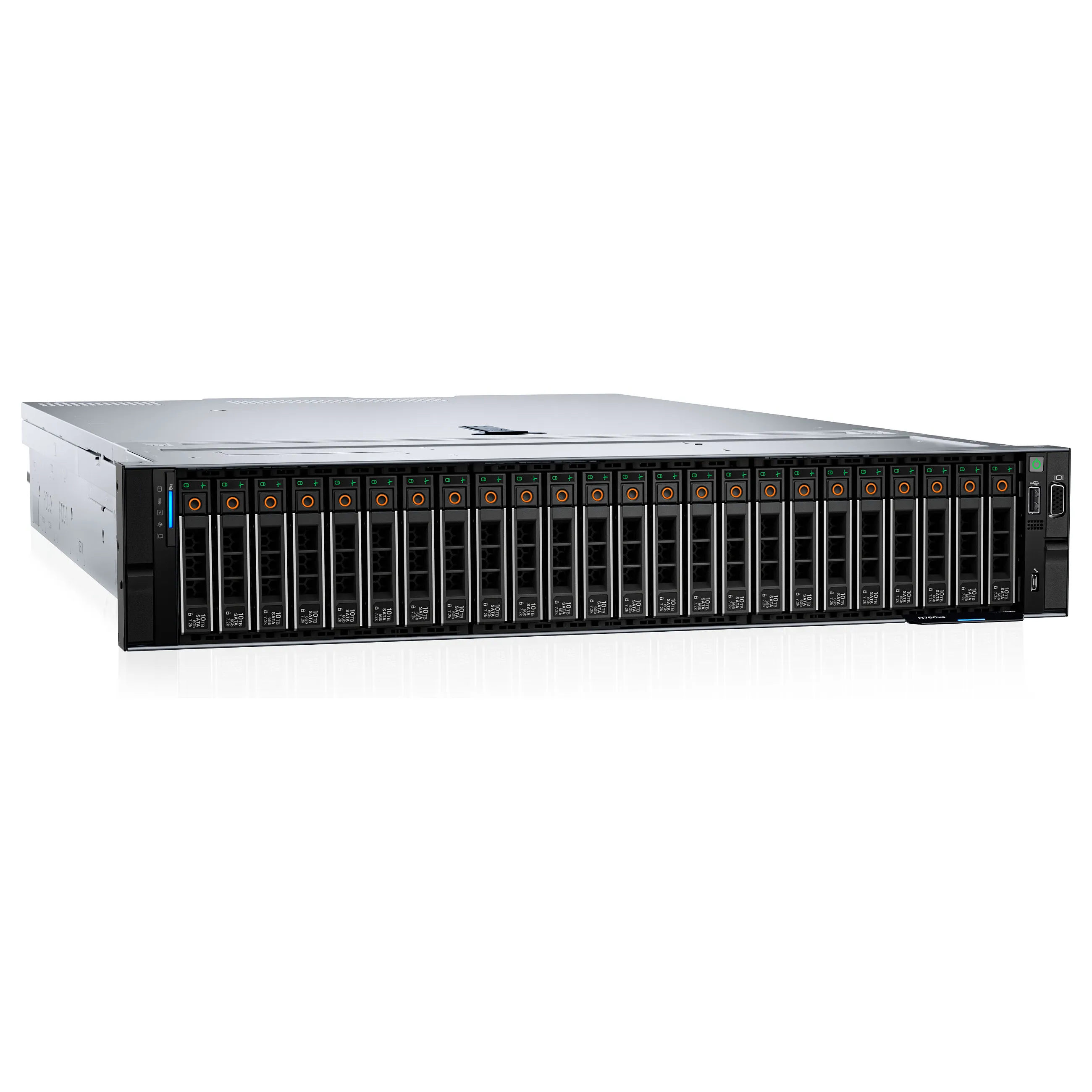

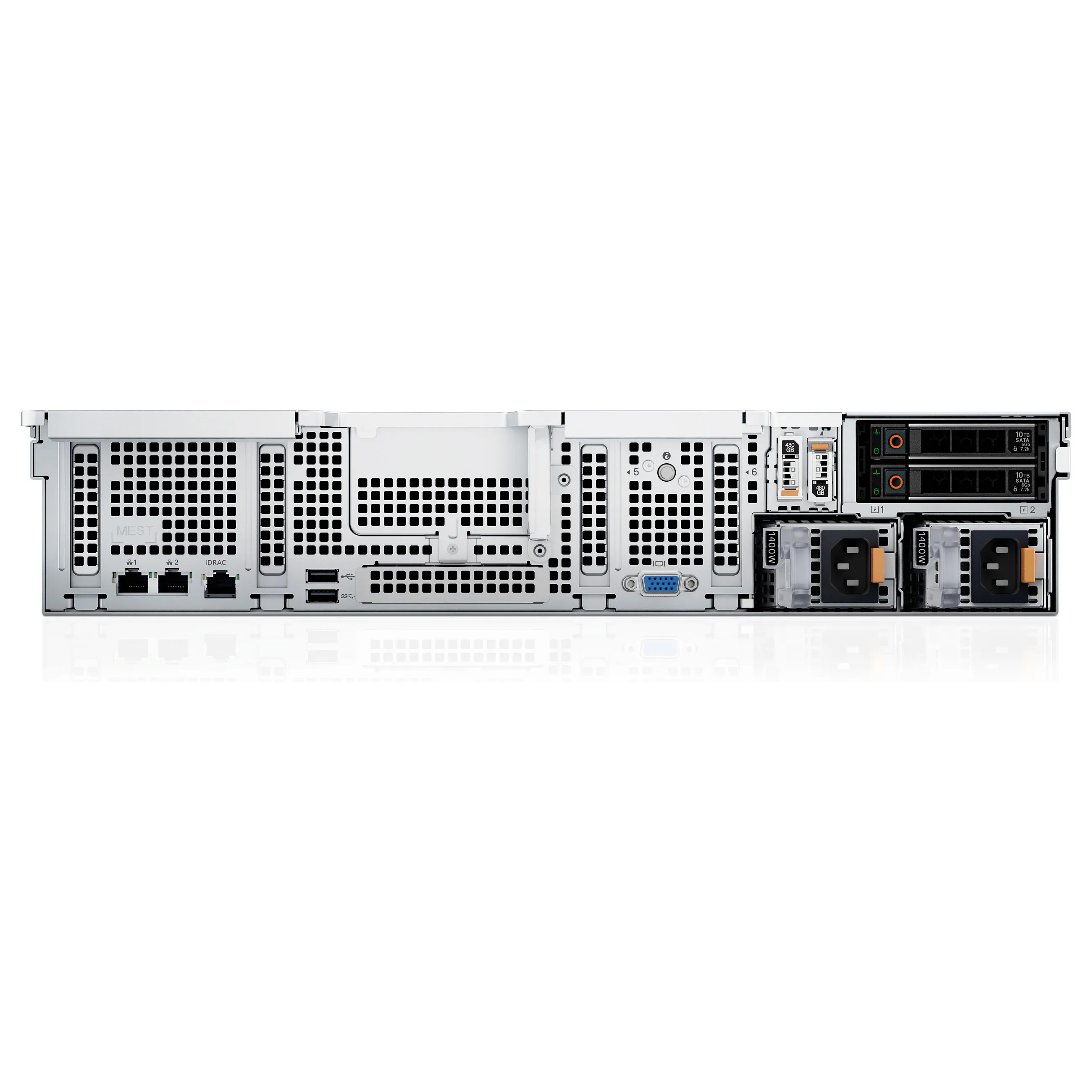

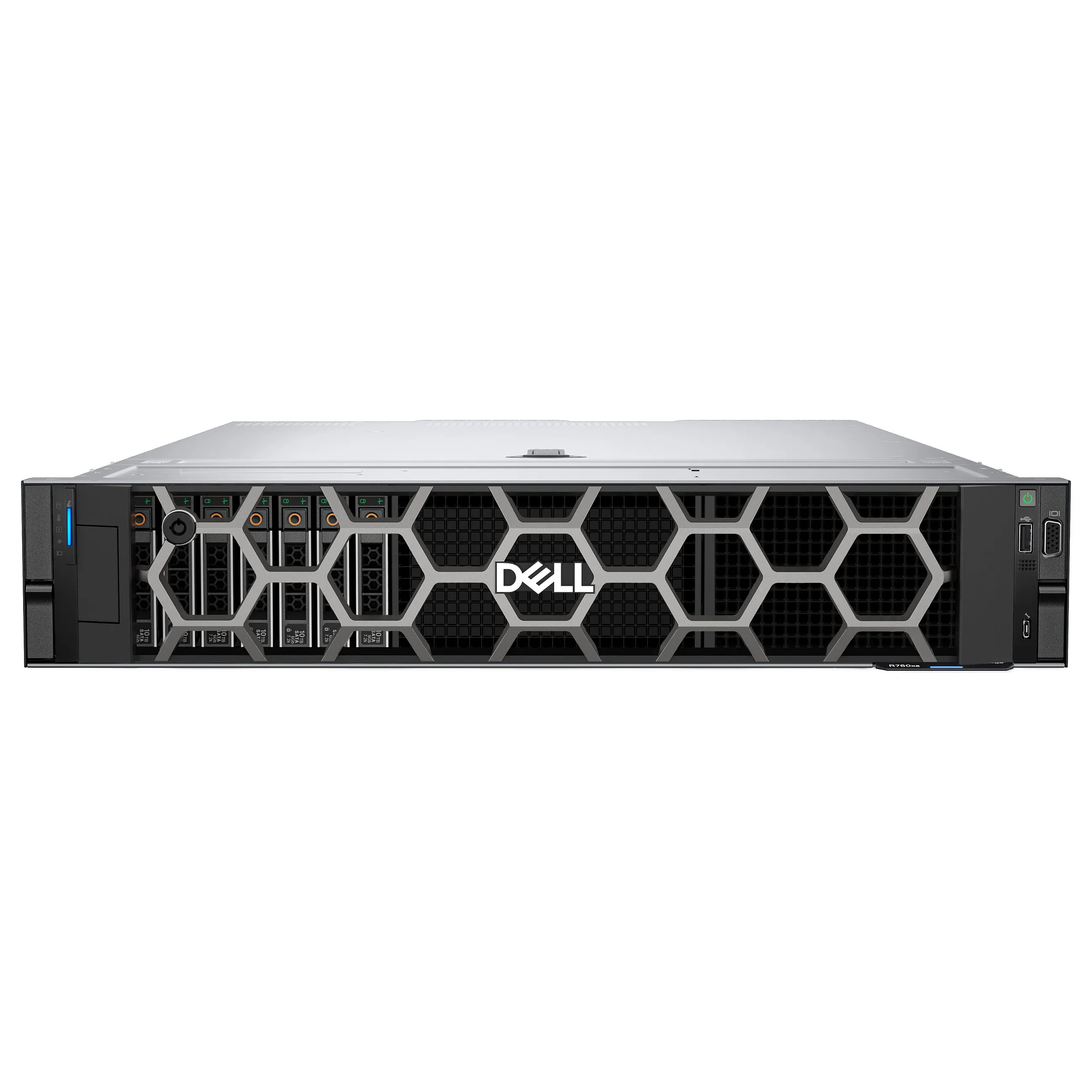

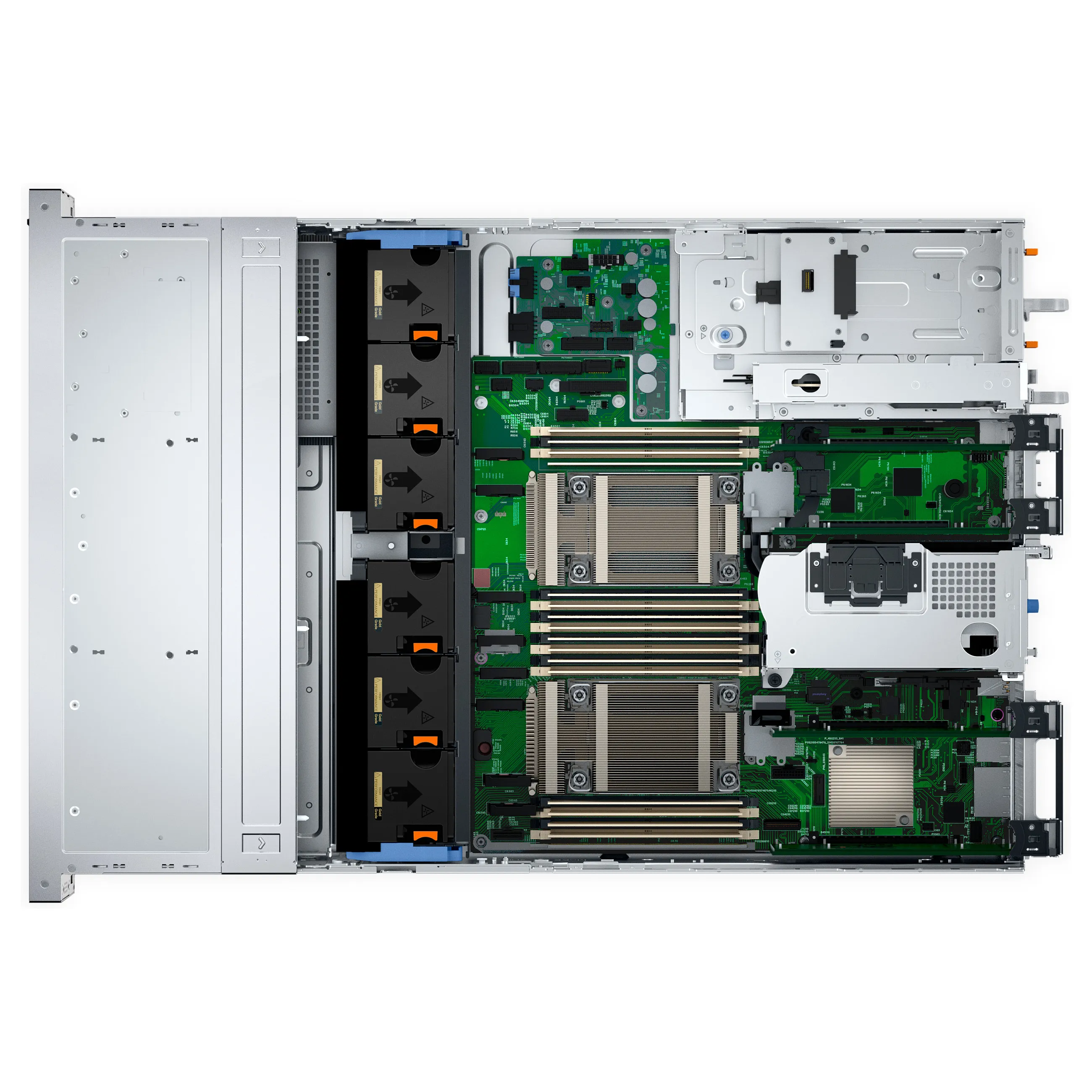

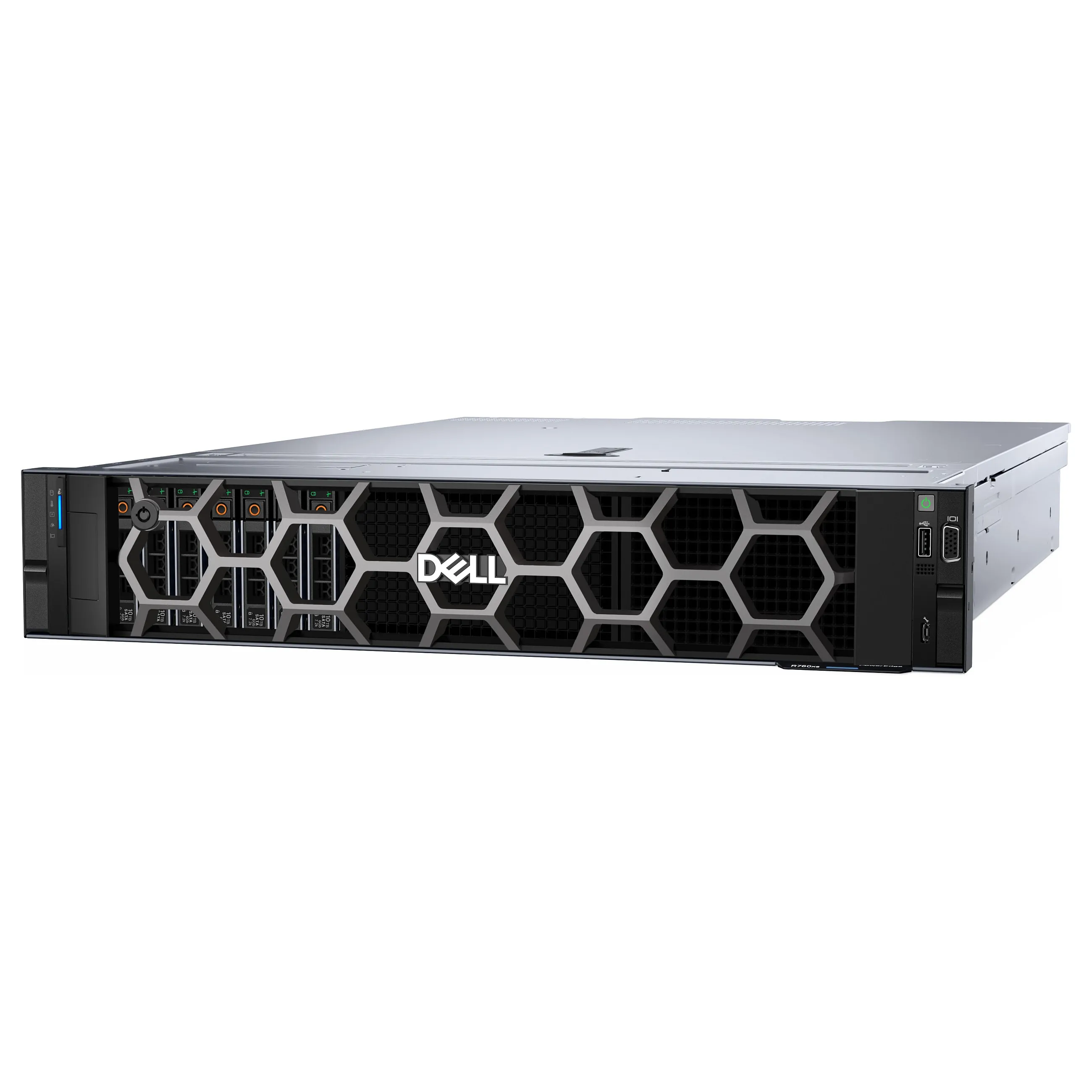

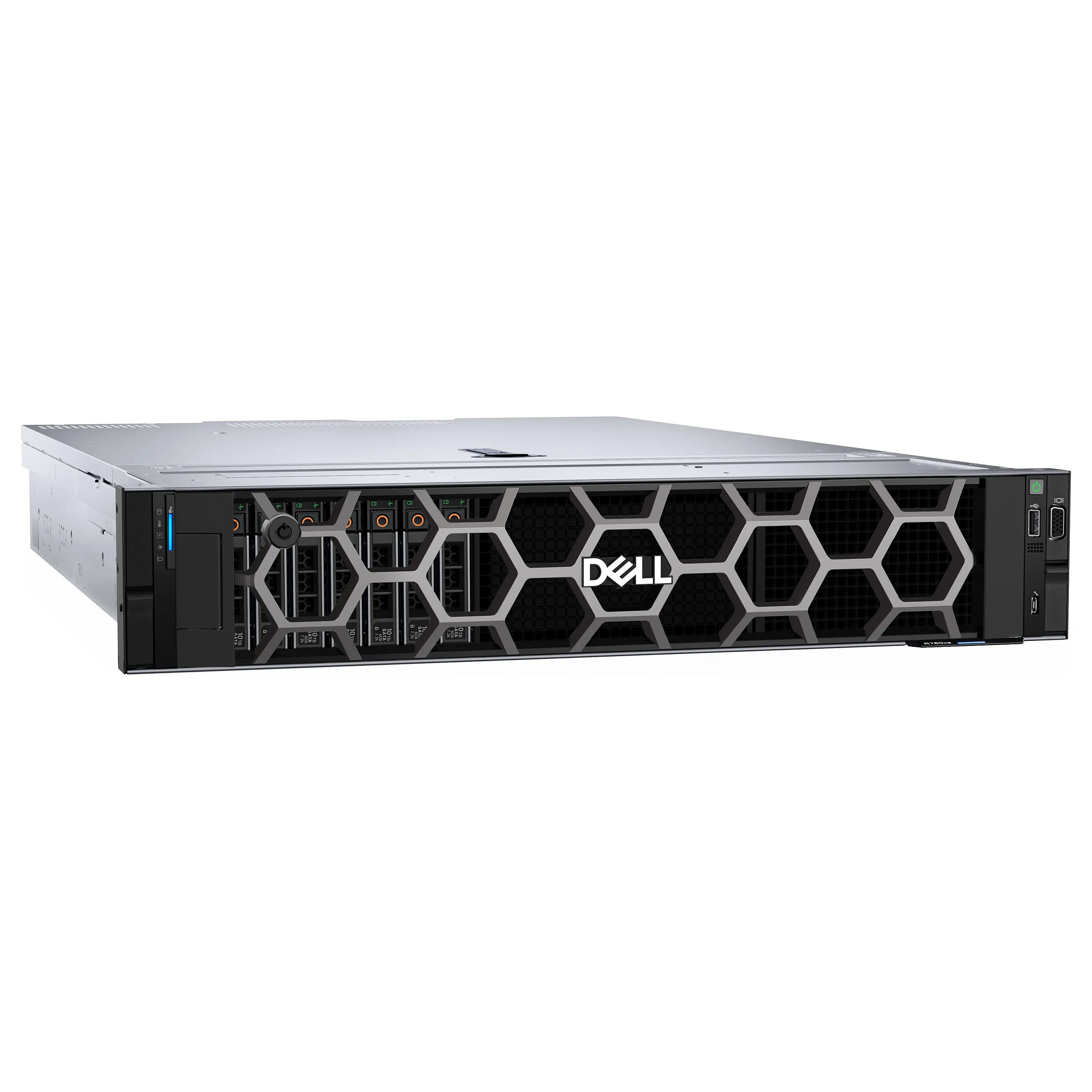

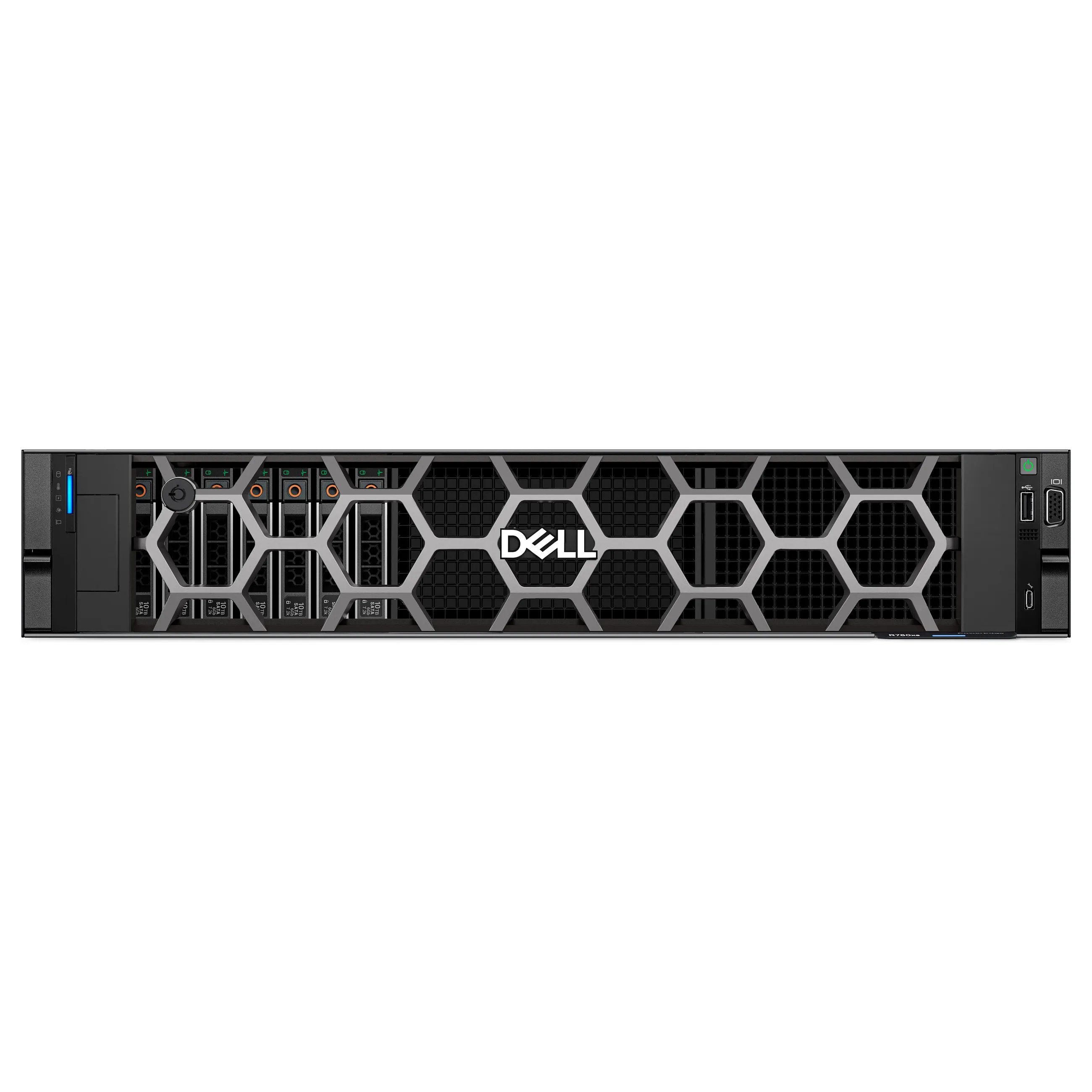

DELL PowerEdge R760XS. Processor family: Intel Xeon Silver, Processor frequency: 2.4 GHz, Processor model: 4510. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 1100 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)
The perfect blend of performance and density
Run the most popular IT applications with ease thanks to the balanced compute and flexible storage of this air-cooled server.
Run the most popular IT applications with ease thanks to the balanced compute and flexible storage of this air-cooled server.
Processor
Processor manufacturer: Intel
Processor family: Intel Xeon Silver
Processor model: 4510
Processor frequency: 2.4 GHz
Processor boost frequency: 4.1 GHz
Processor cores: 12
Processor cache: 30 MB
Motherboard chipset: Intel C741
Number of processors installed: 1
Thermal Design Power (TDP): 150 W
System bus rate: 16 GT/s
Processor threads: 24
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4400 MHz
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory slots: 16x DIMM
Memory layout (slots x size): 1 x 32 GB
Memory data transfer rate: 5600 MT/s
Maximum internal memory: 1 TB
Storage
Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5″
Supported SSD sizes: 3.5″
Number of SSDs supported: 8
Supported RAID controllers: Front PERC H755 Front Loadd
Feature: Hot-Plug support
Optical drive type: No
Drive writes per day (DWPD): 1
Feature: Storage drive adapter included
Storage drive adapter type: 2.5″ – 3.5″
Network
LAN controller: Broadcom 5720
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 2
Expansion slots
PCI Express x8 slots: 1
PCI Express x16 slots: 1
Design
Chassis type: Rack (2U)
Product colour: Black
Feature: Rack rails
Feature: Bezel
Performance
Remote administration: iDRAC9, Enterprise 16G,Dual
Software
Operating system installed: No
Compatible operating systems: Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware vSAN/ESXi
Power
Feature: Redundant power supply (RPS) support
Power supply: 1100 W
Number of redundant power supplies installed: 2
Power supply input voltage: 100-240 V
Operational conditions
Storage temperature (T-T): -40 – 65 °C
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 12000 m
Certificates
80 PLUS certification: 80 PLUS Titanium
Carbon footprint
Total carbon footprint (kg of CO2e): 6654
Total carbon emissions, standard deviation (kg of CO2e): 3747
Carbon emissions, manufacturing (kg of CO2e): 465.78
Carbon emissions, logistics (kg of CO2e): 133.08
Carbon emissions, energy usage (kg of CO2e): 6055.14
PAIA version: PAIA 1.3.2, 2022
Weight & dimensions
Width: 482 mm
Height: 86.8 mm
Packaging content
Packaging content: ReadyRails Sliding Rails With Cable Management Arm,Riser Config 02x Rack Power Cord 2M (C13/C14 12A) – FGA Only
Other features
RAID controller type: Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
Data transfer rate: 6 Gbit/s
Bytes per sector: 512e
Target workload: Read Intensive (RI)
Open Compute Project (OCP): NIC 3.0
Processor manufacturer: Intel
Processor family: Intel Xeon Silver
Processor model: 4510
Processor frequency: 2.4 GHz
Processor boost frequency: 4.1 GHz
Processor cores: 12
Processor cache: 30 MB
Motherboard chipset: Intel C741
Number of processors installed: 1
Thermal Design Power (TDP): 150 W
System bus rate: 16 GT/s
Processor threads: 24
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4400 MHz
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory slots: 16x DIMM
Memory layout (slots x size): 1 x 32 GB
Memory data transfer rate: 5600 MT/s
Maximum internal memory: 1 TB
Storage
Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5″
Supported SSD sizes: 3.5″
Number of SSDs supported: 8
Supported RAID controllers: Front PERC H755 Front Loadd
Feature: Hot-Plug support
Optical drive type: No
Drive writes per day (DWPD): 1
Feature: Storage drive adapter included
Storage drive adapter type: 2.5″ – 3.5″
Network
LAN controller: Broadcom 5720
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 2
Expansion slots
PCI Express x8 slots: 1
PCI Express x16 slots: 1
Design
Chassis type: Rack (2U)
Product colour: Black
Feature: Rack rails
Feature: Bezel
Performance
Remote administration: iDRAC9, Enterprise 16G,Dual
Software
Operating system installed: No
Compatible operating systems: Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware vSAN/ESXi
Power
Feature: Redundant power supply (RPS) support
Power supply: 1100 W
Number of redundant power supplies installed: 2
Power supply input voltage: 100-240 V
Operational conditions
Storage temperature (T-T): -40 – 65 °C
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 12000 m
Certificates
80 PLUS certification: 80 PLUS Titanium
Carbon footprint
Total carbon footprint (kg of CO2e): 6654
Total carbon emissions, standard deviation (kg of CO2e): 3747
Carbon emissions, manufacturing (kg of CO2e): 465.78
Carbon emissions, logistics (kg of CO2e): 133.08
Carbon emissions, energy usage (kg of CO2e): 6055.14
PAIA version: PAIA 1.3.2, 2022
Weight & dimensions
Width: 482 mm
Height: 86.8 mm
Packaging content
Packaging content: ReadyRails Sliding Rails With Cable Management Arm,Riser Config 02x Rack Power Cord 2M (C13/C14 12A) – FGA Only
Other features
RAID controller type: Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
Data transfer rate: 6 Gbit/s
Bytes per sector: 512e
Target workload: Read Intensive (RI)
Open Compute Project (OCP): NIC 3.0
