DELL PowerEdge R360. Processor family: Intel Xeon 6, Processor frequency: 3.5 GHz, Processor model: 6325P. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 32 GB. Total storage capacity: 480 GB. Ethernet LAN. Power supply: 700 W. Chassis type: Rack (1U)
Processing performance, GPU support

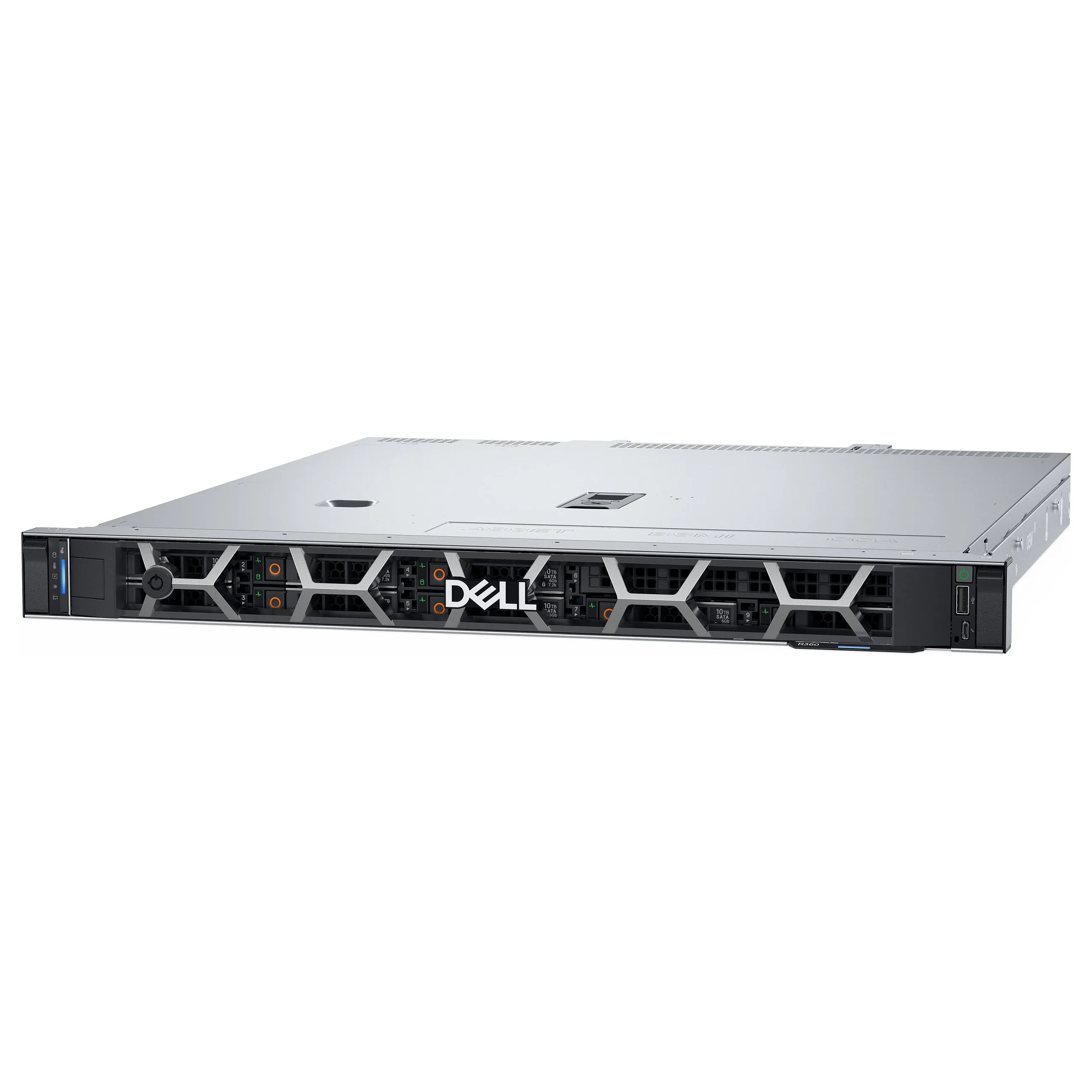

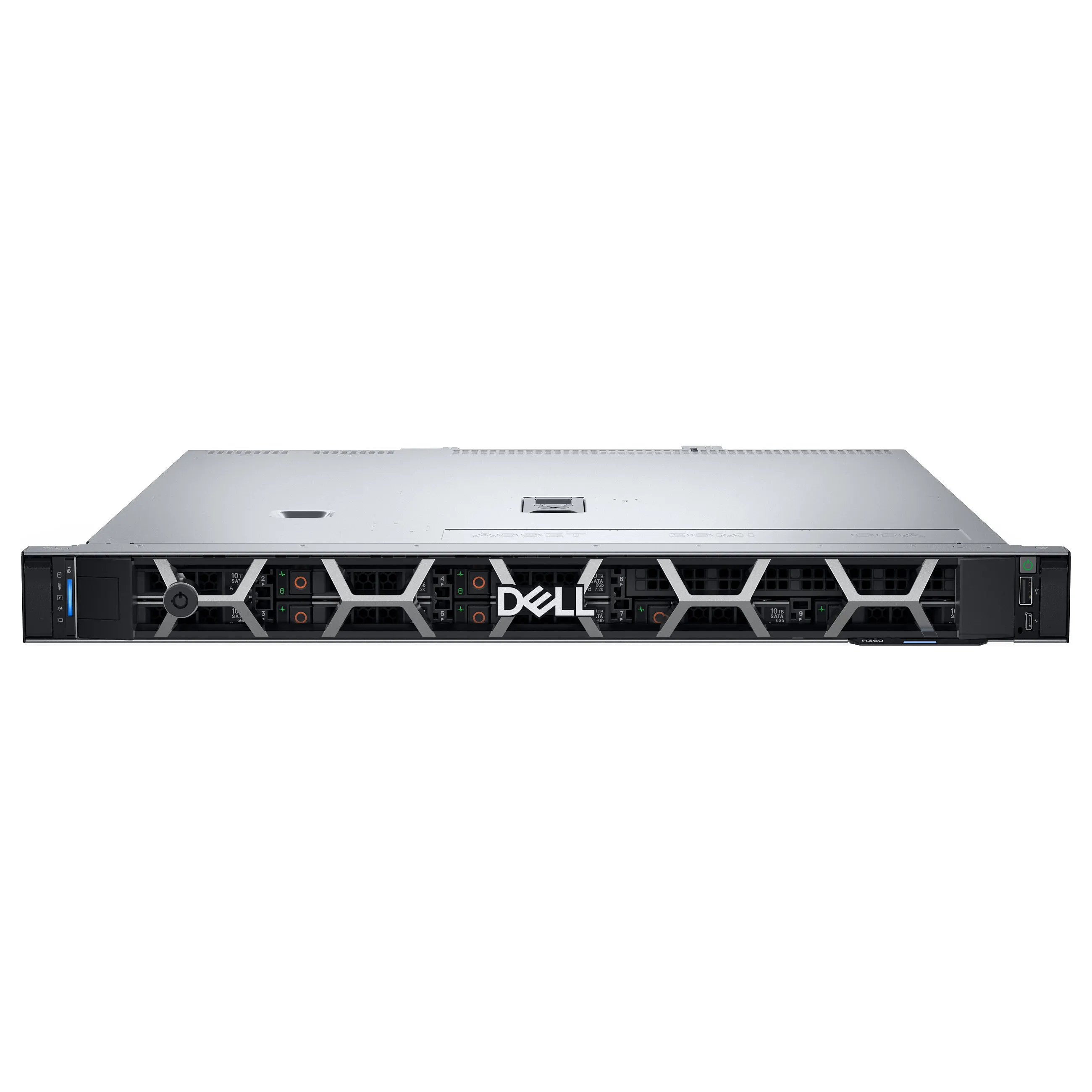

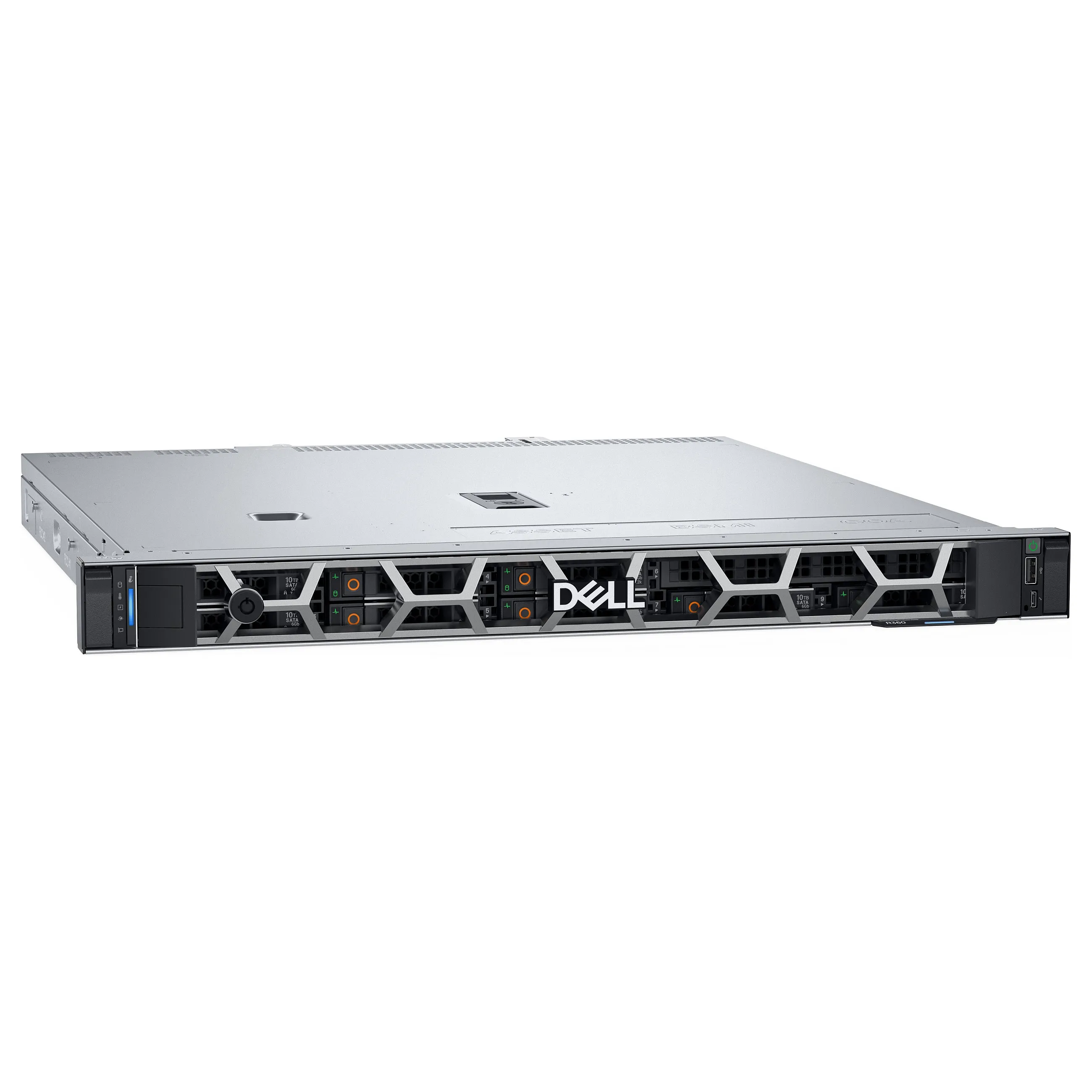

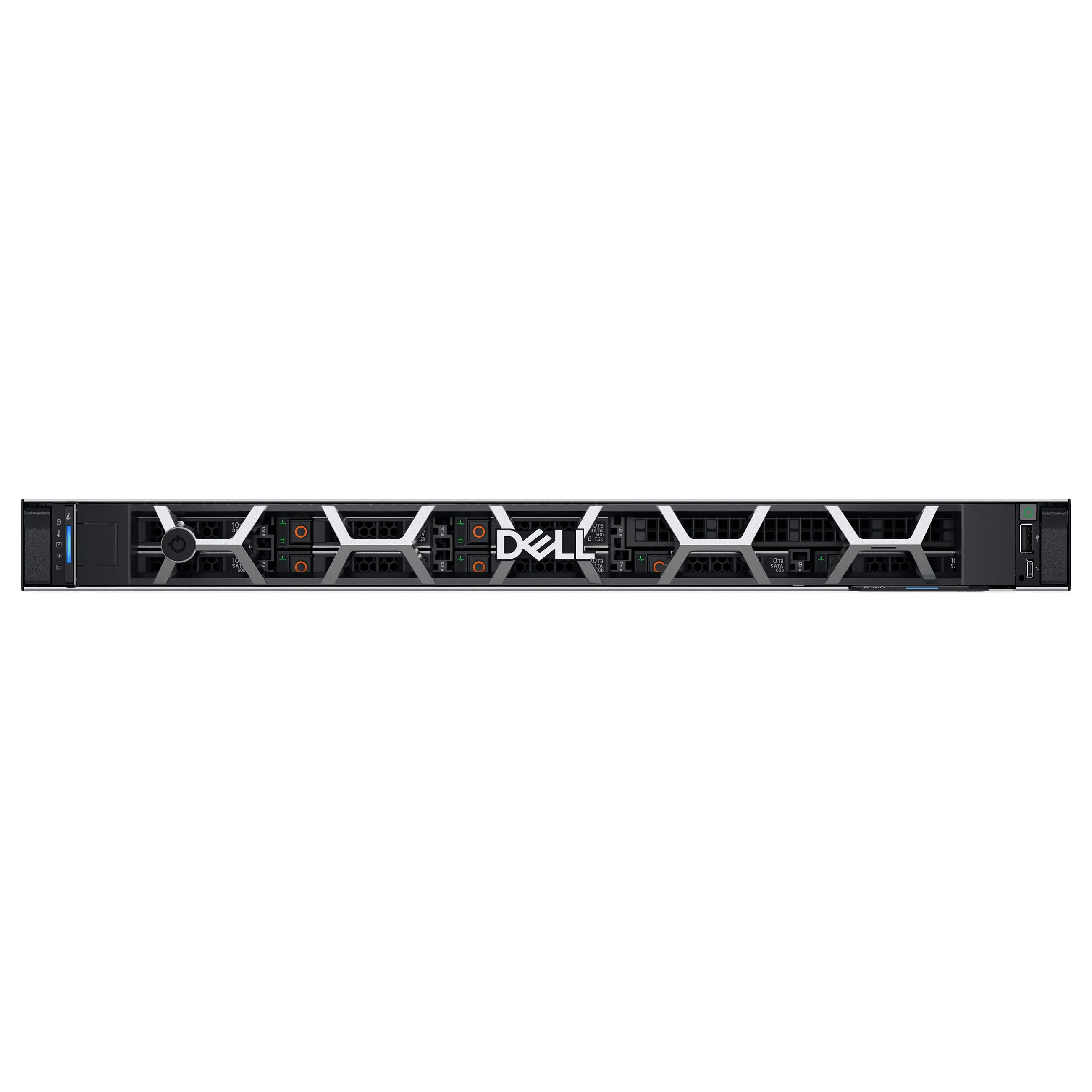

The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.
The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.
Processor
Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6325P
Processor frequency: 3.5 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cache: 12 MB
Thermal Design Power (TDP): 55 W
System bus rate: 16 GT/s
Processor threads: 8
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4800 MHz
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Buffered memory type: Unregistered (unbuffered)
Memory slots: 4x DIMM
Feature: ECC
Memory layout (slots x size): 1 x 32 GB
Memory data transfer rate: 5600 MT/s
Maximum internal memory: 128 GB
Storage
Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5″
Supported SSD sizes: 2.5″
Number of SSDs supported: 8
Supported RAID controllers: Front PERC H755 Front Load
Feature: Hot-Plug support
Drive writes per day (DWPD): 1
Network
LAN controller: Broadcom 5720
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Expansion slots
PCI Express x8 slots: 1
PCI Express x16 slots: 1
Design
Chassis type: Rack (1U)
Product colour: Black
Feature: Bezel
Performance
Remote administration: iDRAC9, Enterprise 16G
Software
Operating system installed: No
Compatible operating systems: Canonical® Ubuntu® Server LTSMicrosoft® Windows Server® with Hyper-VRedHat® Enterprise LinuxSUSE® Linux Enterprise ServerVMware® ESXi®
Power
Power supply: 700 W
Number of main power supplies: 1
Power supply input voltage: 200 – 240 V
Power cable length: 2 m
Power cable connector 1: C13 coupler
Power cable connector 2: C14 coupler
Power cable current: 10 A
Certificates
80 PLUS certification: 80 PLUS Titanium
Carbon footprint
Total carbon footprint (kg of CO2e): 1140
Total carbon emissions, standard deviation (kg of CO2e): 943
Carbon emissions, manufacturing (kg of CO2e): 307.8
Carbon emissions, logistics (kg of CO2e): 102.6
Carbon emissions, energy usage (kg of CO2e): 718.2
Carbon emissions, end-of-life (kg of CO2e): 11.4
PAIA version: PAIA 1.4.0, 2024
Weight & dimensions
Width: 482 mm
Height: 42.8 mm
Packaging content
Packaging content: ReadyRails Sliding Rails Without Cable Management Arm
Other features
Data transfer rate: 6 Gbit/s
Bytes per sector: 512e
Target workload: Read Intensive (RI)
Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6325P
Processor frequency: 3.5 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cache: 12 MB
Thermal Design Power (TDP): 55 W
System bus rate: 16 GT/s
Processor threads: 8
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4800 MHz
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Buffered memory type: Unregistered (unbuffered)
Memory slots: 4x DIMM
Feature: ECC
Memory layout (slots x size): 1 x 32 GB
Memory data transfer rate: 5600 MT/s
Maximum internal memory: 128 GB
Storage
Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5″
Supported SSD sizes: 2.5″
Number of SSDs supported: 8
Supported RAID controllers: Front PERC H755 Front Load
Feature: Hot-Plug support
Drive writes per day (DWPD): 1
Network
LAN controller: Broadcom 5720
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Expansion slots
PCI Express x8 slots: 1
PCI Express x16 slots: 1
Design
Chassis type: Rack (1U)
Product colour: Black
Feature: Bezel
Performance
Remote administration: iDRAC9, Enterprise 16G
Software
Operating system installed: No
Compatible operating systems: Canonical® Ubuntu® Server LTSMicrosoft® Windows Server® with Hyper-VRedHat® Enterprise LinuxSUSE® Linux Enterprise ServerVMware® ESXi®
Power
Power supply: 700 W
Number of main power supplies: 1
Power supply input voltage: 200 – 240 V
Power cable length: 2 m
Power cable connector 1: C13 coupler
Power cable connector 2: C14 coupler
Power cable current: 10 A
Certificates
80 PLUS certification: 80 PLUS Titanium
Carbon footprint
Total carbon footprint (kg of CO2e): 1140
Total carbon emissions, standard deviation (kg of CO2e): 943
Carbon emissions, manufacturing (kg of CO2e): 307.8
Carbon emissions, logistics (kg of CO2e): 102.6
Carbon emissions, energy usage (kg of CO2e): 718.2
Carbon emissions, end-of-life (kg of CO2e): 11.4
PAIA version: PAIA 1.4.0, 2024
Weight & dimensions
Width: 482 mm
Height: 42.8 mm
Packaging content
Packaging content: ReadyRails Sliding Rails Without Cable Management Arm
Other features
Data transfer rate: 6 Gbit/s
Bytes per sector: 512e
Target workload: Read Intensive (RI)
