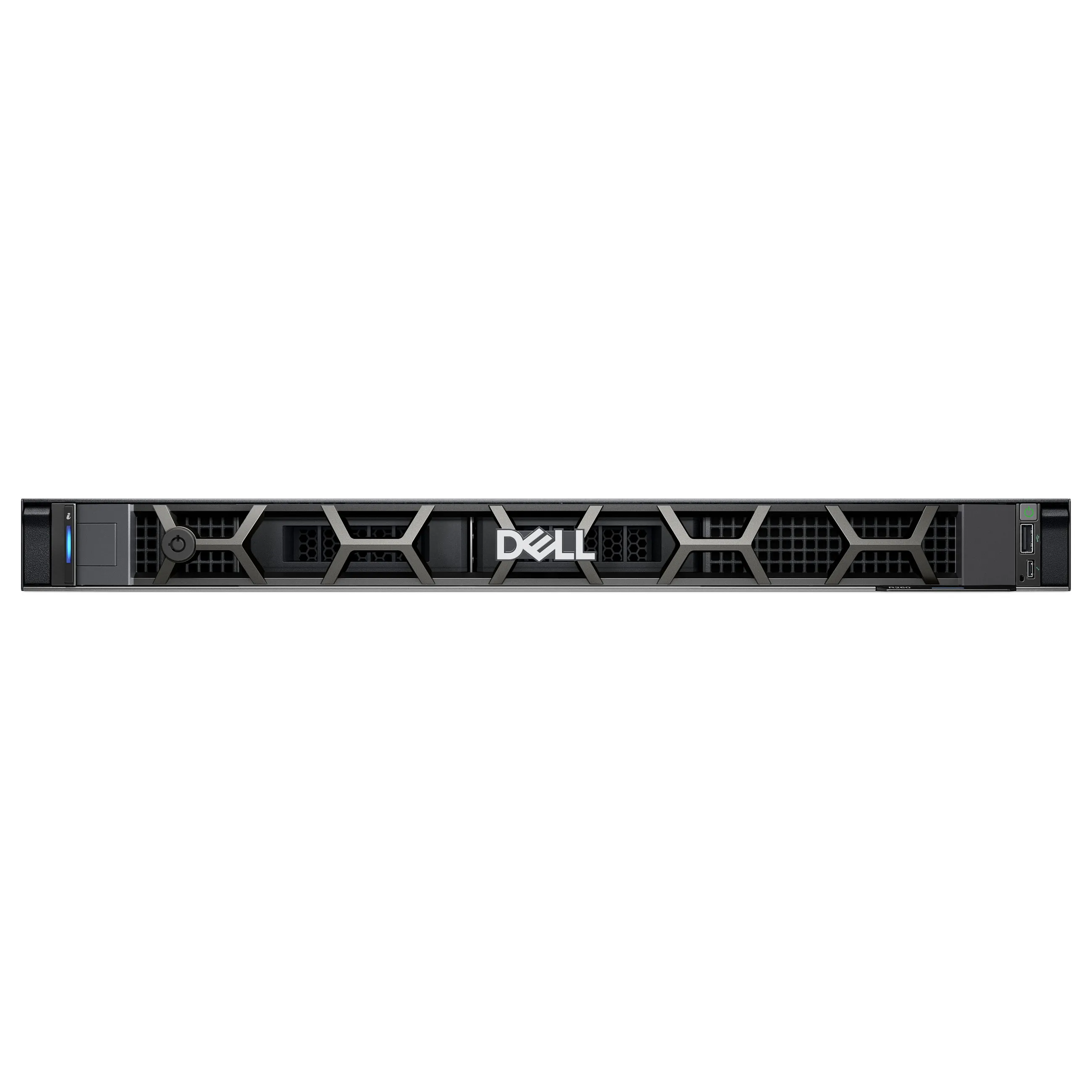

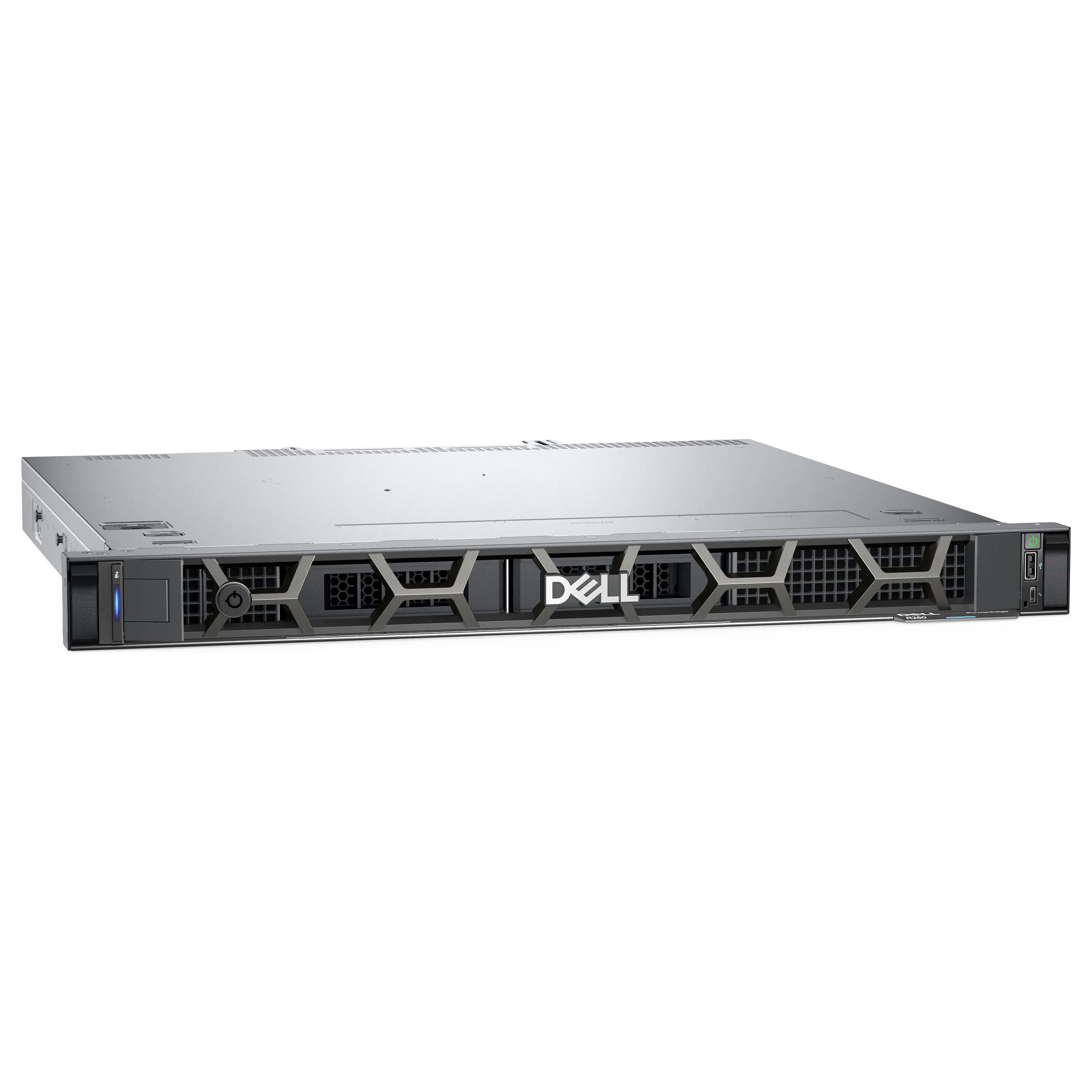

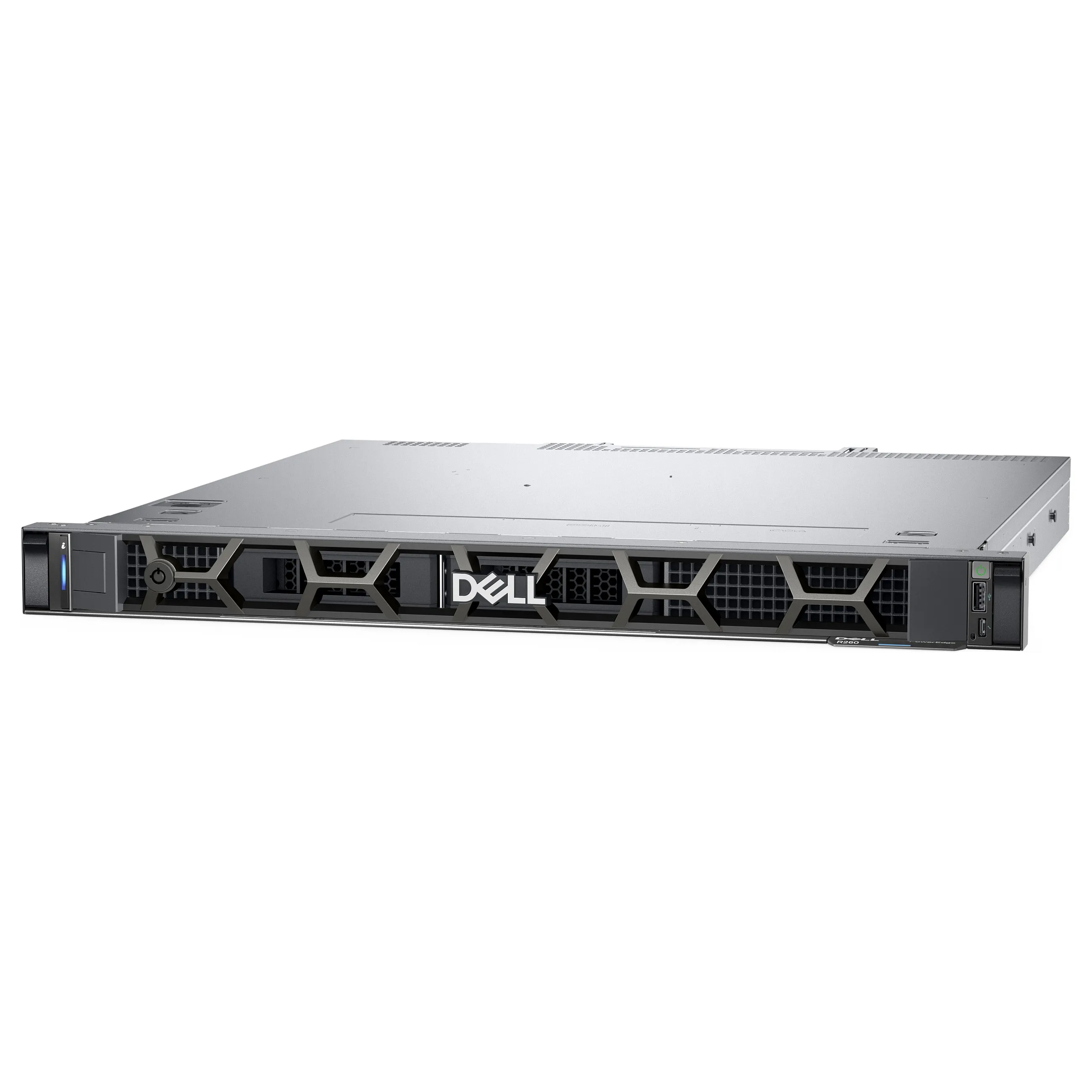

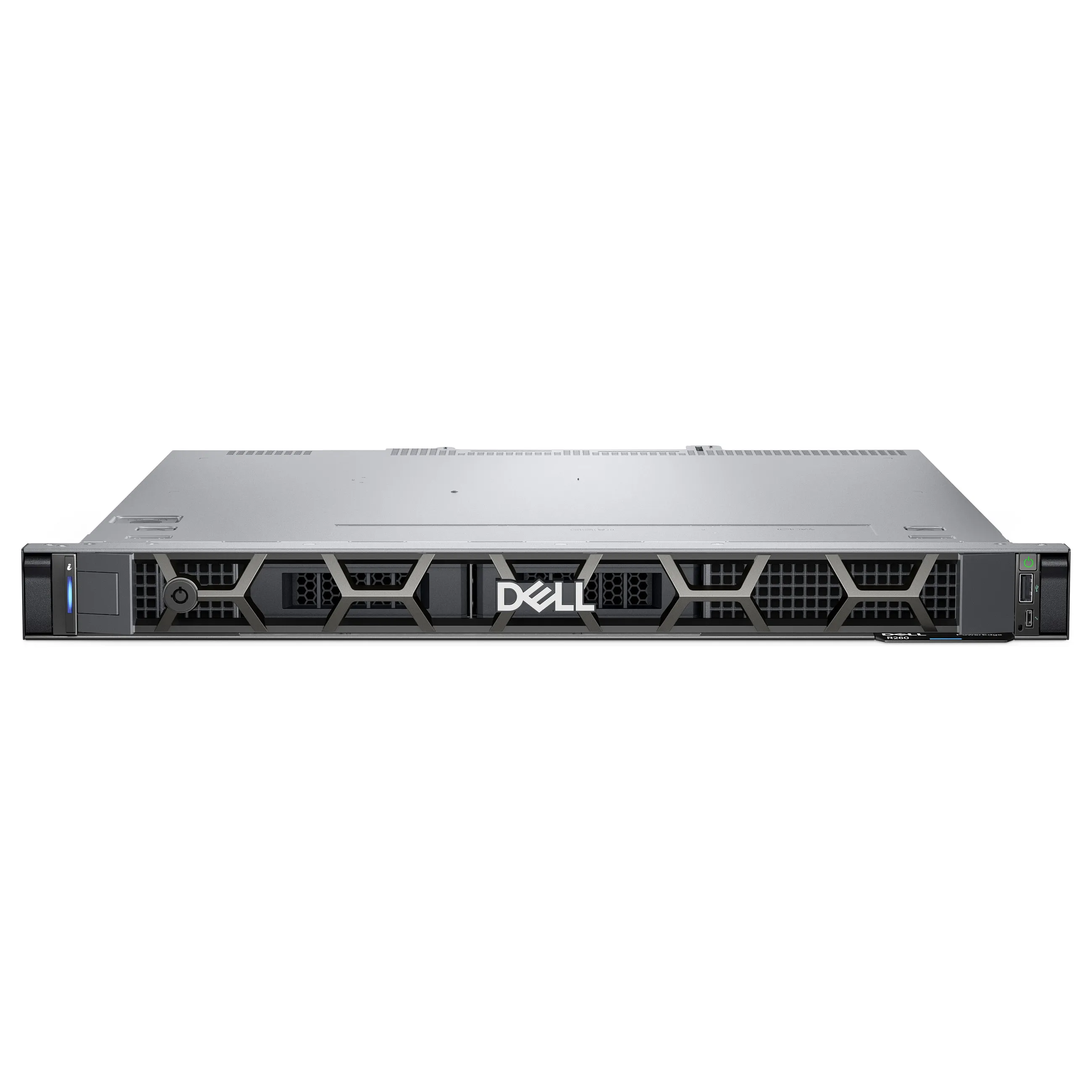

DELL PowerEdge R260. Processor family: Intel Xeon 6, Processor frequency: 3.5 GHz, Processor model: 6325P. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 480 GB. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 700 W. Chassis type: Rack (1U)
Processor
Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6325P
Processor frequency: 3.5 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Number of processors installed: 1
Thermal Design Power (TDP): 55 W
System bus rate: 16 GT/s
Processor threads: 8
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 4800 MHz
Memory
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Maximum internal memory: 128 GB
Storage
Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5″
Supported SSD sizes: 2.5″
Number of SSDs supported: 6
Feature: RAID support
Supported RAID controllers: PERC H355 Adapter LP
Feature: Hot-Plug support
Optical drive type: No
Drive writes per day (DWPD): 3
Network
Feature: Ethernet LAN
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
Design
Chassis type: Rack (1U)
Product colour: Black
Feature: Rack rails
Performance
Feature: Trusted Platform Module (TPM)
Software
Operating system installed: No
Power
Power supply: 700 W
Number of main power supplies: 1
Power supply input voltage: 200 – 240 V
Operational conditions
Storage temperature (T-T): -40 – 65 °C
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 3048 m
Non-operating altitude: 0 – 12000 m
Certificates
80 PLUS certification: 80 PLUS Titanium
Carbon footprint
Total carbon footprint (kg of CO2e): 950
Total carbon emissions, standard deviation (kg of CO2e): 711
Carbon emissions, manufacturing (kg of CO2e): 304
Carbon emissions, logistics (kg of CO2e): 95
Carbon emissions, energy usage (kg of CO2e): 541.5
Carbon emissions, end-of-life (kg of CO2e): 9.5
PAIA version: PAIA 1.3.2, 2024
Weight & dimensions
Width: 482 mm
Height: 42.8 mm
Packaging content
Packaging content: Riser Config 1, Gen4 Riser
Other features
Data transfer rate: 6 Gbit/s
Bytes per sector: 512e
Target workload: Read Intensive (RI)
