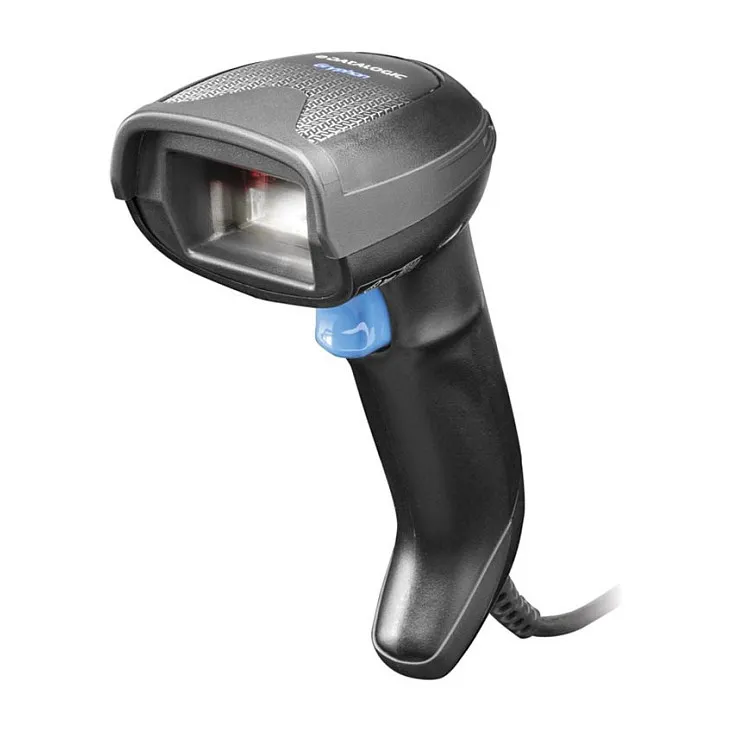

Datalogic Gryphon I GD4500. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET,…. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Type: Handheld bar code reader
Scanner type: 1D/2D
Linear (1D) barcodes supported: Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Light levels (direct sunlight): 0 – 100000 lx
Wavelength: 650 nm
Tilt reading angle: 0 – 360°
Pitch reading angle: -65 – 65°
Yaw reading angle: -65 – 65°
Motion tolerance (cm/s): 88.9
Ports & interfaces
Connectivity technology: Wired
Standard interfaces: USB
Performance
International Protection (IP) code: IP52
Protection features: Shock resistant
Image formats supported: BMP, JPEG
Product colour: Black
Certification: IEC 60825 Class 2
Power
Power source type: DC
Input voltage: 5 V
Power consumption: 300 mA
Weight & dimensions
Width: 68 mm
Depth: 109 mm
Height: 166 mm
Weight: 161 g
Packaging data
Cables included: USB
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84716070
