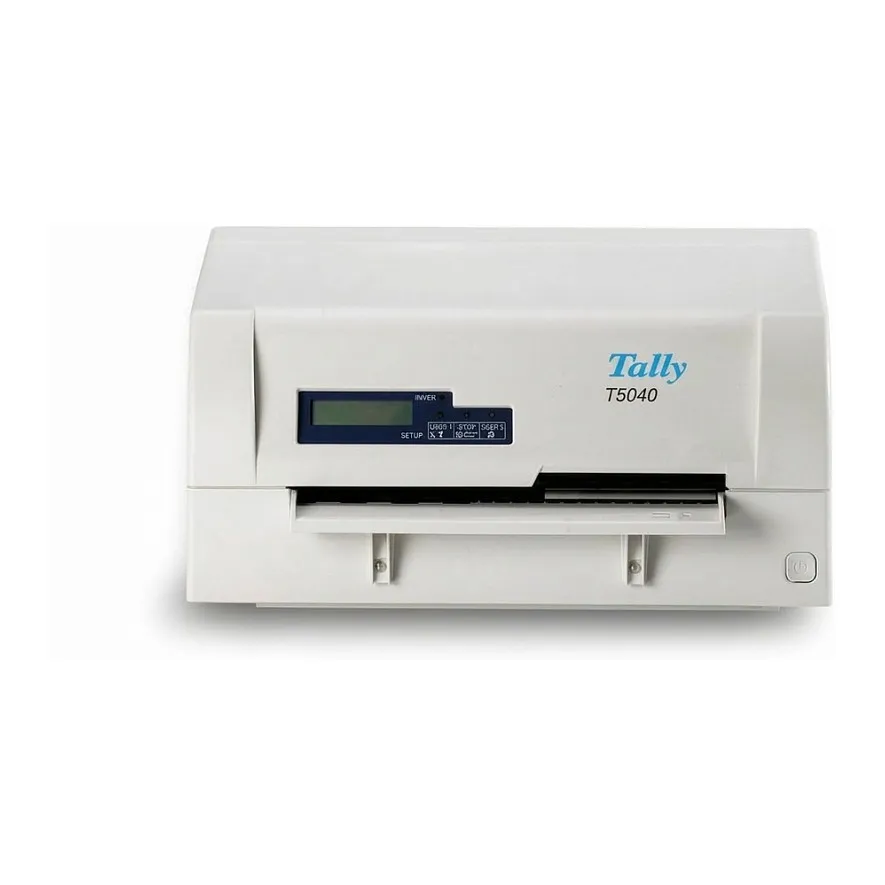

DASCOM Europe 043 802 dot matrix printer

Printing
Maximum resolution: 360 x 360 DPI
Maximum print speed: 600 cps
Maximum print speed (draft): 400 cps
Maximum print speed (LQ): 133 cps
Character density: 10 cpi
Maximum number of copies: 4 copies
Bitmap fonts: Courier, Draft, Gothic, OCR-A, OCR-B
Paper handling
Maximum print size: 210 x 297 mm
Paper feed: Manual
Paper tray media types: Cut sheet
Features
Sound pressure level (printing): 55 dB
Page description languages: Epson ESC/P2, IBM ProPrinter
Ports & interfaces
Standard interfaces: Ethernet, Parallel, RS-232C, USB 2.0
Cabling technology: 10/100Base-T(X)
Endurance
Print head: 24-pin
Print direction: Bidirectional
Print head life: 400 million characters
Ribbon life: 10 million characters
Mean time between failures (MTBF): 10000 h
Power
Power consumption (typical): 73 W
Power consumption (standby): 9 W
AC input voltage: 230 V
AC input frequency: 50 – 60 Hz
Operational conditions
Operating temperature (T-T): 10 – 40 °C
Operating relative humidity (H-H): 15 – 75%
Packaging data
Package width: 378 mm
Package depth: 280 mm
Package height: 168 mm
Package weight: 9.8 kg
Other features
Dimensions (WxDxH): 378 x 280 x 168 mm
Connectivity technology: Wired
Print technology: Dot matrix
