D-Link GO-SW-8G/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Connect All of Your Devices with Gigabit Speed
Expand your wired home network with the D-Link 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.

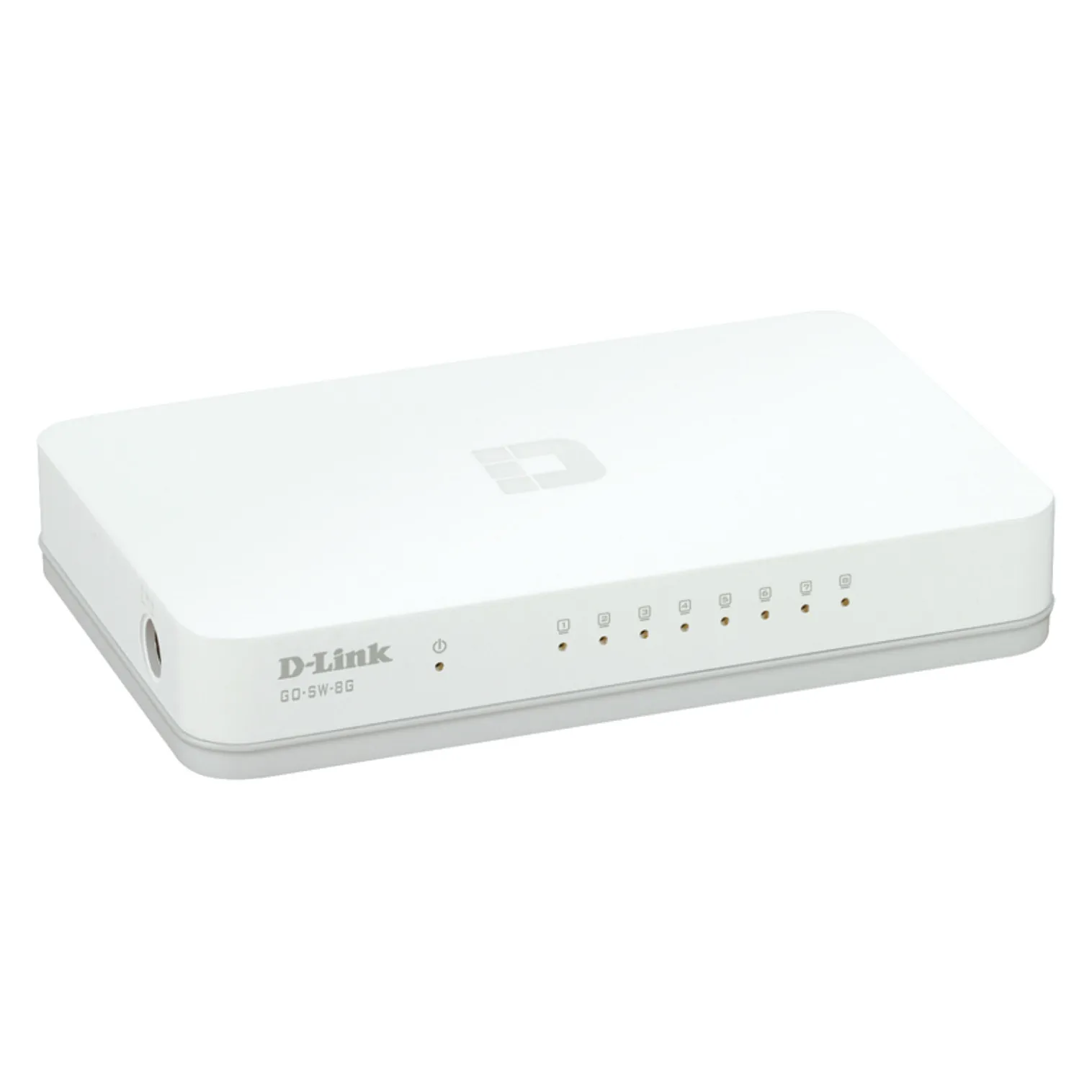

Compact Design
This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.
Effortless High Speed Networking

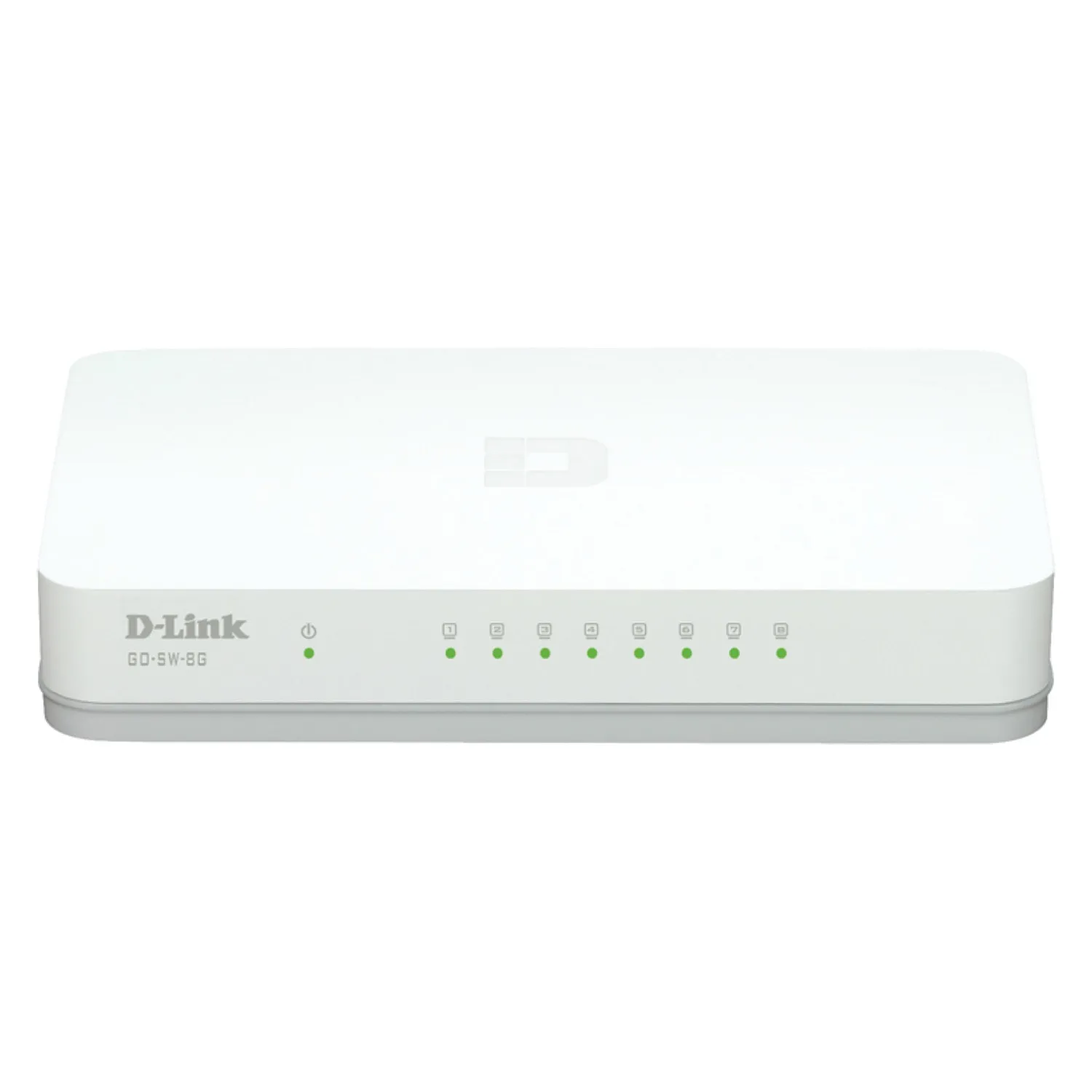

Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The GO-SW-8G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.
Plug and Play Installation
TheD-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
D-Link Green Technology
The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Switch type: Unmanaged
Ports & interfaces

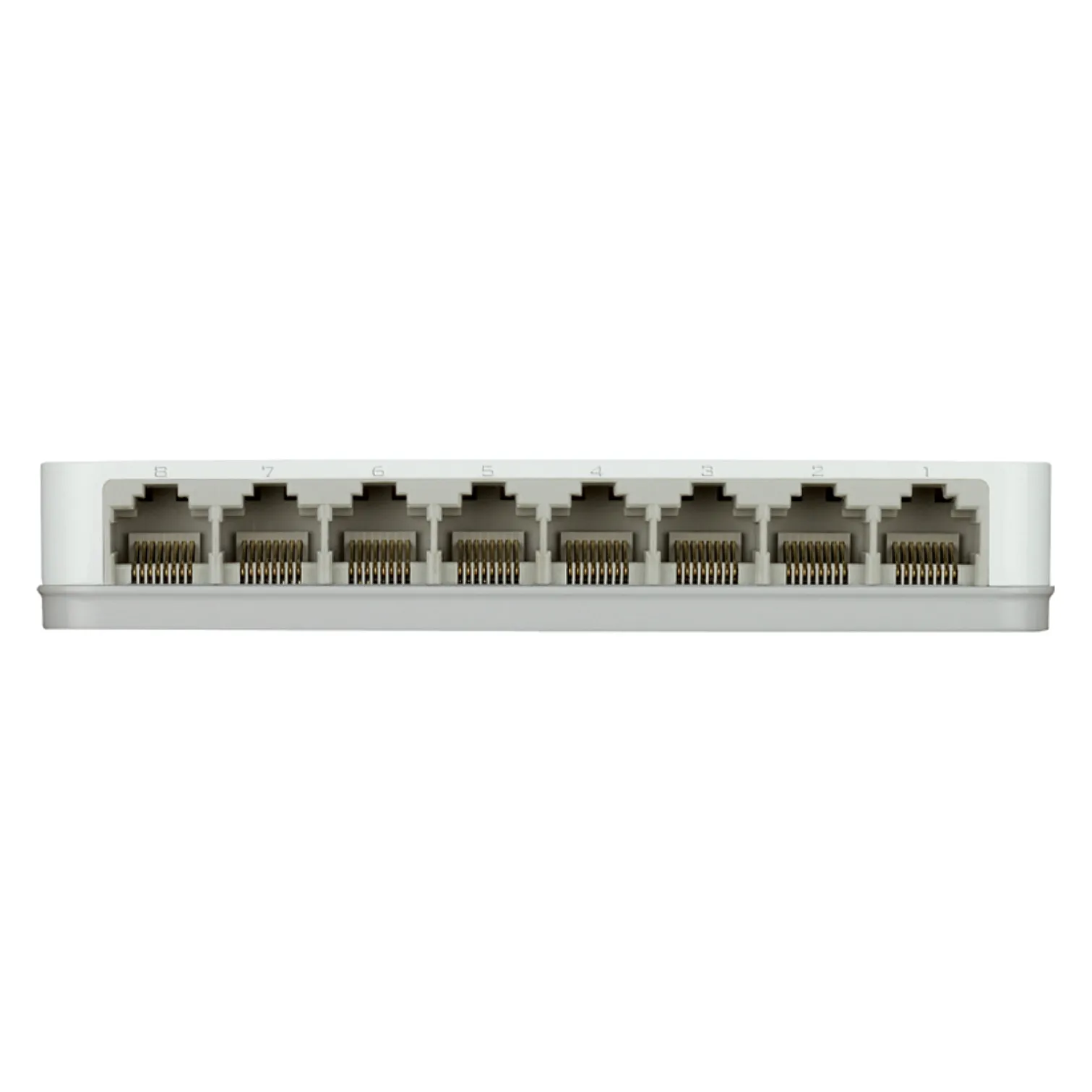

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8

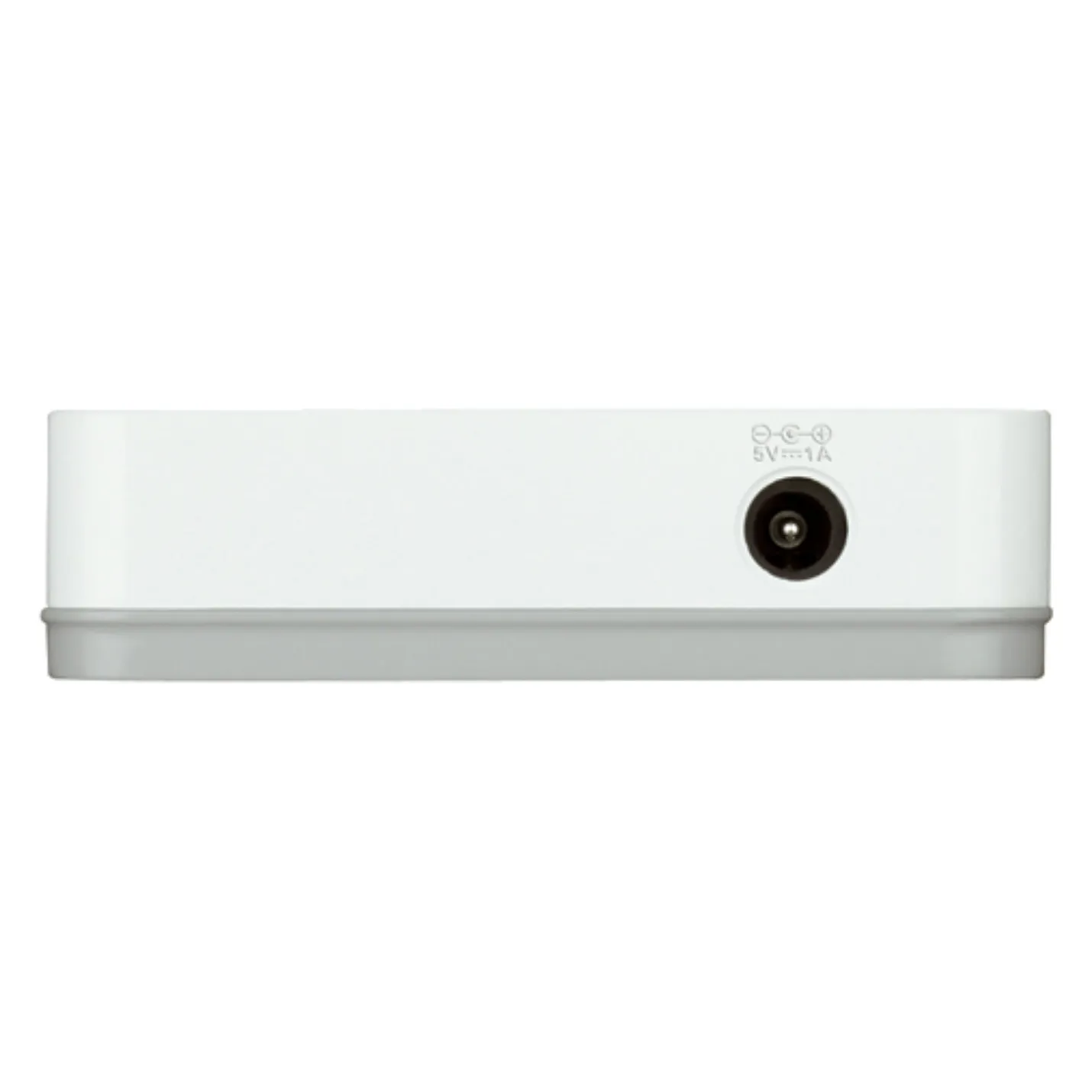

Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: MAC address auto-learning supported
Data transmission
Switching capacity: 16 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Protocols
Supported network protocols: CSMA/CD
Design
Product colour: White
LED indicators: Yes
Performance
Buffer size: 128 KB
Mean time between failures (MTBF): 412433 h
Power
Output voltage: 5 V
Output current: 1 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 128 mm
Depth: 68.5 mm
Height: 25.4 mm
Weight: 195 g
Packaging content
Feature: User guide
Packaging data
Feature: AC adapter included
Package width: 104 mm
Package depth: 158 mm
Package height: 94 mm
Package weight: 281 g
Technical details
Shipping (inner) case height: 19.3 cm
Shipping (inner) case width: 23 cm
Shipping (inner) case length: 49.8 cm
Shipping (inner) case net weight: 1.95 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 348.5 kg
Master (outer) cases per pallet (air): 100 pc(s)
Products per pallet (air): 1000 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 2.06 m
Pallet gross weight (sea): 348.5 kg
Master (outer) cases per pallet (sea): 100 pc(s)
Products per pallet (sea): 1000 pc(s)
Pallet height (sea): 2.06 m
Shipping (inner) case gross weight: 3.3 kg
Certificates
Certification: FCC cUL/ULICES-003CCCCEAnatelC-TickLVDVCCI
Logistics data
Harmonized System (HS) code: 85176990
