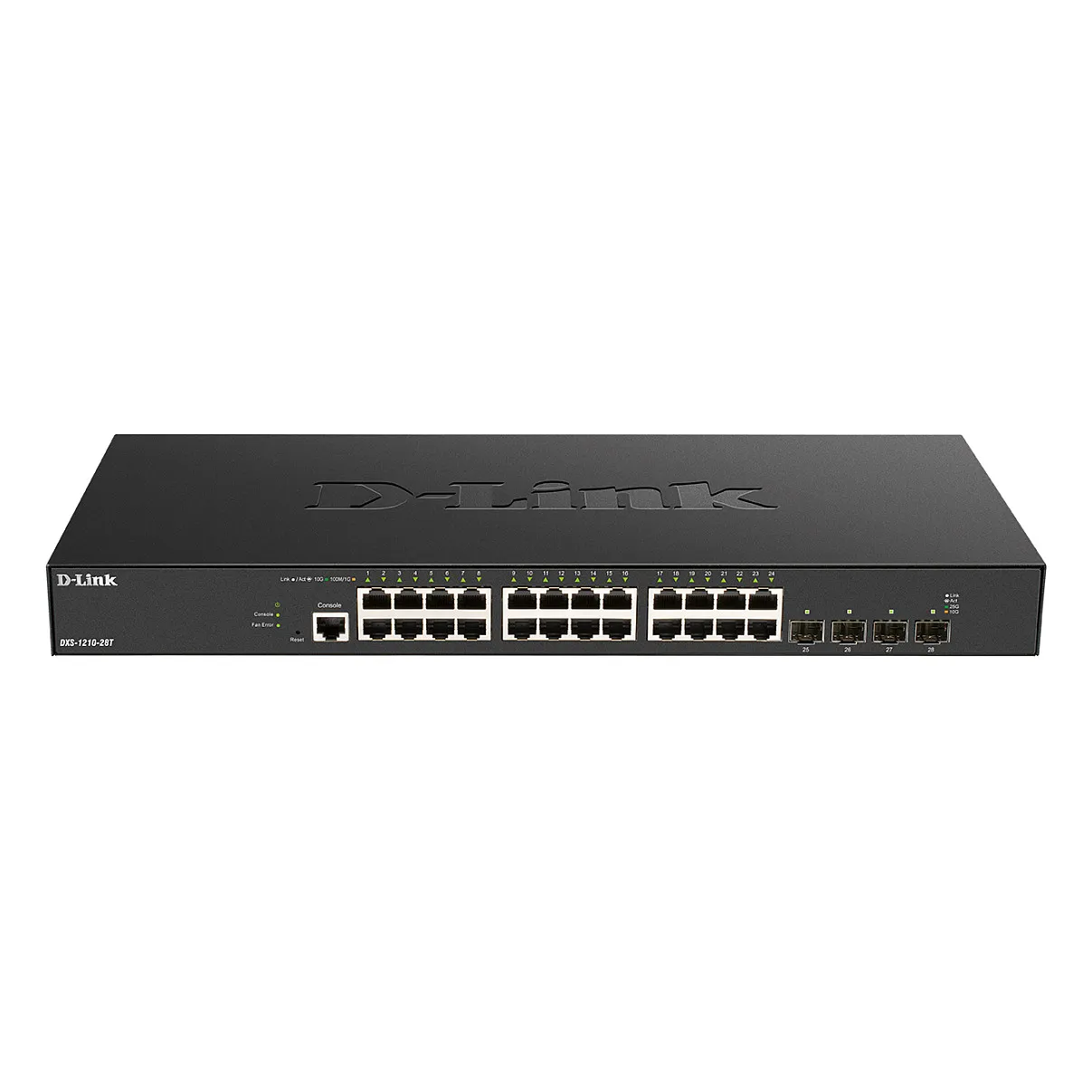

D-Link 24-port 10GBASE-T + 4-port 10/25G SFP28 Smart Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Management features
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 24
Console port: RJ-45
SFP28 ports quantity: 4
Network
Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Cable types supported: Cat6, Cat6a, Cat7
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4094
Data transmission
Switching capacity: 680 Gbit/s
Forwarding rate: 505.92 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Security
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 256
Feature: IGMP snooping
Protocols
Management protocols: SNMP v1/v2c/v3
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, Speed
Number of fans: 2 fan(s)
Performance
Noise level: 51.9 dB
Power
AC input voltage: 100 – 240 V
Power consumption (max): 87.3 W
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 441 mm
Depth: 209.5 mm
Height: 44 mm
Weight: 3.07 kg
Certificates
Certification: CE Class AFCC Class AVCCI Class AICBSMI
Logistics data
Harmonized System (HS) code: 85176990
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 24
Console port: RJ-45
SFP28 ports quantity: 4
Network
Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Cable types supported: Cat6, Cat6a, Cat7
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Number of VLANs: 4094
Data transmission
Switching capacity: 680 Gbit/s
Forwarding rate: 505.92 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Security
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 256
Feature: IGMP snooping
Protocols
Management protocols: SNMP v1/v2c/v3
Feature: GARP VLAN Registration Protocol (GVRP)
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Activity, Link, Speed
Number of fans: 2 fan(s)
Performance
Noise level: 51.9 dB
Power
AC input voltage: 100 – 240 V
Power consumption (max): 87.3 W
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 441 mm
Depth: 209.5 mm
Height: 44 mm
Weight: 3.07 kg
Certificates
Certification: CE Class AFCC Class AVCCI Class AICBSMI
Logistics data
Harmonized System (HS) code: 85176990
