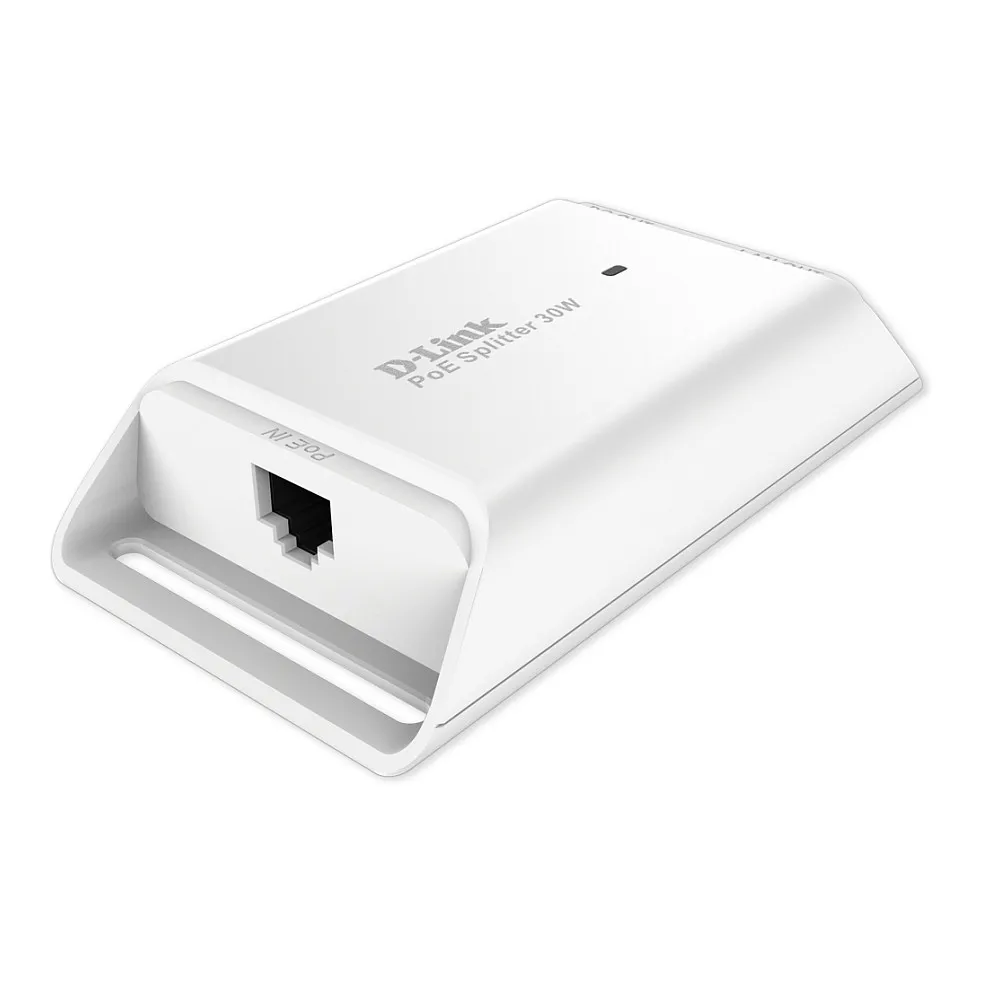

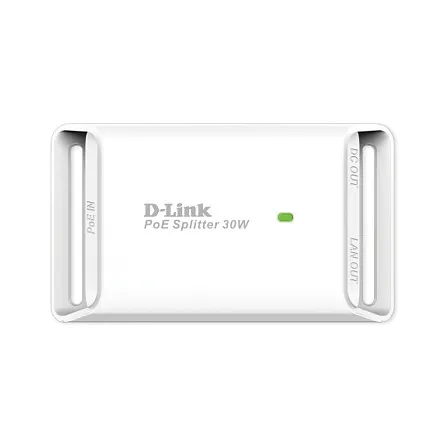

D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Product colour: White. Certification: CE, FCC, VCCI, RCM. Weight: 98 g. Package width: 106 mm, Package depth: 156 mm, Package height: 61 mm. Output power: 32.4 W

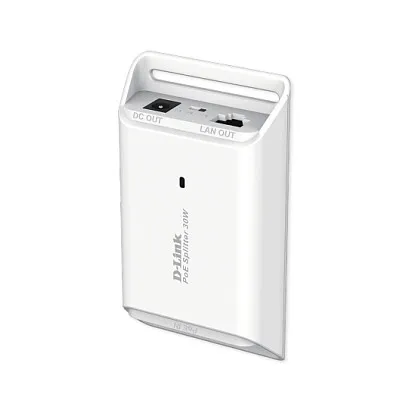

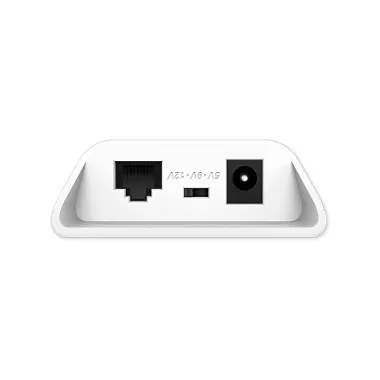

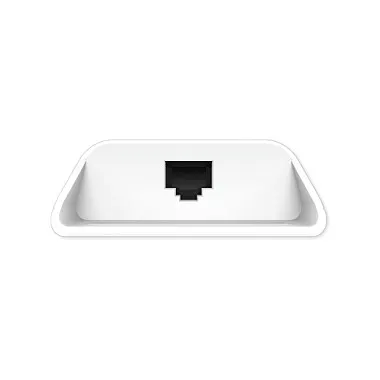

The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Feature: Power over Ethernet (PoE)
Product colour: White
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -30 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Certificates
Certification: CE, FCC, VCCI, RCM
Weight & dimensions
Weight: 98 g
Packaging data
Package width: 106 mm
Package depth: 156 mm
Package height: 61 mm
Package weight: 230 g
Power
Output power: 32.4 W
Logistics data
Products per shipping (inner) case: 40 pc(s)
Shipping (inner) case length: 44.5 cm
Shipping (inner) case width: 33.2 cm
Shipping (inner) case height: 32.5 cm
Pallet gross length: 120 cm
Pallet gross width: 110 cm
