D-Link 100/1000Base-t to 1000Base-SX SC Multi-mode Media Converter (550m). Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 550 m, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.55 A, Power consumption (max): 1.65 W

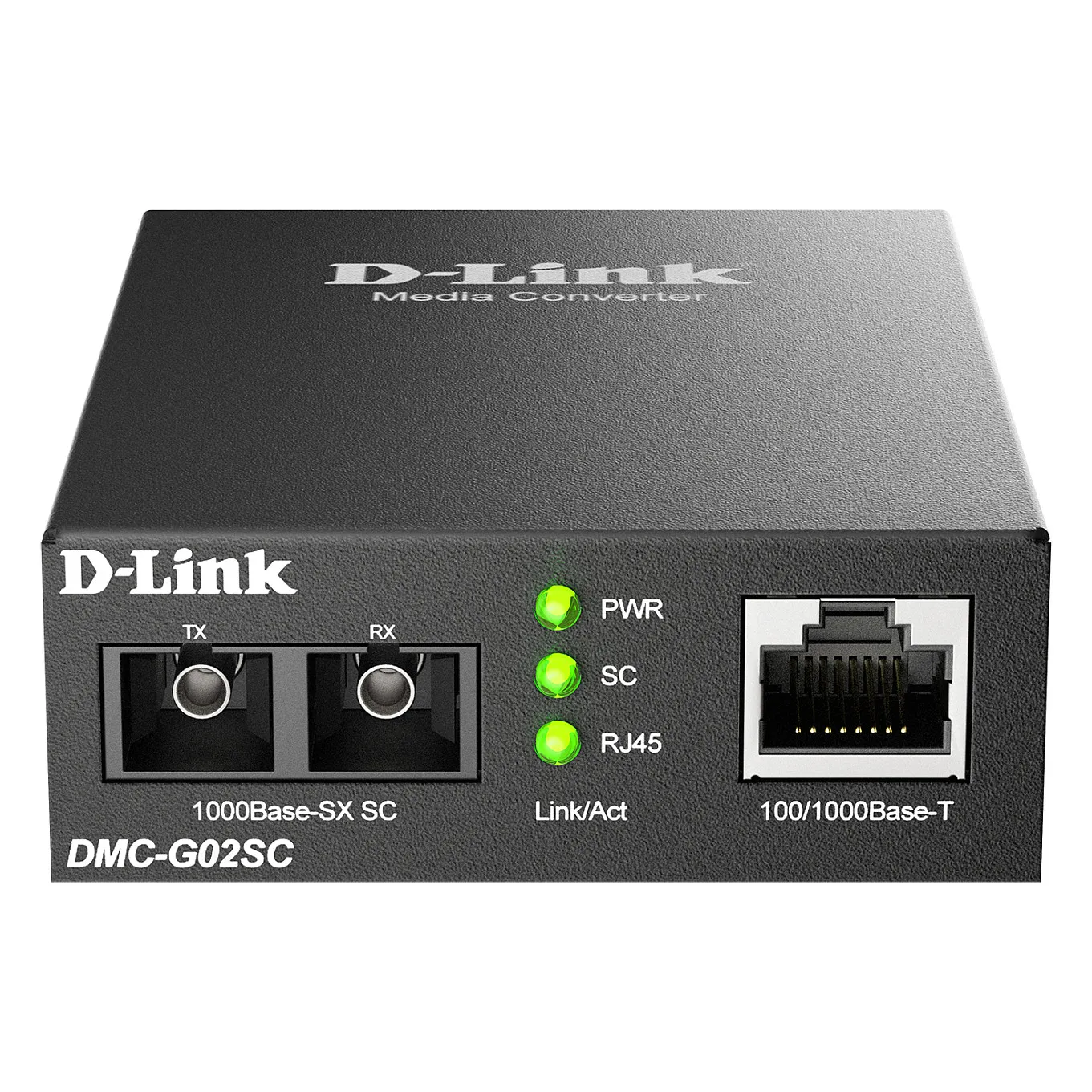

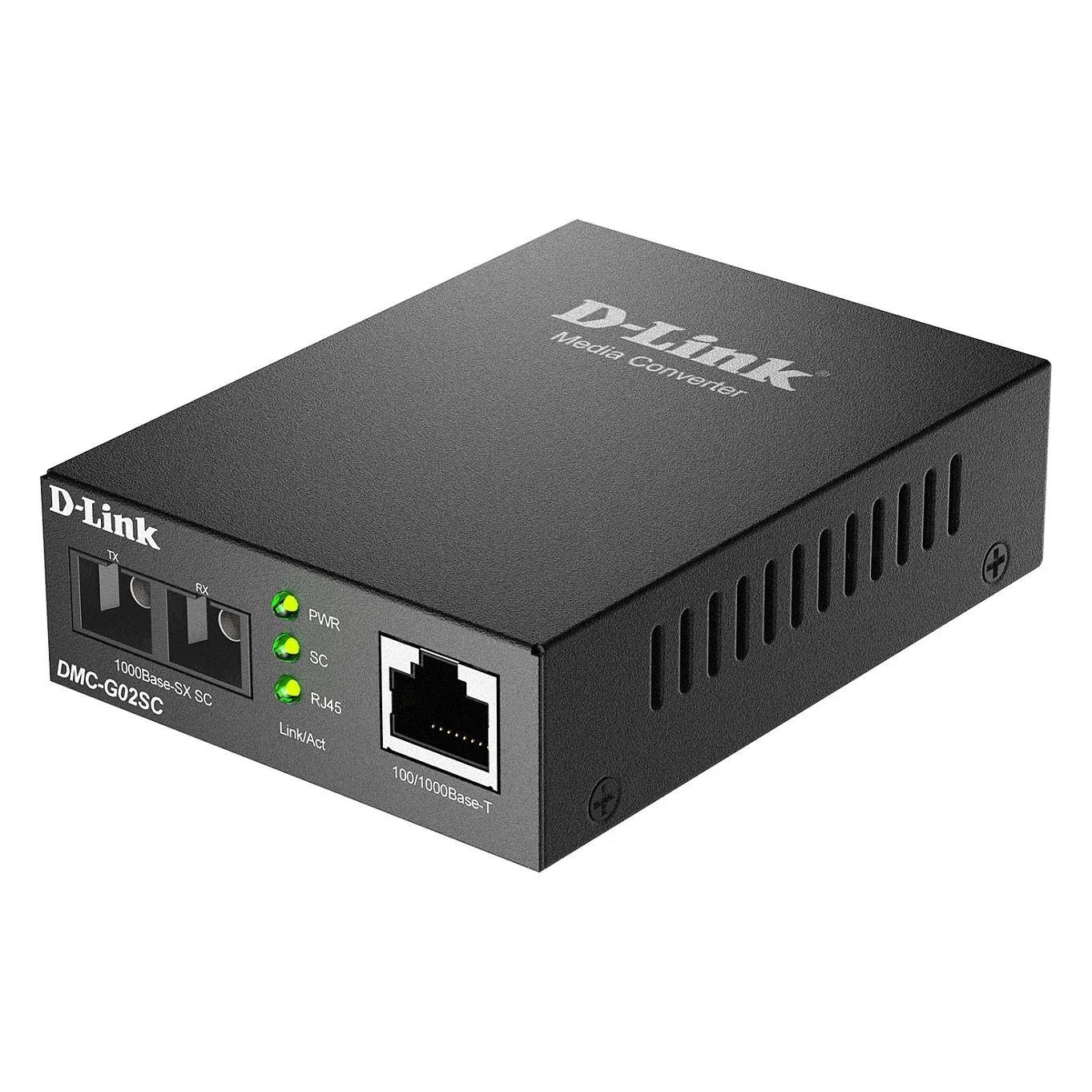

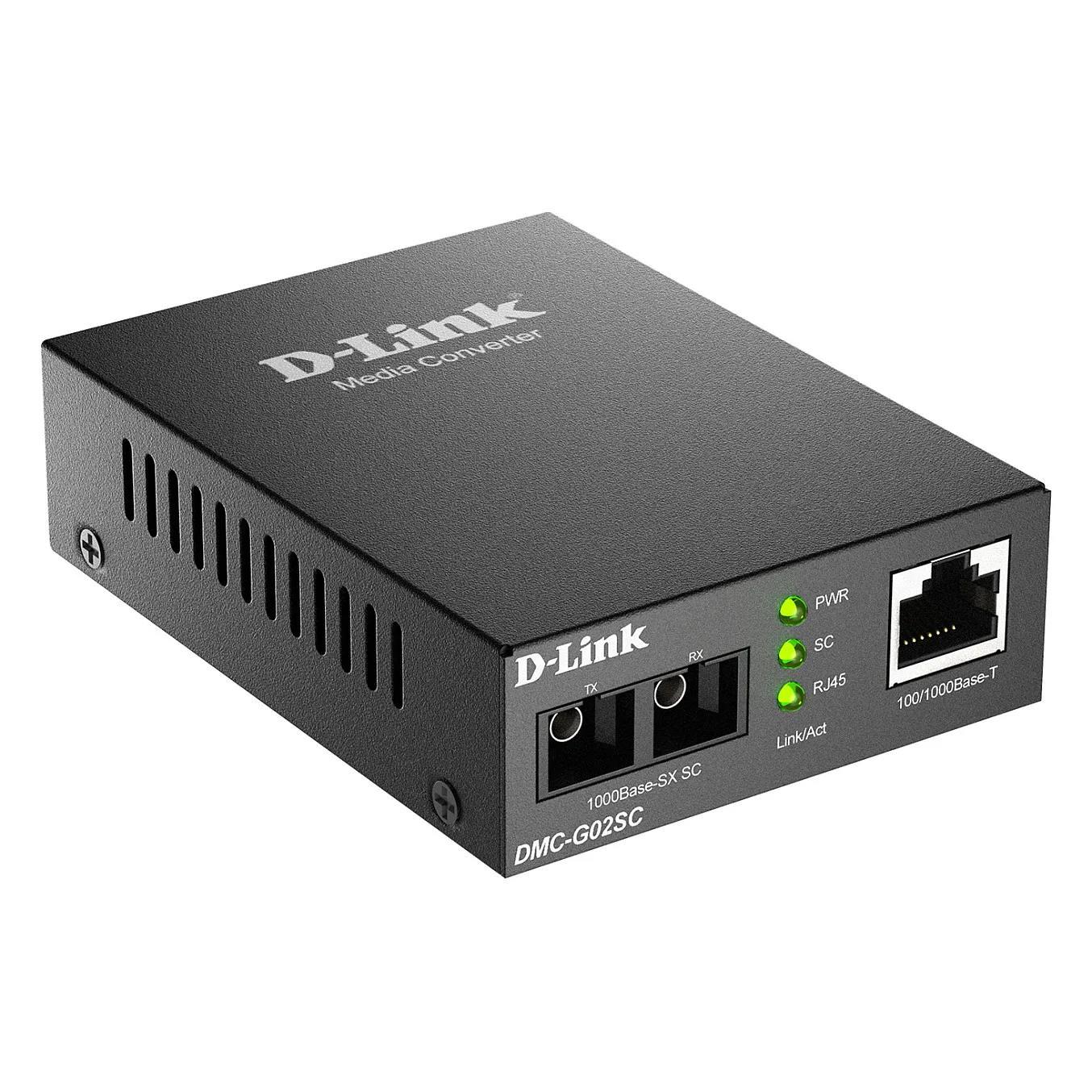

The DMC-G02SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a multi-mode fibre 1000Base-SX Gigabit Ethernet connection to extend a connection distance (up to 550 m) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.
Network
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-T, 1000Base-T
Converter output interface: 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Auto MDI/MDI-X
Performance
Maximum transfer distance: 550 m
Fiber mode structure: Multi-mode
Features
LED indicators: Activity, Link, Power
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber optic connector: SC

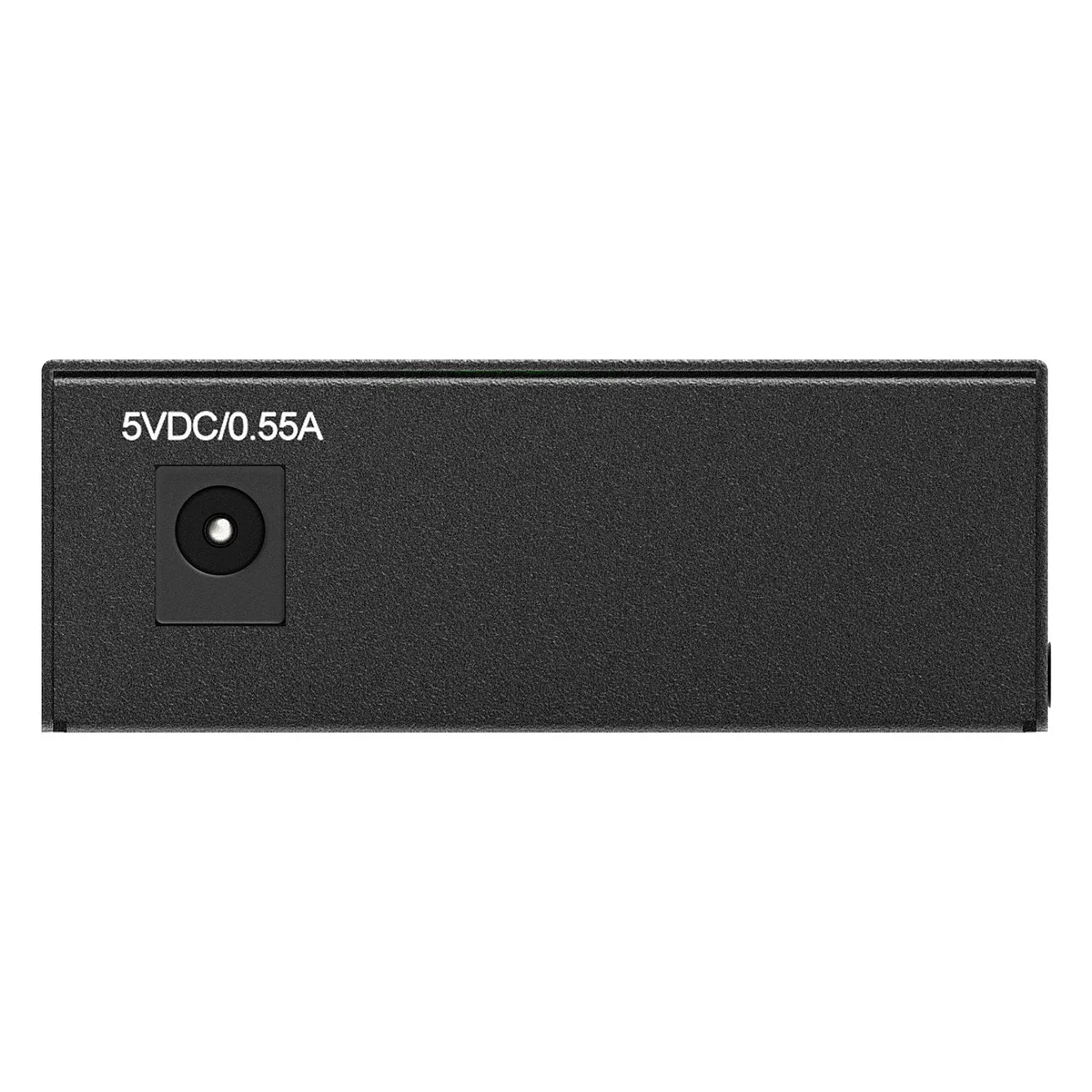

Feature: DC-in jack
Power
Output voltage: 5 V
Output current: 0.55 A
Power consumption (max): 1.65 W
Weight & dimensions
Width: 93.5 mm
Depth: 70.5 mm
Height: 26 mm
Weight: 124 g
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 20 – 80%
Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-T, 1000Base-T
Converter output interface: 1000Base-SX
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Auto MDI/MDI-X
Performance
Maximum transfer distance: 550 m
Fiber mode structure: Multi-mode
Features
LED indicators: Activity, Link, Power
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber optic connector: SC
Feature: DC-in jack
Power
Output voltage: 5 V
Output current: 0.55 A
Power consumption (max): 1.65 W
Weight & dimensions
Width: 93.5 mm
Depth: 70.5 mm
Height: 26 mm
Weight: 124 g
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 20 – 80%
