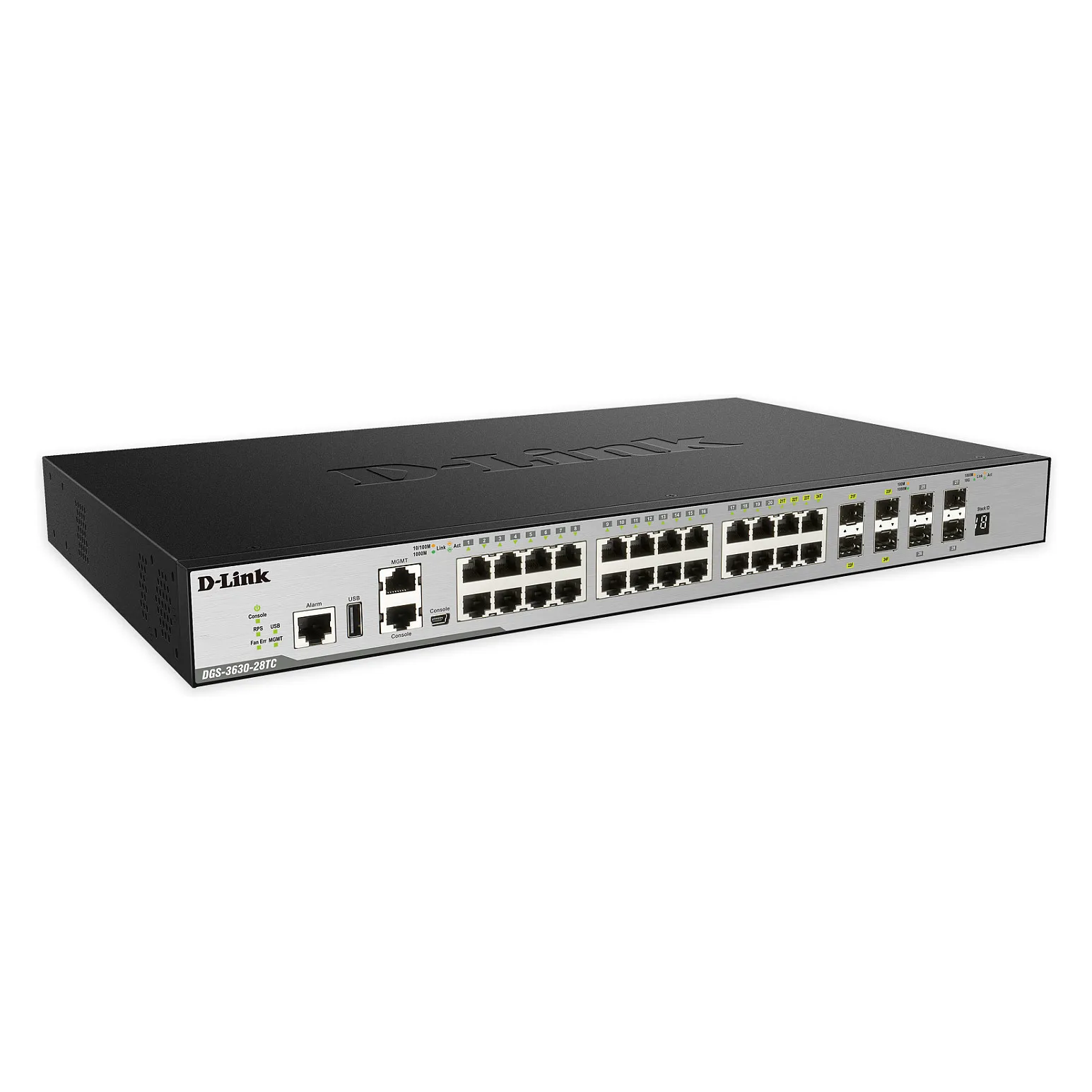

D-Link DGS-3630-28TC. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20, Installed SFP+ modules quantity: 4, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 68000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE…. Rack mounting, Form factor: 1U
The DGS-3630-28TC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 20 x 10/100/1000 ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, OAM, and robust security features. With a simple upgrade it can also support full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.
Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 20
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 20
Installed SFP+ modules quantity: 4
Combo SFP ports quantity: 4
Console port: RJ-45/Mini-USB
USB 2.0 ports quantity: 1
Network
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Routing entries: 16000
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 128 Gbit/s
Throughput: 95.24 Mpps
MAC address table: 68000 entries
Number of queues: 8
Number of IP interfaces: 256
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 4 MB
Security
DHCP features: DHCP server, DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS, SSH, SSH-2, SSL/TLS
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Guest VLAN, Port-based authentication
Multicast features
Feature: Multicast support
Protocols
Management protocols: SNMP, NTPv3/v4, Telnet
Supported network protocols: IPv4/v6
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)
Safety: cUL, CB, CE, CCC, BSM
Electromagnetic compatibility: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Performance
Virtual stacking (units): 32
Noise level: 52.7 dB
Mean time between failures (MTBF): 300190 h
Power
Feature: Power supply included
Feature: Redundant power supply (RPS) support
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 42.4 W
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 95%
Storage relative humidity (H-H): 5 – 95%
Heat dissipation: 145 BTU/h
Weight & dimensions
Width: 441 mm
Depth: 260 mm
Height: 44 mm
Weight: 3.74 kg
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: System event log
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 20
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 20
Installed SFP+ modules quantity: 4
Combo SFP ports quantity: 4
Console port: RJ-45/Mini-USB
USB 2.0 ports quantity: 1
Network
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Routing entries: 16000
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094
Data transmission
Switching capacity: 128 Gbit/s
Throughput: 95.24 Mpps
MAC address table: 68000 entries
Number of queues: 8
Number of IP interfaces: 256
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 4 MB
Security
DHCP features: DHCP server, DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS, SSH, SSH-2, SSL/TLS
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Guest VLAN, Port-based authentication
Multicast features
Feature: Multicast support
Protocols
Management protocols: SNMP, NTPv3/v4, Telnet
Supported network protocols: IPv4/v6
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)
Safety: cUL, CB, CE, CCC, BSM
Electromagnetic compatibility: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Performance
Virtual stacking (units): 32
Noise level: 52.7 dB
Mean time between failures (MTBF): 300190 h
Power
Feature: Power supply included
Feature: Redundant power supply (RPS) support
Number of power supply units: 1
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 42.4 W
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 95%
Storage relative humidity (H-H): 5 – 95%
Heat dissipation: 145 BTU/h
Weight & dimensions
Width: 441 mm
Depth: 260 mm
Height: 44 mm
Weight: 3.74 kg
