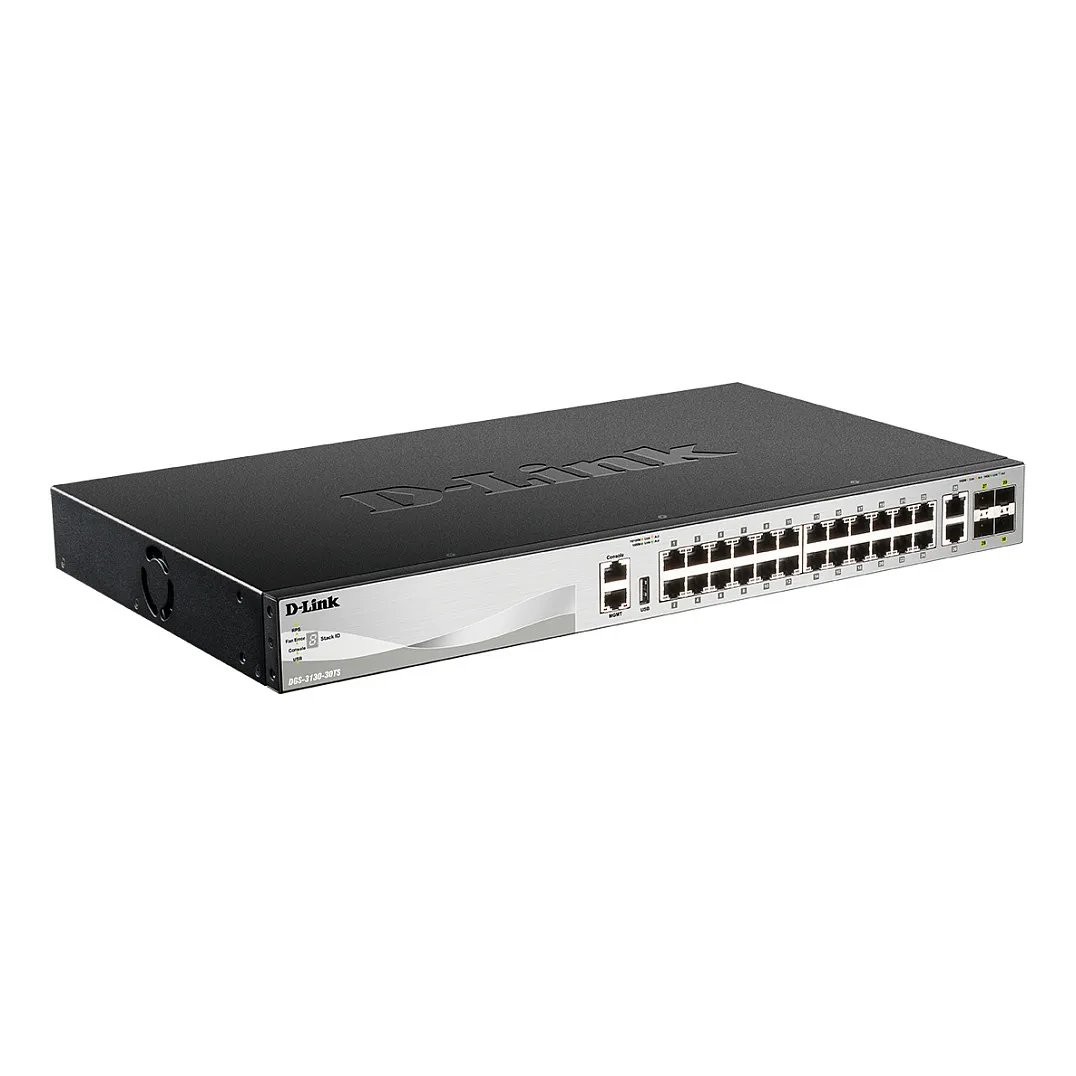

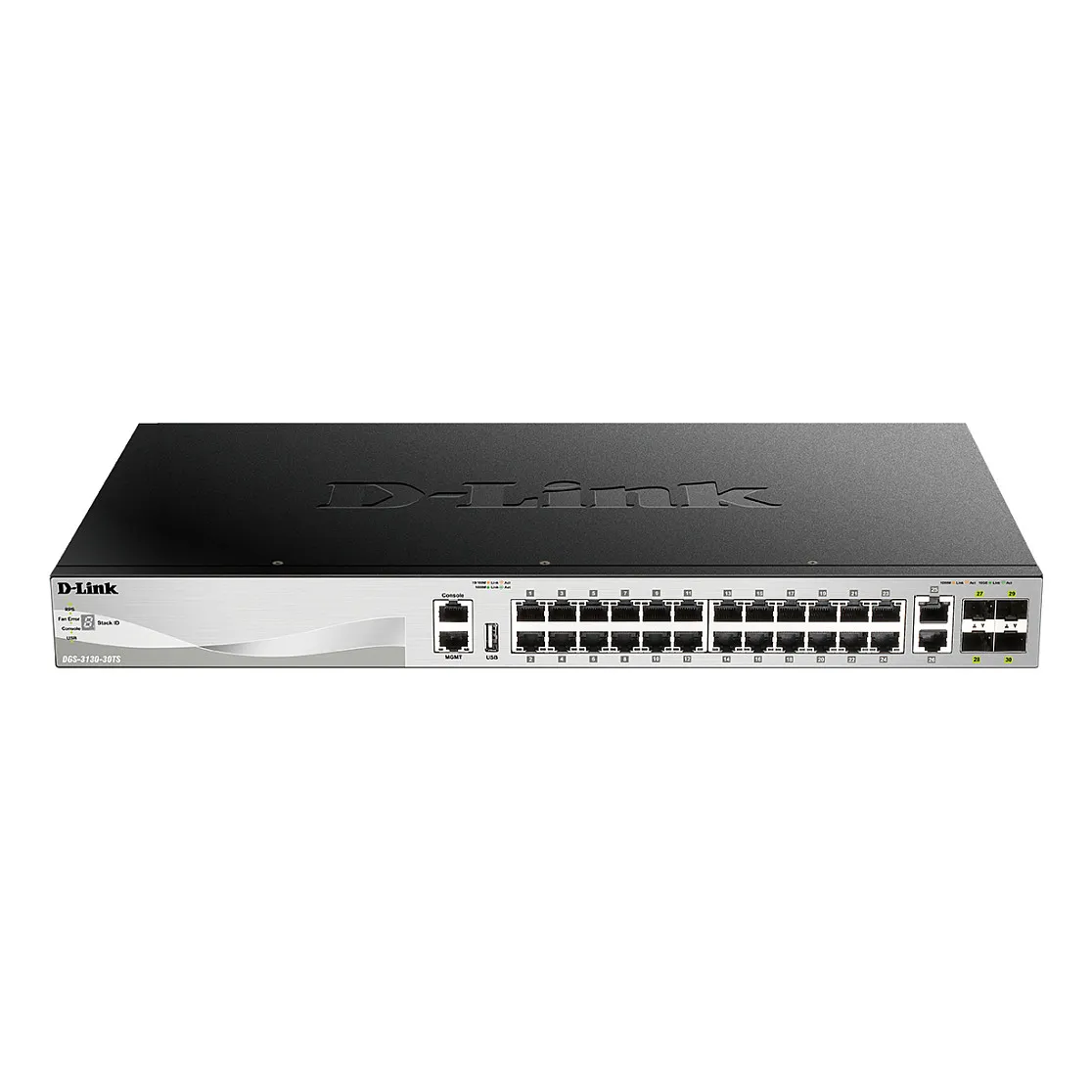

D-Link DGS-3130-30TS/E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 168 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE…. Power connector: AC-in jack
Management features
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 4
Fiber optic connector: SFP+
USB 2.0 ports quantity: 1
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 168 Gbit/s
Forwarding rate: 125 Mpps
MAC address table: 16384 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 2 MB
Security
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) egress: 512
Access Control List (ACL) ingress: 2048
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
Queue scheduling algorithms: Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Feature: Multicast support
Protocols
Routing protocols: RIP
Design
Feature: Stackable
Product colour: Grey
LED indicators: Yes
Number of fans: 1 fan(s)
Performance
Physical stacking (units): 9
Virtual stacking (units): 32
Noise level: 47 dB
Mean time between failures (MTBF): 388361 h
Power
Power source: DC
Feature: Redundant power supply (RPS) support
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 30.36 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 103.59 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 250 mm
Height: 44 mm
Weight: 3.2 kg
Certificates
Certification: FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
