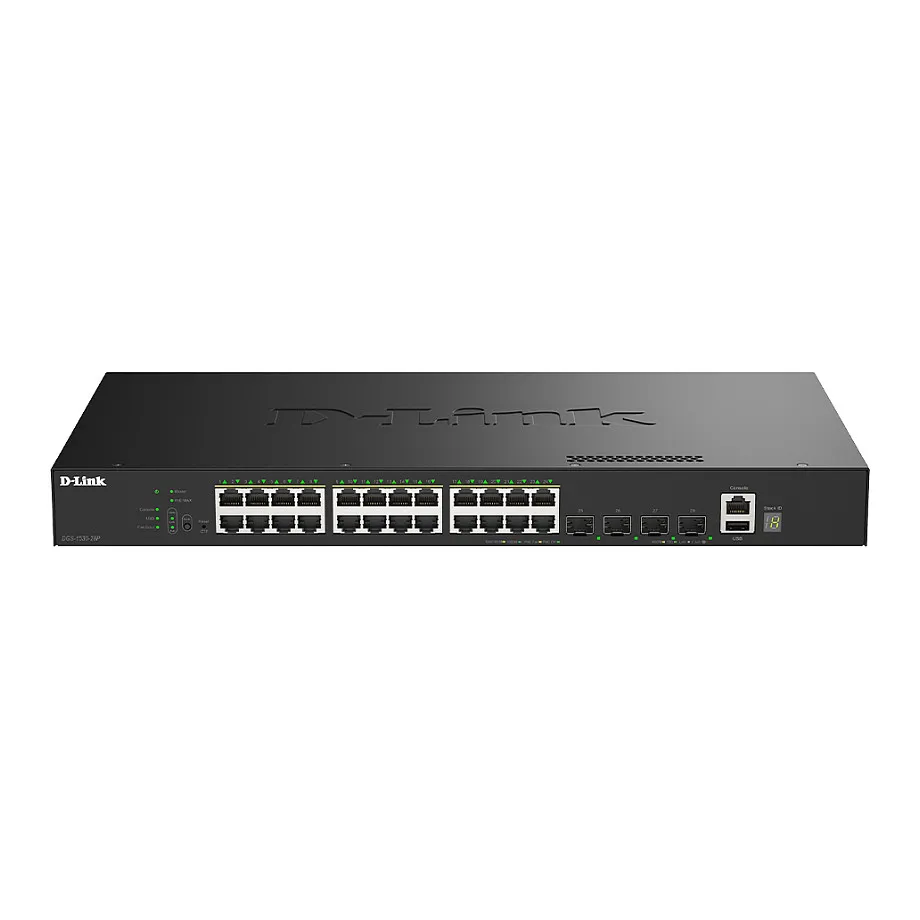

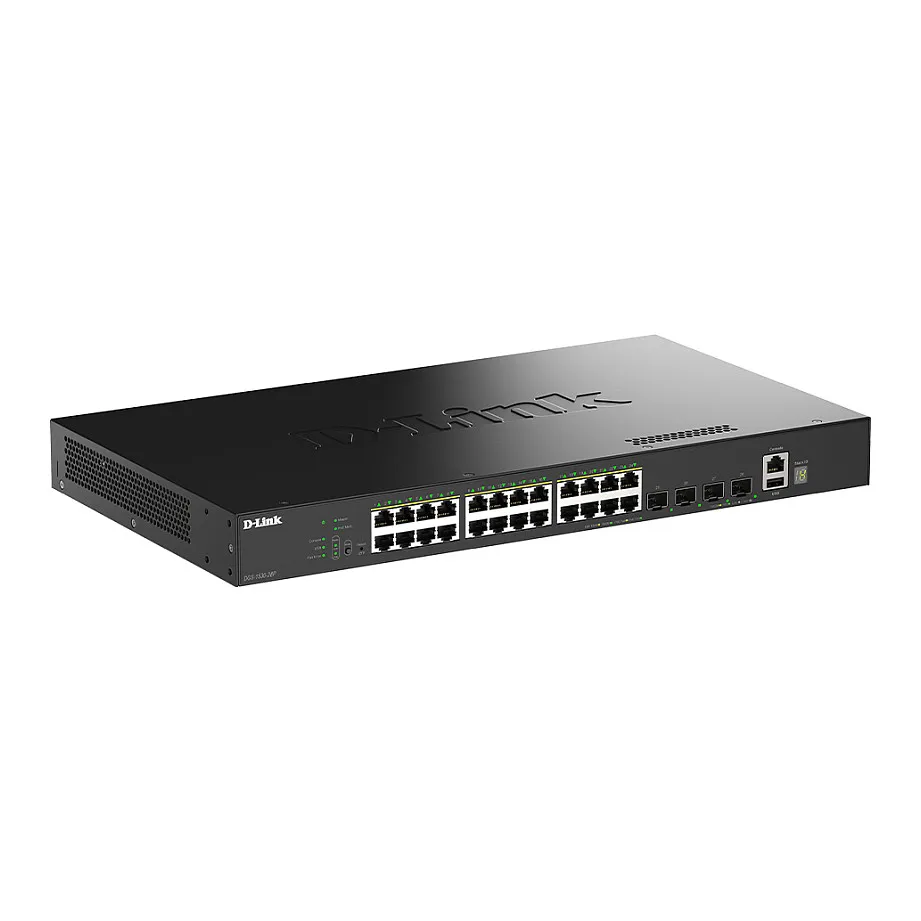

D-Link 28-Port Gigabit Stackable PoE+ Smart Managed Switch with 4 x 10G SFP+ Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
Redundant power supply ensures uninterrupted operation while boosting PoE output for high-demand devices
Simplified Management
The SIM feature lets you manage multiple switches as a virtual stack under one IP, streamlining operations and integration
Enhanced Security
Features includes VLANs, ACLs, Port Security, 802.1X, and RADIUS to protect data and manage access
Resilience Connectivity
G.8032 ERPS delivers sub-millisecond ring recovery for uninterrupted connectivity across critical operations
Seamless Power Delivery
PD-Alive, Fast PoE, and Perpetual PoE ensure rapid startup, automatic device recovery, and uninterrupted power supply
Shielded for Stability
All copper ports include 6kV surge protection for reliability and protection against electrical spikes
Zero-Touch Setup, Infinite Scalability
Zero-Touch Provisioning (ZTP) streamlines setup by enabling devices to auto-configure without manual input. Simply hold the reset button for 5–10 seconds to trigger reboot and provisioning. ZTP speeds up deployment, minimizes errors, and ensures consistent configuration and ideal for large-scale networks.
Power on the switch and connect the cable to service LAN, then start ZTP
– Hold the reset button (5~10 sec)
– Get IP and settings from DHCP server
– Download firmware or configuration from TFTP server
Effortless PoE for Modern Networks
The DGS-1530-28P supports 802.3af/at PoE standards, delivering up to 30 W per port and a PoE budget of 370 W with Perpetual and Fast PoE.
PoE enables the simple deployment of IP cameras, APs, and VoIP phones over standard Ethernet, reducing the need for separate electrical wiring and allowing owners to tailor power availability for their business venues.
Recover Instantly with Intelligent Stacking
Physical stacking lets multiple switches act as one, boosting scalability and resilience. It reroutes traffic automatically during failures, supports hot-swapping, and ensures seamless master switch failover. Shortest-path forwarding and trunked ports enhance bandwidth and reliability.
Smarter Multicast for Seamless Streaming
The rise of IPTV and multimedia streaming, efficient multicast management is crucial. IGMP/MLD snooping prevents duplicate streams and interference between STBs within the same VLAN, while ISM VLAN reduces redundant multicast traffic across VLANs—enhancing backbone efficiency and ensuring smoother streaming performance.
Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
USB Type-A ports quantity: 1
Console port: RJ-45
USB 2.0 ports quantity: 1
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Policy-based routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,1000,100 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Number of VLANs: 4096
Data transmission
Switching capacity: 128 Gbit/s
Forwarding rate: 95.24 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet buffer memory: 1.5 MB
Security
Feature: Access Control List (ACL)
Access Control List (ACL) egress: 1000
Access Control List (ACL) ingress: 2000
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: Loop protection
Feature: Password protection
Authentication type: RADIUS, TACACS+
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Product colour: Black
LED indicators: Yes
Number of fans: 3 fan(s)
Performance
Noise level: 54.7 dB
Mean time between failures (MTBF): 330520 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 456 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Storage relative humidity (H-H): 0 – 95%
Heat dissipation: 1554.96 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 250 mm
Height: 44 mm
Weight: 3.8 kg
