D-Link 1-port Mini-GBIC SFP to 1000BaseLX, 10km for all. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Maximum voltage: 3.3 V. Certification: MSA, RoHS. Package width: 74 mm, Package depth: 131 mm, Package height: 49 mm

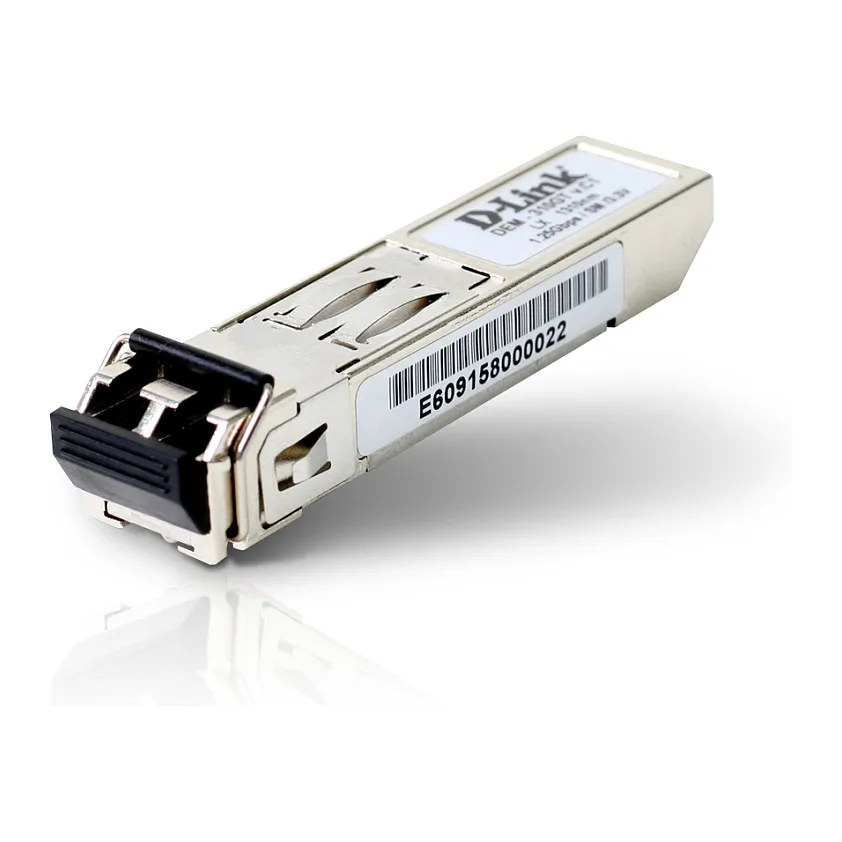

The DEM-310GT is a high performance 1310nm single mode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on single mode fiber for distances of up to 10km on 9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Performance
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
SFP transceiver standard: LX
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.3z
Cabling technology: 1000Base-LX
Duplex system: Full
Features
Product colour: Metallic
Feature: Hot-Plug support
Feature: Hot-swap
Power
Maximum voltage: 3.3 V
Certificates
Certification: MSA, RoHS
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Packaging data
Package width: 74 mm
Package depth: 131 mm
Package height: 49 mm
Package weight: 64 g
Other features
Dimensions (WxDxH): 29.8 x 11.8 x 56.3 mm
I/O ports: mini-GBIC
Logistics data
Shipping (inner) case length: 36 cm
Shipping (inner) case width: 26 cm
Shipping (inner) case height: 31 cm
Shipping (inner) case net weight: 3.2 kg
Products per shipping (inner) case: 50 pc(s)
Pallet gross weight (air): 246.8 kg
Master (outer) cases per pallet (air): 54 pc(s)
Products per pallet (air): 2700 pc(s)
Pallet gross length: 102 cm
Pallet gross width: 122 cm
Pallet height (air): 199 cm
Pallet gross weight (sea): 246.8 kg
Master (outer) cases per pallet (sea): 54 pc(s)
Products per pallet (sea): 2700 pc(s)
Pallet height (sea): 199 cm
Shipping (inner) case gross weight: 4.2 kg
Harmonized System (HS) code: 85177900
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
SFP transceiver standard: LX
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.3z
Cabling technology: 1000Base-LX
Duplex system: Full
Features
Product colour: Metallic
Feature: Hot-Plug support
Feature: Hot-swap
Power
Maximum voltage: 3.3 V
Certificates
Certification: MSA, RoHS
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Packaging data
Package width: 74 mm
Package depth: 131 mm
Package height: 49 mm
Package weight: 64 g
Other features
Dimensions (WxDxH): 29.8 x 11.8 x 56.3 mm
I/O ports: mini-GBIC
Logistics data
Shipping (inner) case length: 36 cm
Shipping (inner) case width: 26 cm
Shipping (inner) case height: 31 cm
Shipping (inner) case net weight: 3.2 kg
Products per shipping (inner) case: 50 pc(s)
Pallet gross weight (air): 246.8 kg
Master (outer) cases per pallet (air): 54 pc(s)
Products per pallet (air): 2700 pc(s)
Pallet gross length: 102 cm
Pallet gross width: 122 cm
Pallet height (air): 199 cm
Pallet gross weight (sea): 246.8 kg
Master (outer) cases per pallet (sea): 54 pc(s)
Products per pallet (sea): 2700 pc(s)
Pallet height (sea): 199 cm
Shipping (inner) case gross weight: 4.2 kg
Harmonized System (HS) code: 85177900
