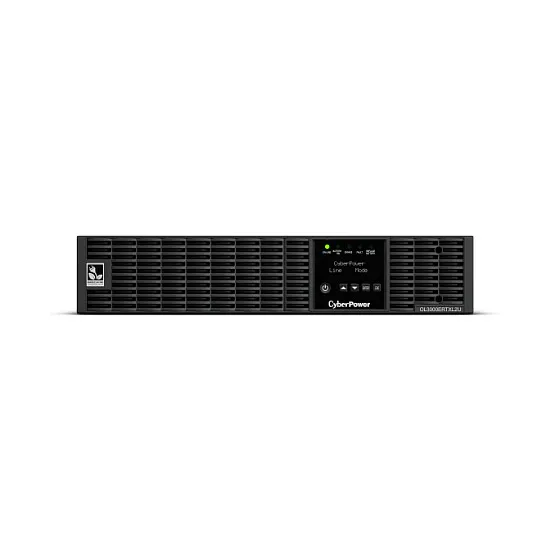

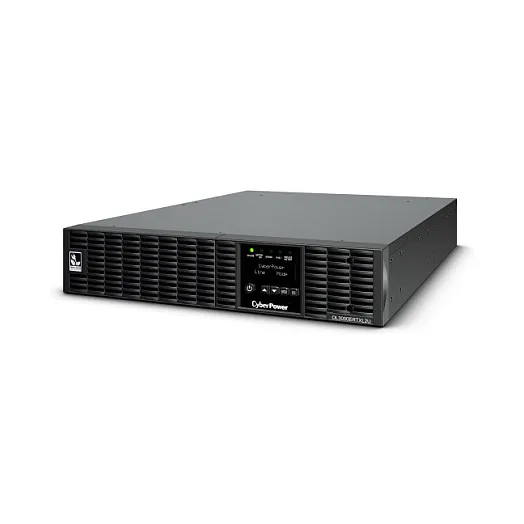

CyberPower OL3000ERTXL2U. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 3 min, Typical backup time at half load: 11 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: BSMI, RCM, RoHS
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Pure sine
Input operation voltage (min): 190 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 15 A
Surge energy rating: 1335 J
Response time: 0 ms
Heat dissipation: 1139 BTU/h
Output power factor: 0.9
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 3%
Total Harmonic Distortion (THD) (non-linear load): 5%
Feature: EMI/RFI noise filtering
Feature: Surge protection
Surge protection features: Fax, Modem, Network, Telephone
Power protection features: Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Battery replacement

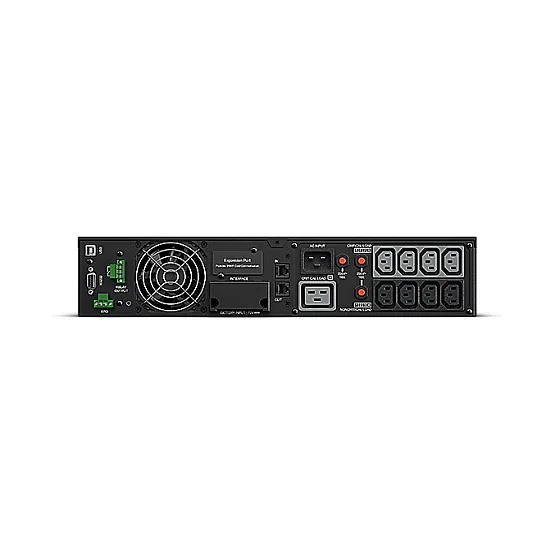

Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector
Battery
Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 3 min
Typical backup time at half load: 11 min
Battery recharge time: 5 h
Feature: Hot-swap battery
Feature: Cold start
Design

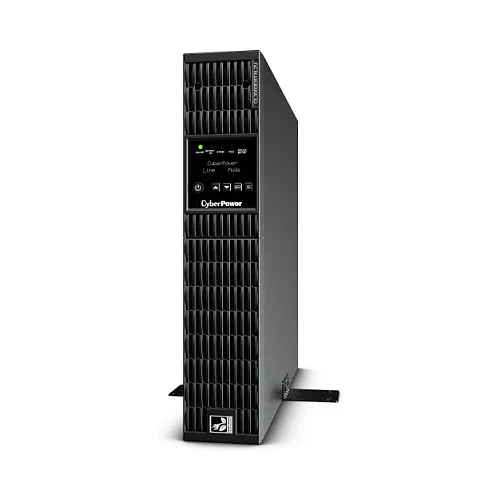

Form factor: Rackmount/Tower
Housing material: Metal
Rack capacity: 2U
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD + LED
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 45 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Compliance certificates: BSMI, RCM, RoHS
Packaging content
Feature: Rack mount kit
Cables included: Serial, USB cable
Feature: Manual
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 433 mm
Depth: 600 mm
Height: 88 mm
Weight: 32 kg
Packaging data
Bundled software: PowerPanel® Business Edition
Package width: 565 mm
Package depth: 880 mm
Package height: 240 mm
Package weight: 39.5 kg
Logistics data
Harmonized System (HS) code: 8504408590
Warranty period: 3 year(s)
Country of origin: China
Other features
Battery type: RBP0076
Compatible operating systems: Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Feature: Overload protection
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Pure sine
Input operation voltage (min): 190 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Maximum current: 15 A
Surge energy rating: 1335 J
Response time: 0 ms
Heat dissipation: 1139 BTU/h
Output power factor: 0.9
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 3%
Total Harmonic Distortion (THD) (non-linear load): 5%
Feature: EMI/RFI noise filtering
Feature: Surge protection
Surge protection features: Fax, Modem, Network, Telephone
Power protection features: Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Battery replacement
Ports & interfaces
AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 9 AC outlet(s)
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
RS-232 ports: 1
Ethernet LAN (RJ-45) ports: 2
Feature: Emergency Power Off (EPO) connector
Battery
Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 3 min
Typical backup time at half load: 11 min
Battery recharge time: 5 h
Feature: Hot-swap battery
Feature: Cold start
Design
Form factor: Rackmount/Tower
Housing material: Metal
Rack capacity: 2U
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD + LED
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 45 °C
Operating relative humidity (H-H): 0 – 90%
Storage relative humidity (H-H): 0 – 95%
Operating altitude: 0 – 3000 m
Non-operating altitude: 0 – 15000 m
Certificates
Compliance certificates: BSMI, RCM, RoHS
Packaging content
Feature: Rack mount kit
Cables included: Serial, USB cable
Feature: Manual
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 433 mm
Depth: 600 mm
Height: 88 mm
Weight: 32 kg
Packaging data
Bundled software: PowerPanel® Business Edition
Package width: 565 mm
Package depth: 880 mm
Package height: 240 mm
Package weight: 39.5 kg
Logistics data
Harmonized System (HS) code: 8504408590
Warranty period: 3 year(s)
Country of origin: China
Other features
Battery type: RBP0076
Compatible operating systems: Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Feature: Overload protection
