Cudy LT500. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier. Mobile network generation: 4G, 2G standards: Edge, GSM, 3G standards: WCDMA. Security algorithms: WPA, WPA2, WPA3
With 4G Cat. 4 standards, LT500 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 30 devices while minimizing the latency.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four different scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Works in Rain, Thunder, Dust, Heat, Cold
The device is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher thunderstorm reliability. Its working temperatures span from -40 °F to 149 °F (-40 °C to 65 °C).
Outdoor Full-Bar 4G Signal Brings High-Quality Wi-Fi

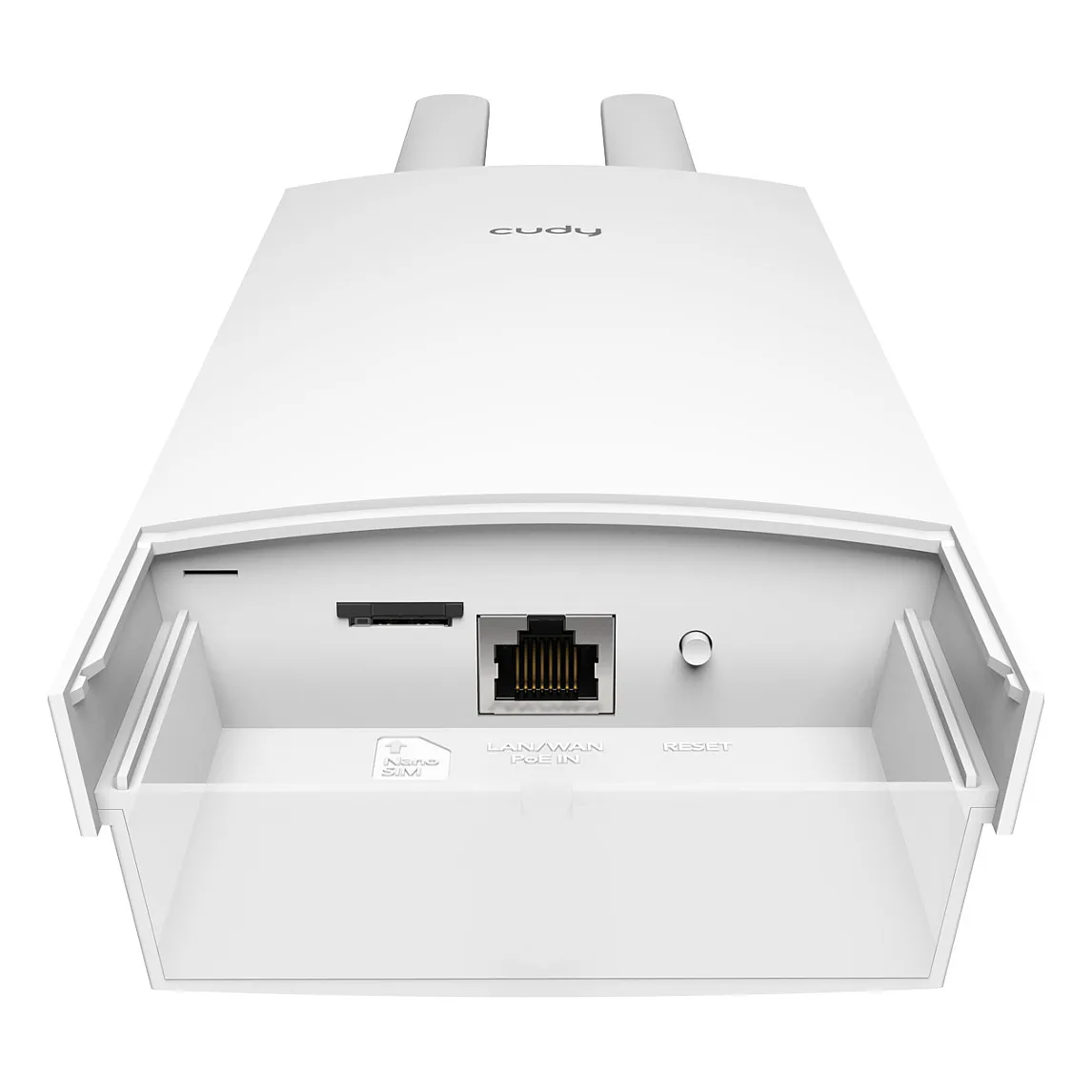

Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or office with a better Wi-Fi signal. AP needs to be purchased separately.
Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone’s antennas. You can still replace them with customized ones via the SMA connectors.
A Quick Guide to Network Installation
A Reliable Network Solution
Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):
Switch: Cudy GS108 (Skip this if you don’t require extra wired connections)
AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)
Budget Solution:
AP: Cudy WR1200 (Choose AP mode during Setup)

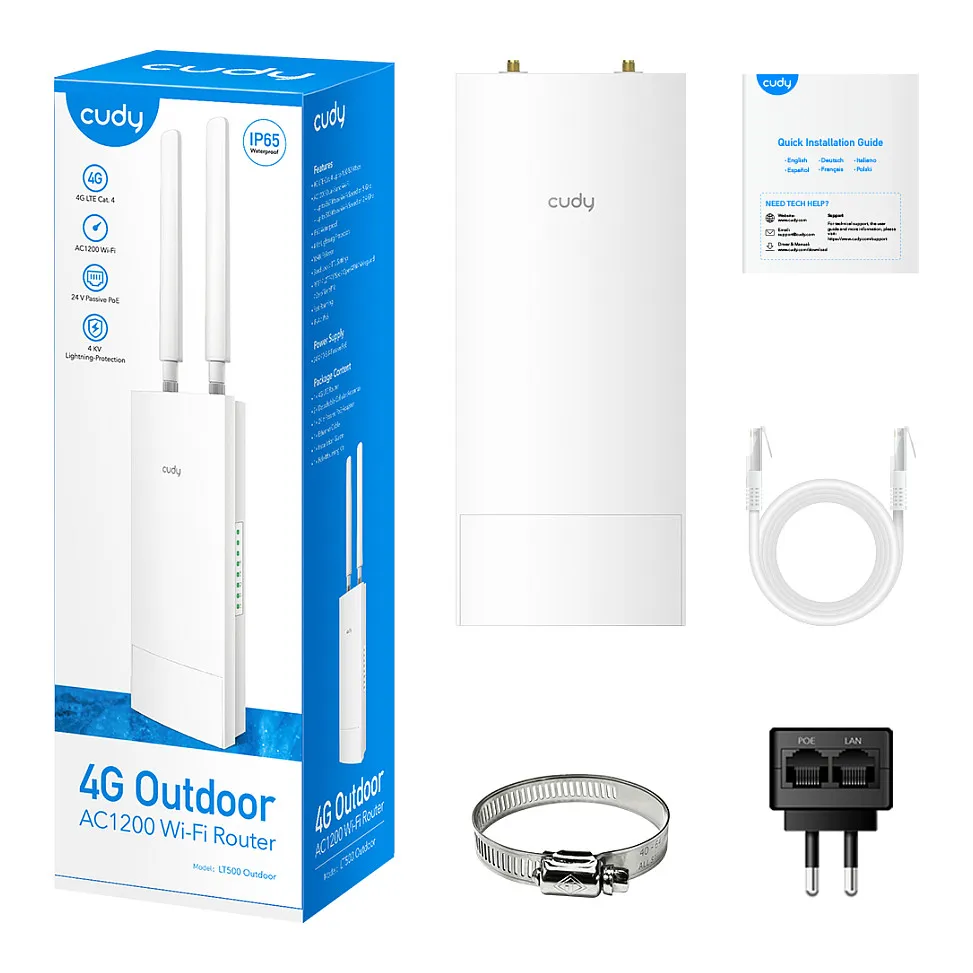

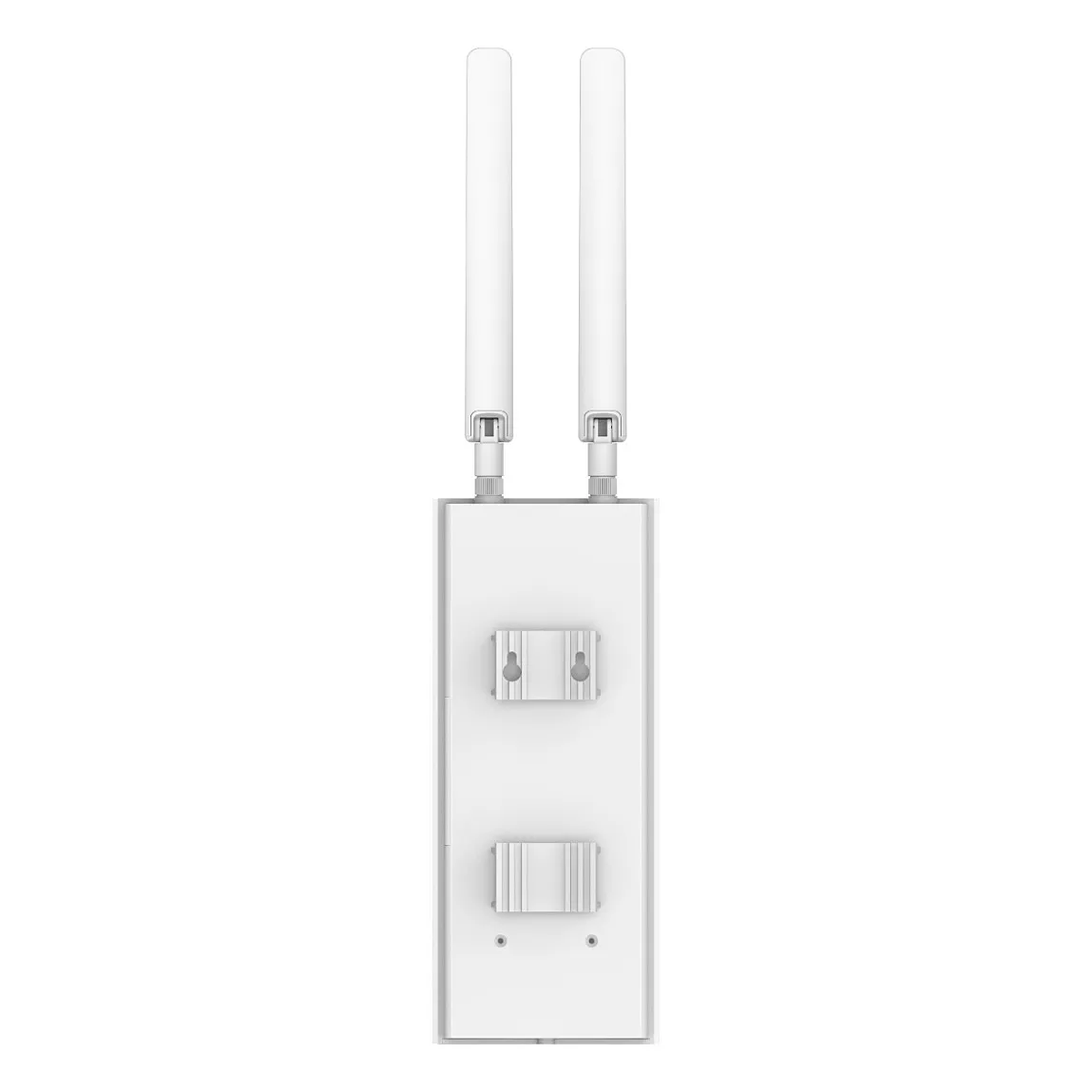

Mounting Kit Included
A mounting kit is included in the box, supporting–
Wall-Mounting
Pole-Mounting
Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s
Modulation: 256-QAM
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
Mobile network
Mobile network generation: 4G
2G standards: Edge, GSM
3G standards: WCDMA
4G standard: LTE-TDD & LTE-FDD
SIM card type: NanoSIM
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Management features
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support
Protocols
Feature: DHCP client
Feature: Universal Plug and Play (UPnP)
Supported network protocols: IPv4 / IPv6
Design
Product colour: White
Feature: Wall mountable
International Protection (IP) code: IP65
LED indicators: System, WLAN
Product type: Desktop/pole router
Packaging content
Cables included: LAN (RJ-45)
Feature: PoE injector included
Feature: Mounting kit
Feature: Quick installation guide
Antenna
Antenna design: Internal & external
Antennas quantity: 4
Feature: Detachable antenna(s)
Features
Internal memory: 128 MB
Flash memory: 16 MB
Power
Power source type: PoE
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Output voltage: 24 V
Feature: External power adapter
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 0 – 100%
Storage relative humidity (H-H): 5 – 95%
System requirements
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Weight & dimensions
Width: 240 mm
Depth: 100 mm
Height: 53.7 mm
Weight: 420 g
Packaging data
Package width: 324 mm
Package depth: 107 mm
Package height: 86 mm
Package weight: 785 g
