Cudy GS108D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
A 8-GbE long-distance switch with modern design.
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 8192 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.5 MB
Security
Feature: IGMP snooping
Design
Product colour: Black
LED indicators: Activity, Link, Power
Performance
Feature: Plug and Play
Power
Power source: DC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
DC input voltage: 5 V
Input current: 0.55 A
Power consumption (max): 2.75 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 138 mm
Depth: 61.5 mm
Height: 24 mm
Weight: 89 g

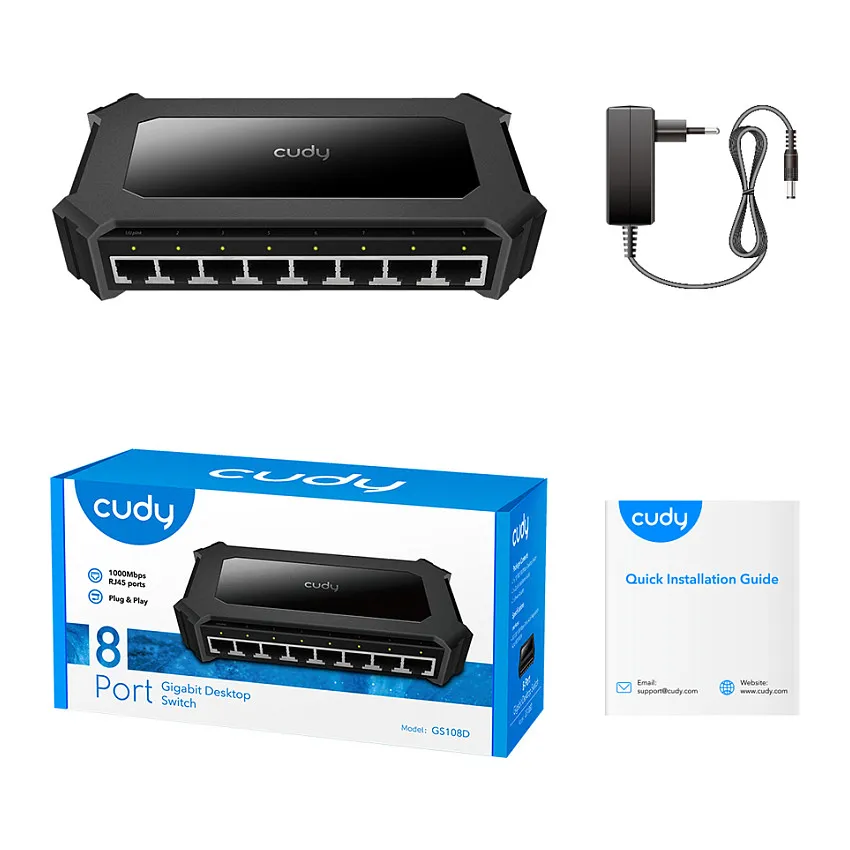

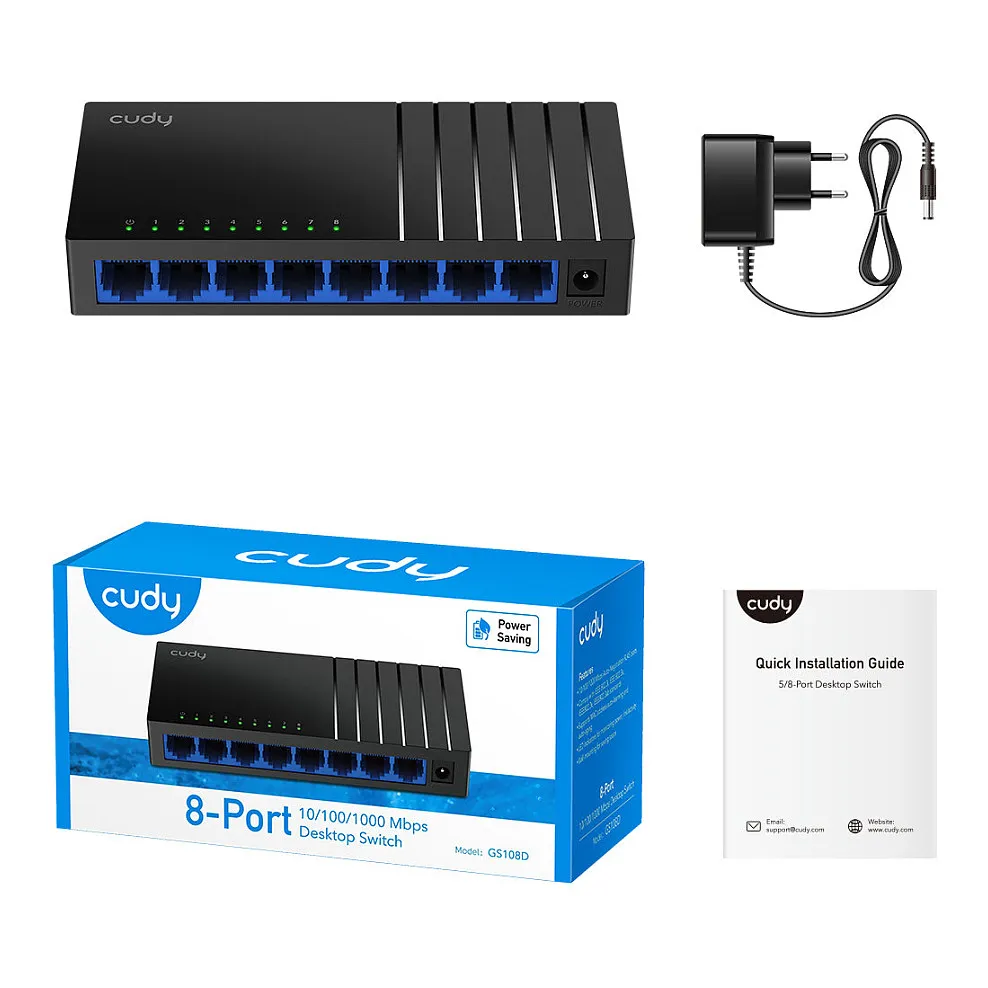

Packaging content
Cables included: DC
Feature: Manual
Packaging data
Package type: Box
Package width: 151 mm
Package depth: 75 mm
Package height: 63 mm
Package weight: 210 g
