Cudy GS105U. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: USB. Wall mountable
No Sockets Nearby? No Worries
No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.
A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.
Reliable Transimitting
A packet buffer prevents packet loss and improves the reliability of your network.
Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
Compact Size. Modern Design.

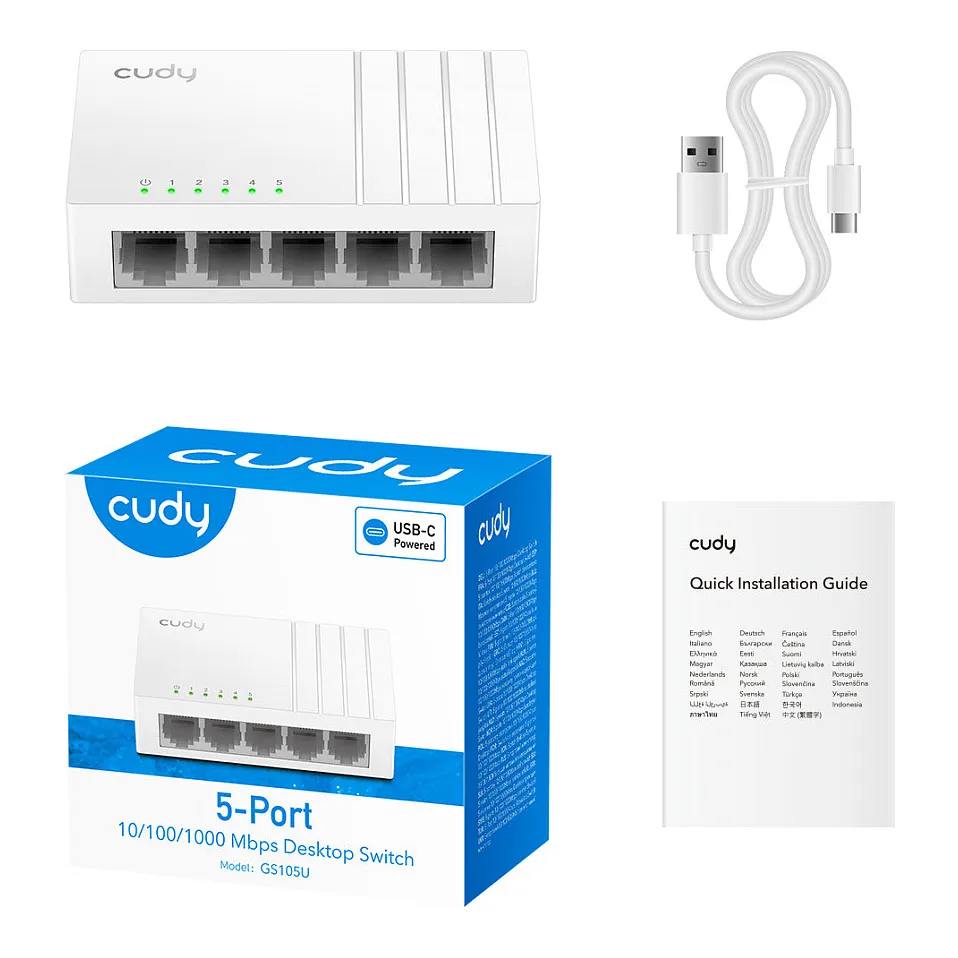

Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.
Expand Network for More Devices
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet
A mini Ethernet switch powered by USB-C, ideal for sharing a wired network on a desktop, wall, or in a distribution box.
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
USB Type-C ports quantity: 1
Power connector: USB
Network
Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Flow control support
Feature: VLAN support
Data transmission
Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2048 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.375 MB
Design
Product colour: White
Housing material: Plastic
Feature: Wall mountable
Power
Power source: USB
Feature: Power supply included
DC input voltage: 5 V
Power consumption (max): 2 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 88 mm
Depth: 52.5 mm
Height: 24 mm
Weight: 53 g
Packaging content
Cables included: USB Type-A to USB Type-C
Feature: Quick start guide
Packaging data
Package width: 92 mm
Package depth: 89 mm
Package height: 48 mm
Package weight: 124 g
