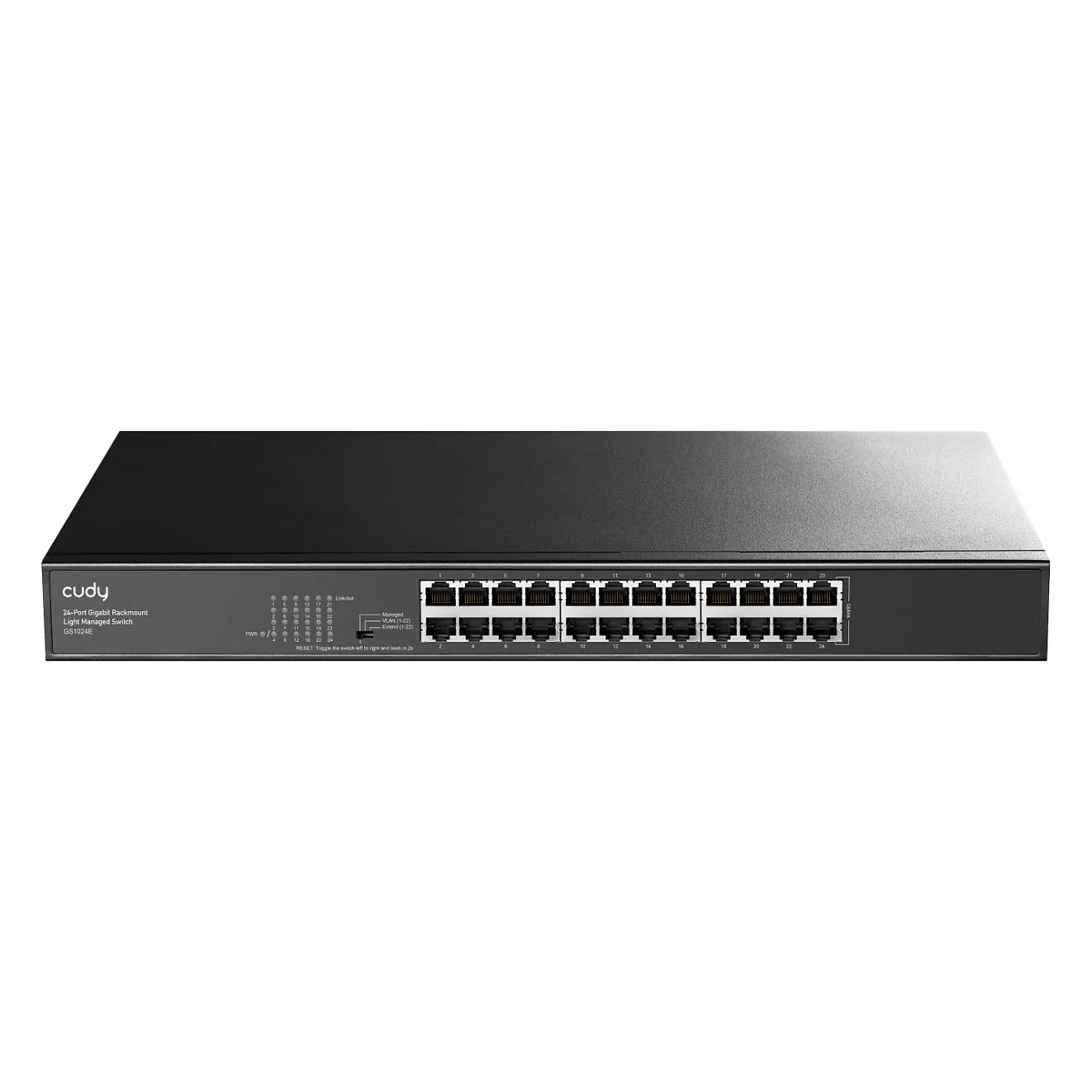

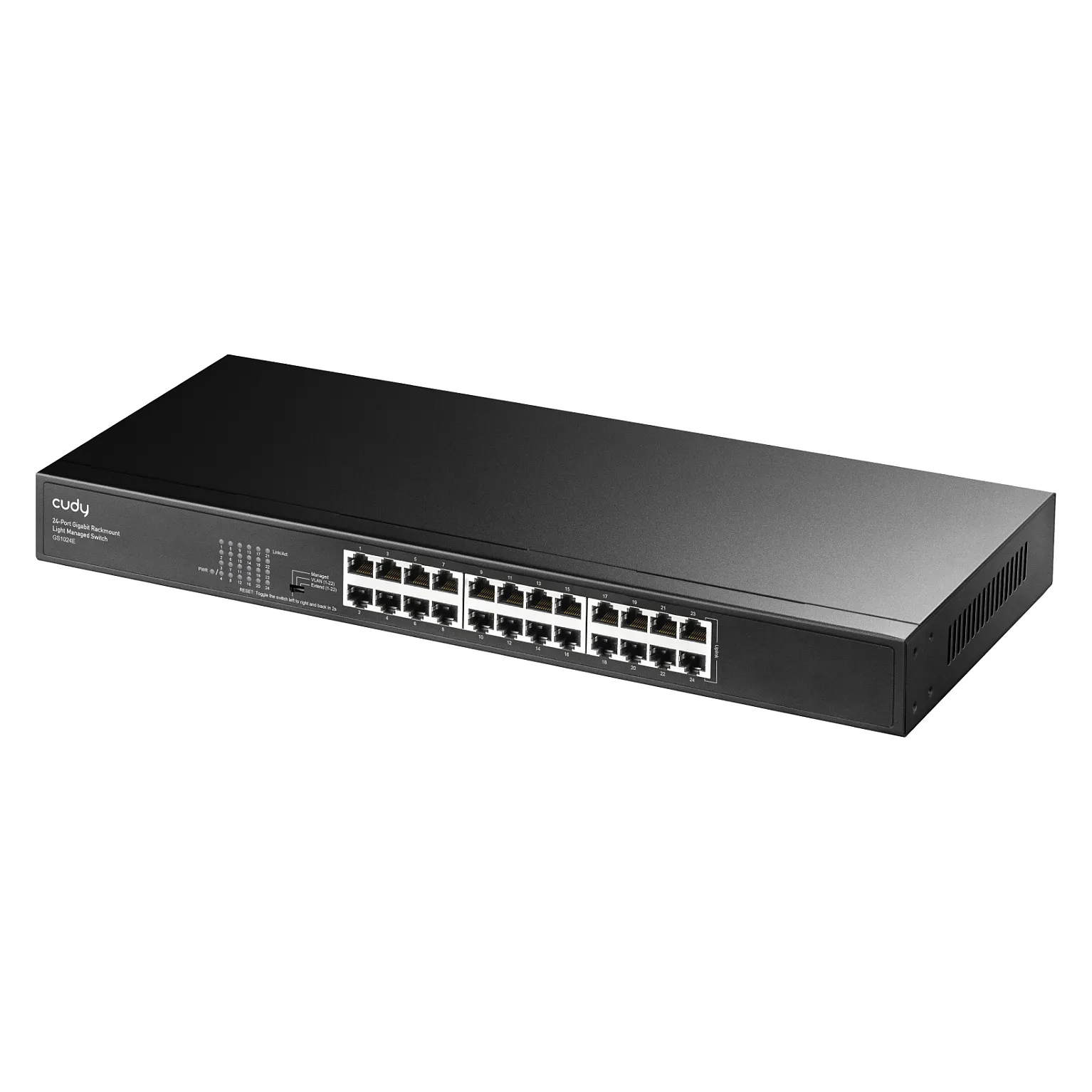

Cudy GS1024E. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3az, IEEE…. Power connector: AC-in jack. Rack mounting
802.1Q/MTU/Port-Based/Voice VLAN
802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.
DSCP/802.1p/Port-Based QoS
DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.
Essential Management Features
Link Aggregation
Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.
DHCP Snooping
Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.
IGMP Snooping
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention
Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.
Web Configuration and SNMP V1/V2
Management Made Easy
Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.
Managed/VLAN/Extend Preset Modes
Basic VLAN Mode
Turn off management features and prevent downlink ports to communicate with each other, improving network security.
Extend Mode
Turn off management features and prolong the transmission to a maximum of 250 meters and simplify installation. These ports’ speed will be capped at 10 Mbps.
Versatile Scenarios
Office Network
Mall Wi-Fi
Surveillance
ISP FTTB
Switch type: Managed
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

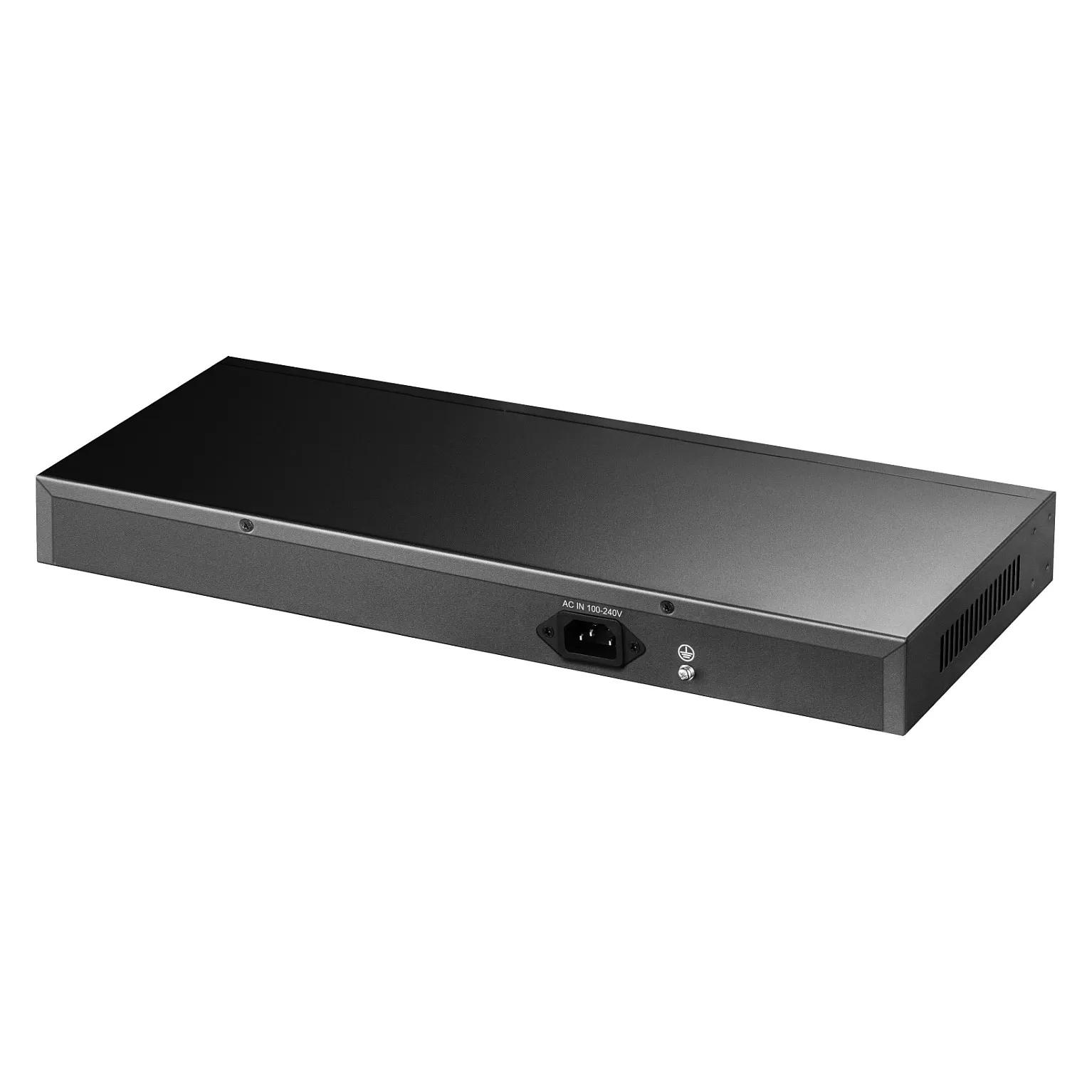

Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Port mirroring
Feature: Flow control support
Feature: VLAN support
Number of VLANs: 4096
Data transmission
Switching capacity: 48 Gbit/s
Forwarding rate: 35.712 Mpps
MAC address table: 8192 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.5 MB
Security
DHCP features: DHCP snooping
Feature: IGMP snooping
Design
Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Link, Power, Speed
Performance
Flash memory: 8 MB
Power
Power source: AC
Feature: Power supply included
AC input voltage: 90 – 260 V
AC input frequency: 50/60 Hz
Power consumption (max): 11 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 440 mm
Depth: 180 mm
Height: 44 mm
Weight: 1.69 kg

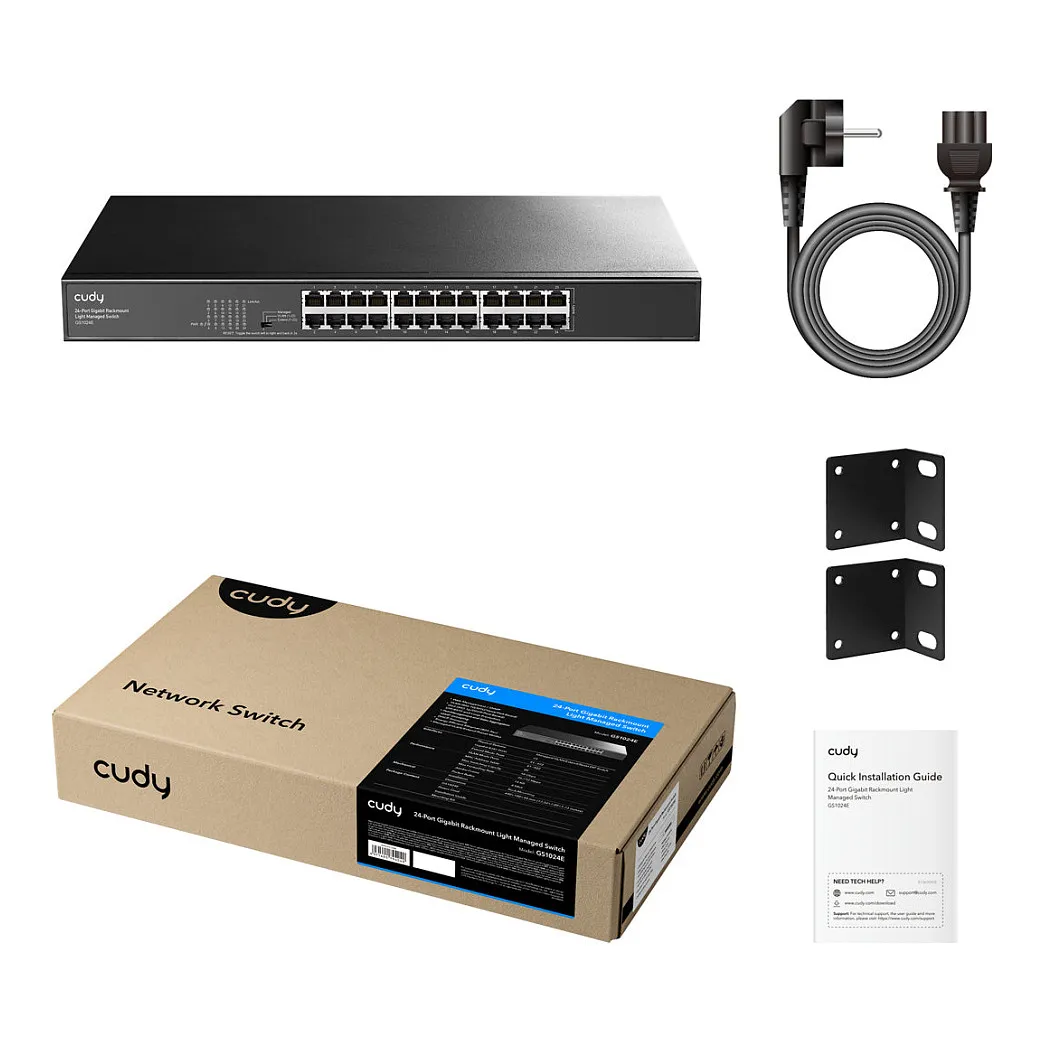

Packaging content
Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit
Packaging data
Package width: 487 mm
Package depth: 267 mm
Package height: 84 mm
Package weight: 2.39 kg
