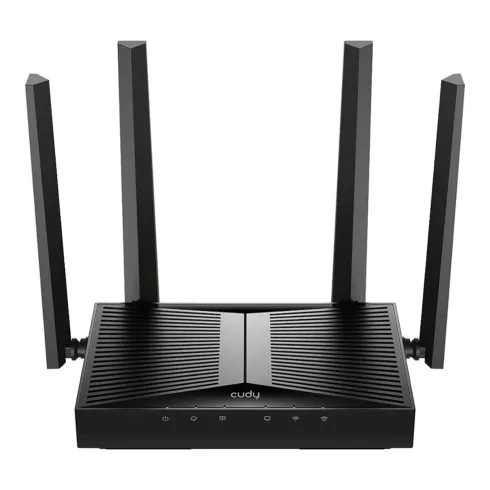

Cudy WR3600H. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 2882 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP. Security algorithms: WPA, WPA2, WPA3. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WAN, WLAN
A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed, one 2.5G WAN, one 2.5G LAN and three Gigabit LAN, catering to multi-Gig internet access, gaming, and entertainment scenarios.
WAN connection
Feature: Ethernet WAN
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 2882 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band): 688 Mbit/s
WLAN data transfer rate (second band): 2882 Mbit/s
Modulation: 4096-QAM
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Feature: Wall mountable
LED indicators: LAN, Power, WAN, WLAN
Product type: Tabletop router
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC)

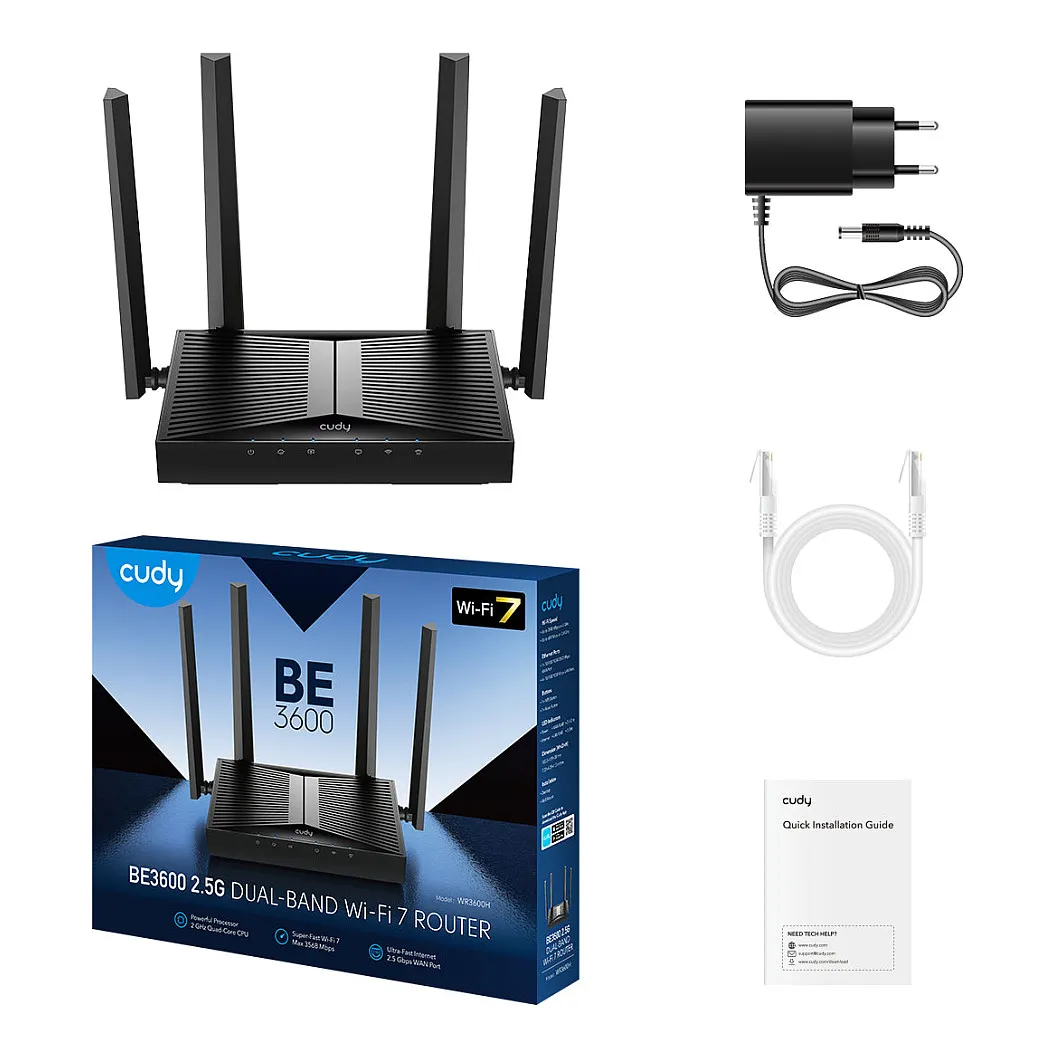

Packaging content
Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide
Antenna
Antenna design: External
Antenna type: 2×2
Antenna gain level (max): 5.5 dBi
Antennas quantity: 4
Features
Feature: Built-in processor
Processor architecture: ARM Cortex A7
Processor frequency: 2000 MHz
Processor cores: 4
Internal memory: 512 MB
Internal memory type: DDR3L
Flash memory: 128 MB
Power
Power source type: DC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 183.3 mm
Depth: 109 mm
Height: 38 mm
Weight: 332 g
Packaging data
Package width: 330 mm
Package depth: 256 mm
Package height: 60 mm
Package weight: 762 g
Feature: Ethernet WAN
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN data transfer rate (max): 2882 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (first band): 688 Mbit/s
WLAN data transfer rate (second band): 2882 Mbit/s
Modulation: 4096-QAM
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Feature: Wall mountable
LED indicators: LAN, Power, WAN, WLAN
Product type: Tabletop router
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC)
Packaging content
Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Quick installation guide
Antenna
Antenna design: External
Antenna type: 2×2
Antenna gain level (max): 5.5 dBi
Antennas quantity: 4
Features
Feature: Built-in processor
Processor architecture: ARM Cortex A7
Processor frequency: 2000 MHz
Processor cores: 4
Internal memory: 512 MB
Internal memory type: DDR3L
Flash memory: 128 MB
Power
Power source type: DC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 1 A
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 183.3 mm
Depth: 109 mm
Height: 38 mm
Weight: 332 g
Packaging data
Package width: 330 mm
Package depth: 256 mm
Package height: 60 mm
Package weight: 762 g
