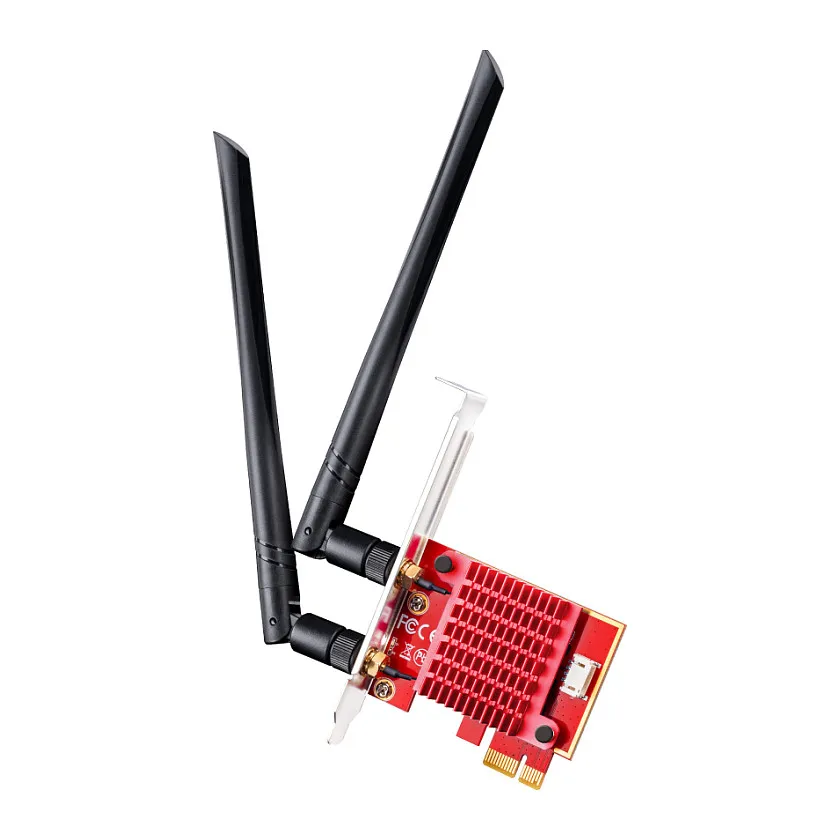

Cudy WE3000S. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2400 Mbit/s, Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi 6E delivers ultra-fast speeds up to 2402 Mbps on the 6/5 GHz band and 574 Mbps on 2.4 GHz. Compared to Wi-Fi 5, it offers up to 1.7× faster performance for smoother streaming, faster downloads, and more stable connections.
Advanced Bluetooth 5.3
Bluetooth 5.3 delivers up to 2× faster speeds and 4× wider coverage than Bluetooth 4.2, enabling stable connections for more devices such as game controllers, headphones, and keyboards, for a smoother and more responsive experience.
Windows 10/11 64-bit Compatible
The device is usually driver-free on newer Windows 10/11 64-bit systems, while the driver is available for download on the Cudy official website.
Latest Wi-Fi Encryption
With WPA3, the latest Wi-Fi encryption protocol, your network is better protected against brute-force attacks for safer connections.

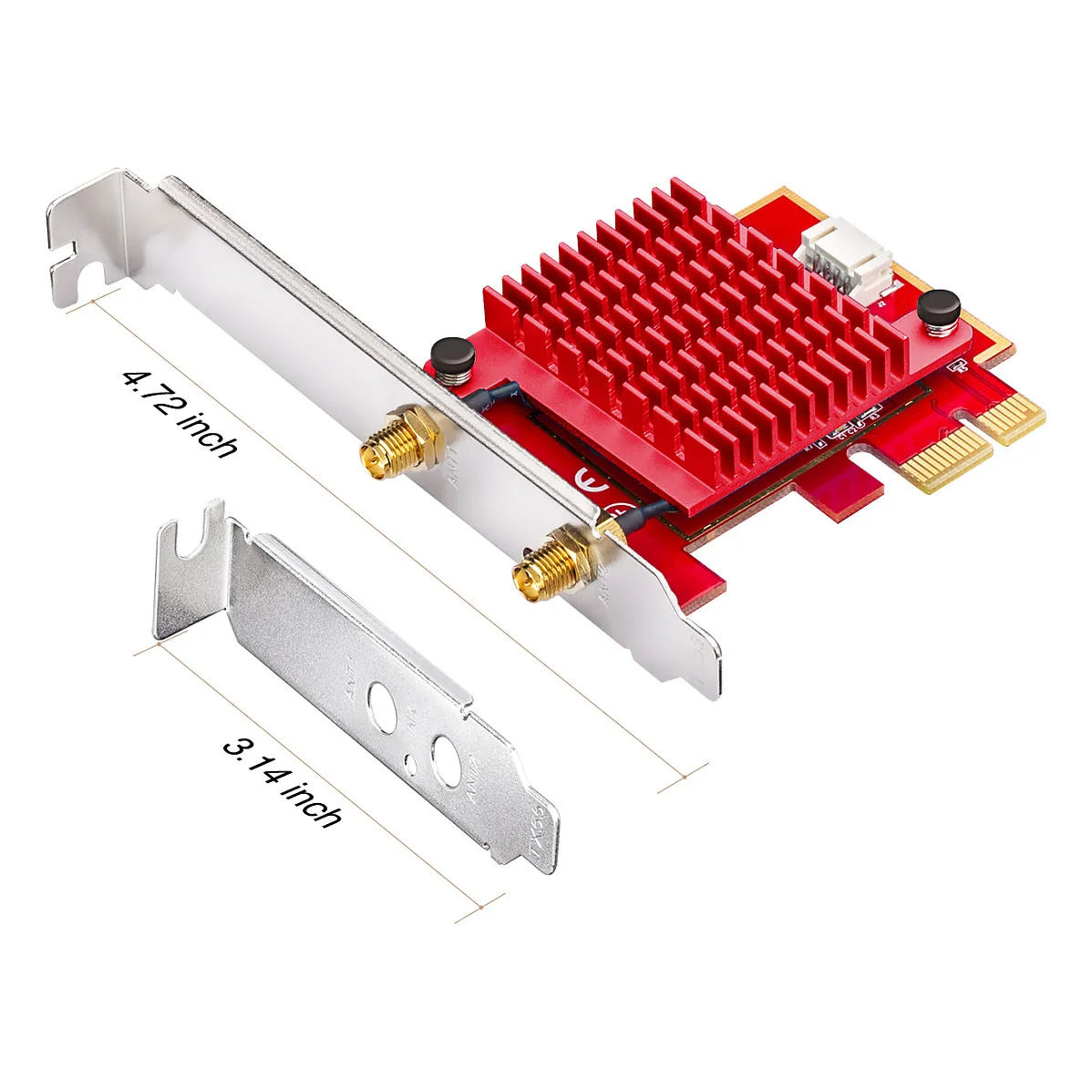

Standard and Lower Brakets Included
Suitable for both standard tower PCs and low-profile HTPC builds. Install the antennas and position them vertically facing your router for the optimal signal quality.
Compatible with Mainstream Motherboards
The Wi-Fi and powering requires a PCI-E 1x, 4x, 8x, or 16x slot on the motherboard. The Bluetooth function requires a USB 9-Pin connector on the motherboard.
Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN / Bluetooth
PCI Card form factor: Full-height (low-profile)
Network
Maximum data transfer rate: 2400 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported: 574,2402 Mbit/s
Spread spectrum method: OFDMA
Security algorithms: WPA3, WPA, WPA2
Feature: Bluetooth
Bluetooth version: 5.3
LAN controller: Intel AX210
Design
Component for: PC
Feature: Internal
Antenna: Yes
Antenna design: External
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi
System requirements
Windows operating systems supported: Windows 10, Windows 11
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 70 mm
Depth: 45 mm
Height: 20 mm
Weight: 116 g

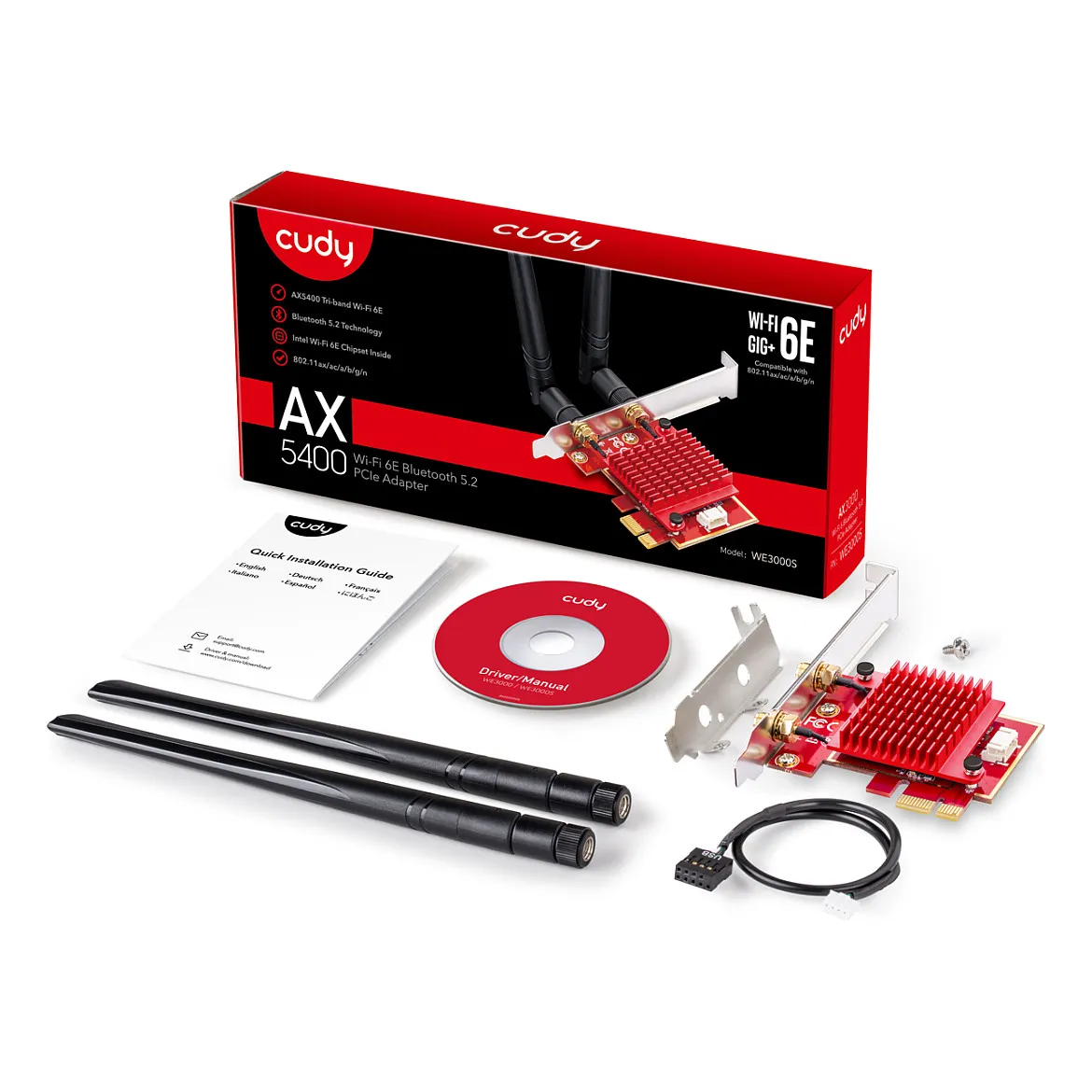

Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Bluetooth header cable
Feature: Quick installation guide
Other features
Bracket height: Low-Profile (LP) / Full-Height (FH)
