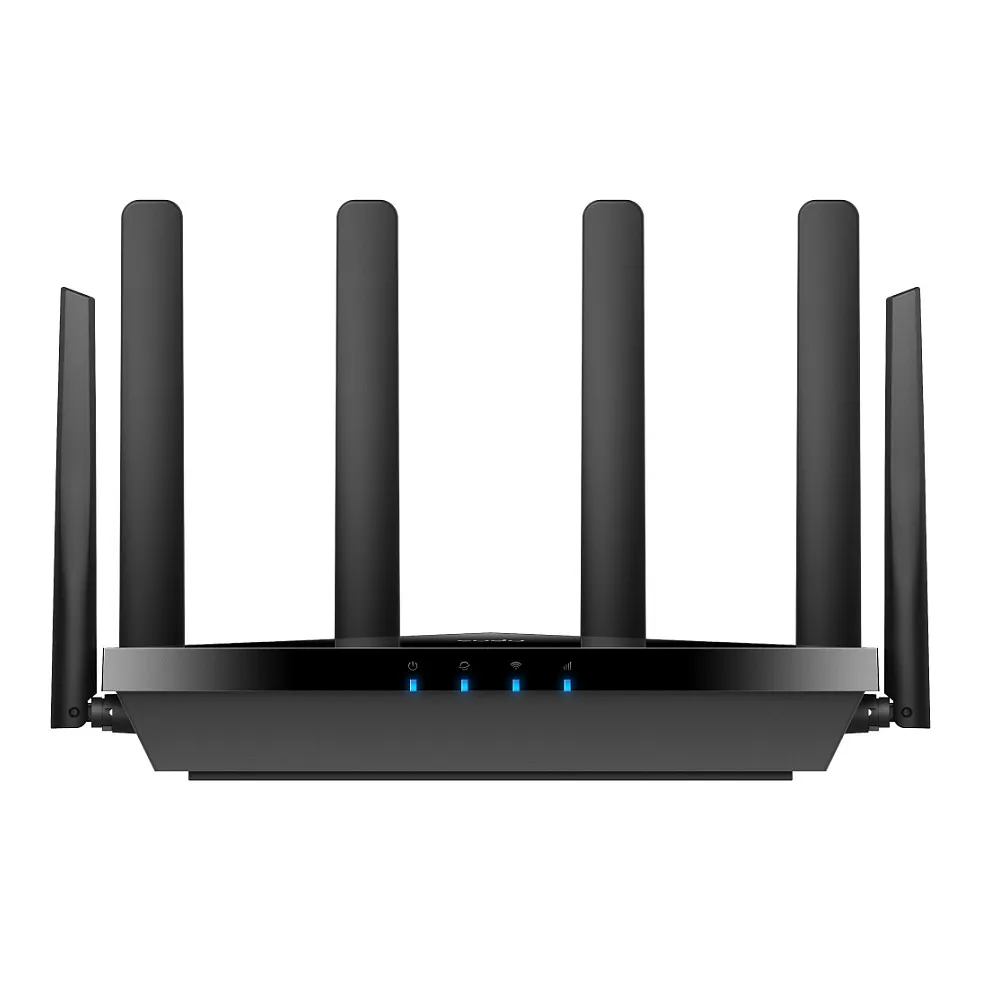

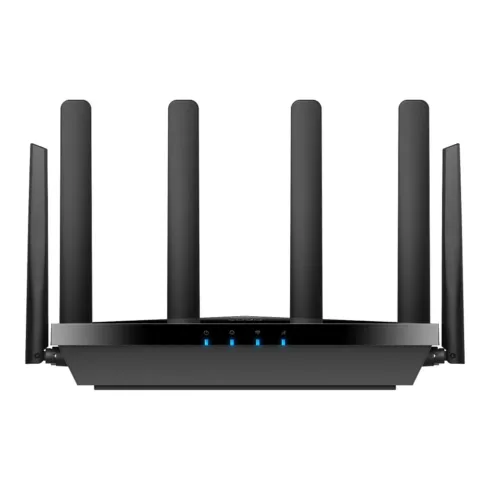

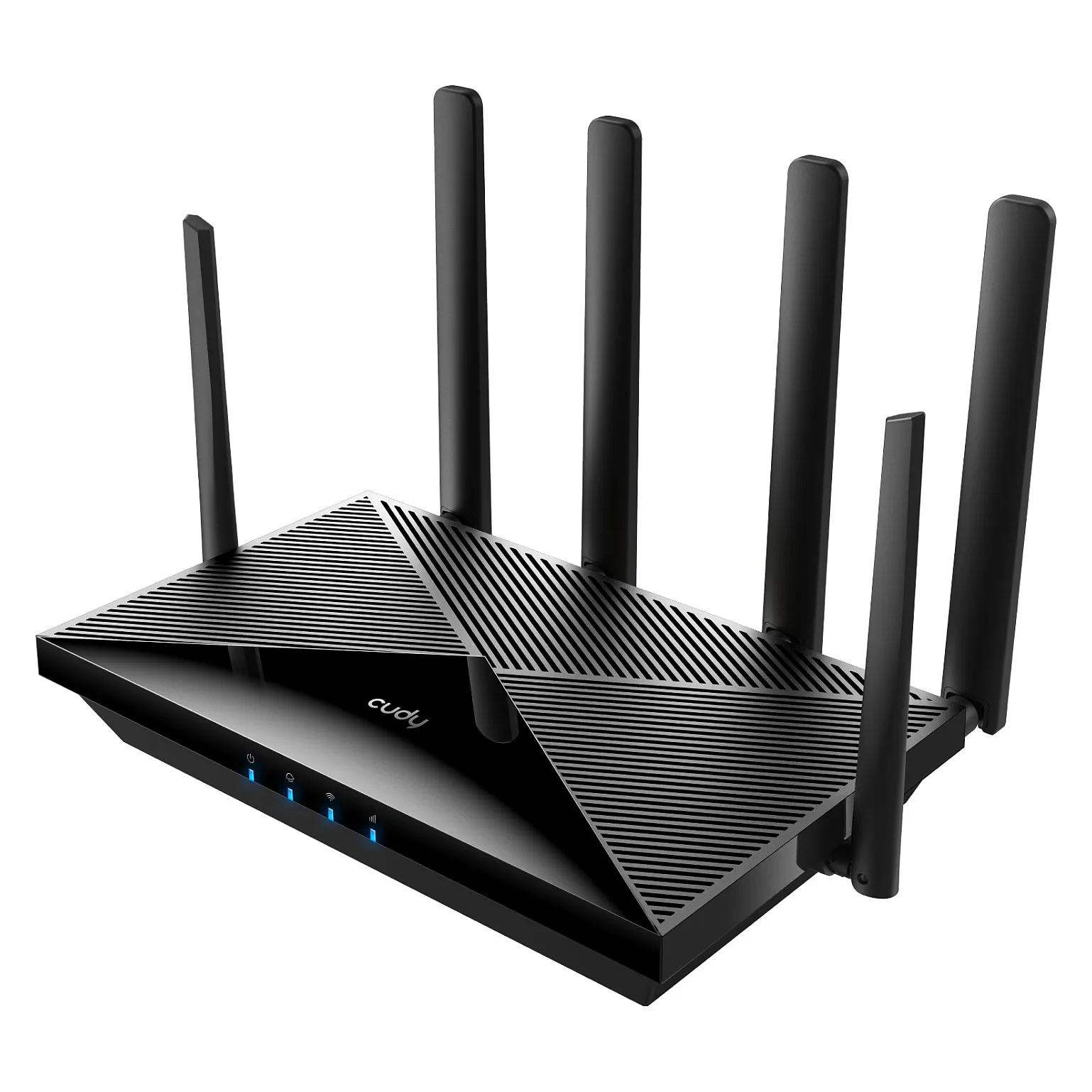

Cudy P5. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000,10,100 Mbit/s, VPN server: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier. Mobile network generation: 5G, 3G standards: WCDMA, 4G standard: LTE-FDD. Security algorithms: WPA, WPA2, WPA3
Qualcomm X62 5G modem, enabled by Advanced AI features and a 4nm process chip, provides data downlink speed up to 3.4 Gbps.
Dual SIM Slots
Dual SIM slots provide redundancy and keep the device always online.
Backup and Detachable Antennas
WAN/Cellular1/Cellular2 give you triple backups for a reliable network. To enhance signal quality, you may replace cellular antennas with extension antennas.
Online Redundancy
Dual SIM slot redundancy and WAN/Cellular backup provide high redundancy for the network.
Band Lock
4G/5G band lock makes it possible to lock the 4G working frequency to one or several bands to maintain operation stability.
TTL Settings
Support manual sets TTL values to meet ISP’s requirements. Support set IPv4 TTL and IPv6 HL Values.
Advanced DNS Security
Encrypt your web browsing lookup with trustful partners, preventing eavesdropping and manipulation of DNS data via a man-in-the-middle attack.
A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features complete Qualcomm solutions, dual SIM slots, and a high-capacity AX3000 WiFi 6.
Feature: Ethernet WAN
Feature: SIM card slot
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 2402 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Modulation: 1024-QAM
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000,10,100 Mbit/s
Feature: Port forwarding
Feature: Port triggering
Feature: Dynamic DNS (DDNS)
Number of guest networks (2.4 GHz): 1
Number of guest networks (5 GHz): 1
VPN server: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
VPN support: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
3G standards: WCDMA
4G standard: LTE-FDD
5G standard: Sub6 SA/NSA
5G bands supported: 6000 MHz
SIM card type: NanoSIM
Feature: Short Message Service (SMS)

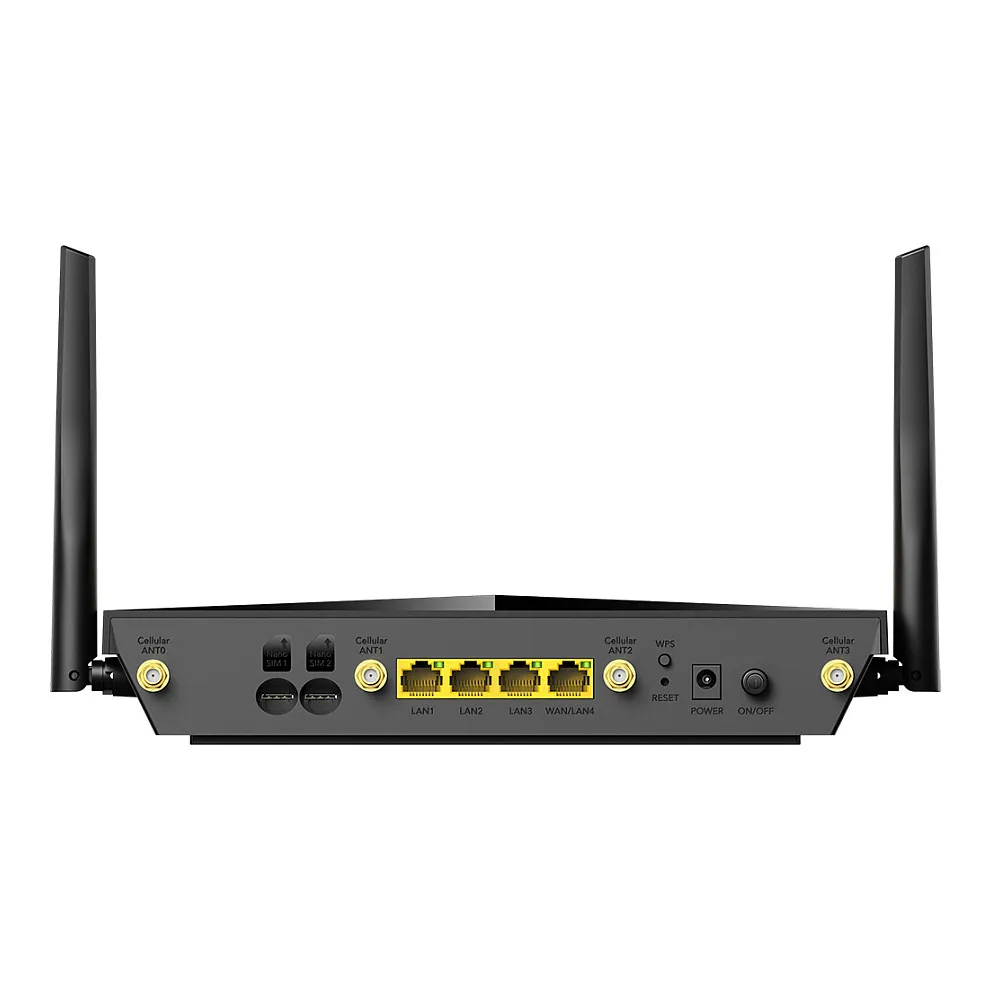

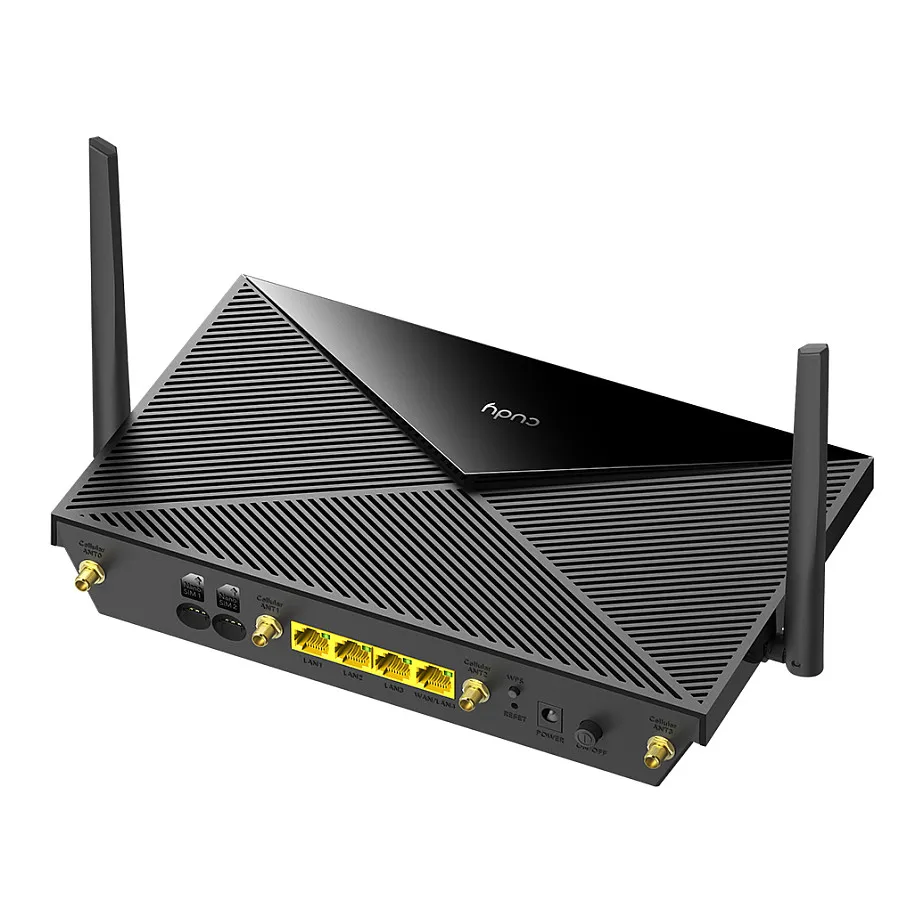

Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: DC-in jack
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: WPS push button
Feature: MU-MIMO technology
Feature: MIMO
Security
Security algorithms: WPA, WPA2, WPA3
Feature: Firewall
Feature: Guest access
Feature: Filtering
Feature: MAC address filtering
Feature: IP address filtering
Feature: URL filtering
Feature: IGMP snooping
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Feature: Indication light
Product type: Tabletop router

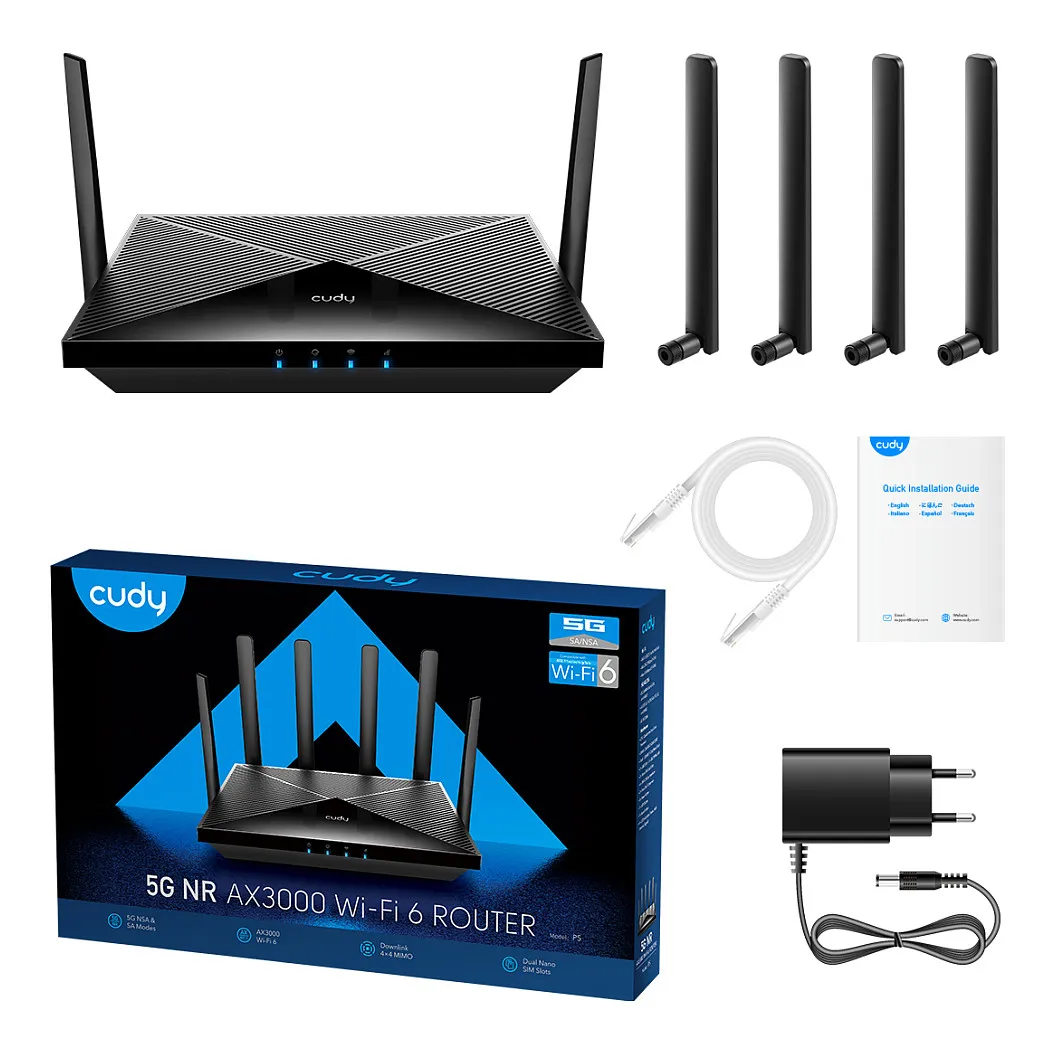

Packaging content
Cables included: LAN (RJ-45)
Feature: AC adapter included
Feature: Antenna included
Feature: Quick installation guide
Antenna
Antenna design: External
Antennas quantity: 6
Feature: Detachable antenna(s)
Features
Feature: Built-in processor
Processor manufacturer: Qualcomm
Processor frequency: 1000 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 128 MB
Power
Power source type: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Output voltage: 12 V
Output current: 2.5 A
Feature: External power adapter
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 95%
System requirements
Browser supported: Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista
Linux operating systems supported: Yes
Mac operating systems supported: MacOS
Feature: Mac compatibility
Weight & dimensions
Width: 152.5 mm
Depth: 253 mm
Height: 48.2 mm
Weight: 670 g
Packaging data
Package width: 393 mm
Package depth: 250 mm
Package height: 60 mm
Package weight: 1.23 kg
Package type: Box
